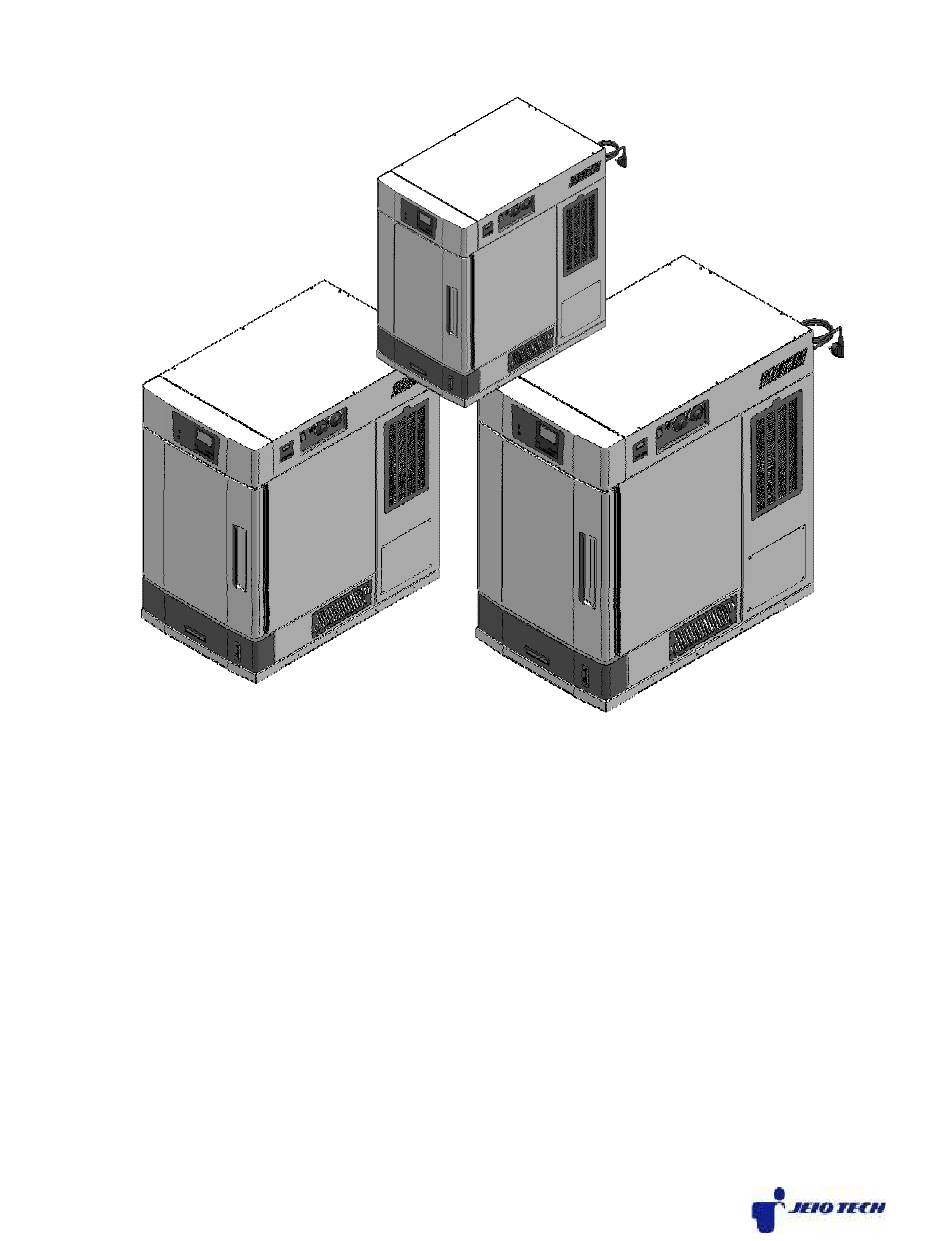

- Page 1 PERATING ANUAL TEMPERATURE CHAMBER (TABLE TOP MODEL) TC-ME-025/065/100 MANUAL NO.: 00HAA0001203 (Rev 1.0)
- Page 3 Thank you for purchasing Jeio Tech’s products. Jeio Tech Co., Ltd. is committed to customer service both during and after the sale. If you have questions concerning the operation of your unit or the information in this manual, contact our Sales Department. If your unit fails to operate properly, or if you have questions concerning spare parts or Service Contracts, contact our Service Department.
- Page 4 Disclaimer Jeio Tech Co., Ltd. is committed to a continuing program of product development and improvement, and reserves the right to change information, such as specifications, appearance, and dimensions, described in this document without notice.
- Page 5 1.1 How to use the Manual 1.1.1 Introduction 1.1.2 Chapter summary 1.1.3 Model number nomenclature 1.2 Safety Notice 1.3 Symbols used in this Manual 1.3.1 Signal word panels 1.3.2 Safety symbols 1.3.3 Miscellaneous none safety symbols used in manual 1.4 Where to Locate Safety Labels on the Temperature chamber 1.4.1 TC-ME/PE-025/065/100 1.5 Precautions for Temperature chamber 1.5.1 Warning statements...
-
Page 6: Table Of Contents
2.0 Functional Description 2.1 Introduction 2.1.1 Field of Application 2.1.2 Applications 2.2 Features 2.2.1 Control range of Temperature & Humidity 2.2.2 Elegant design 2.2.3. Uniformed distribution of temp. & humid.(Up-down flow type) Designed for enhanced user’s convenience 2.2.4. ---------------------------------------------- 17 2.2.5. - Page 7 4.1 Controller ---------------------------------------------------------------------------------- 38 4.1.1 Name and Function ------------------------------------------------------------------------------- 38 4.2 Controller Operation ----------------------------------------------------------------- 40 4.2.1. FIX Run -------------------------------------------------------------------------------------------------- 40 4.2.1.1. FIX Control -------------------------------------------------------------------------------------------- 40 4.2.1.2. FIX Display -------------------------------------------------------------------------------------------- 41 4.2.2 PROG Mode -------------------------------------------------------------------------------------------- 42 4.2.2.1. PROG Control --------------------------------------------------------------------------------------- 42 4.2.2.2 PROG Display ---------------------------------------------------------------------------------------- 44 4.2.3.
- Page 9 1.0 Safety 00HAA0001203 (Rev 1.0)
- Page 10 This manual is intended for individuals requiring information about the use Temperature chamber. Use this manual as a guide and reference for installing, operating, and maintaining your Jeio Tech Temperature chamber. The purpose is to assist you in applying efficient, proven techniques that enhance equipment productivity This manual covers only light corrective maintenance.
- Page 11 If there is any question of the safety of a procedure please contact Jeio Tech before starting or stopping the equipment.
- Page 12 1.3 Symbols used in this Manual The following signal word panels, safety symbols and non safety symbols are used to alert you to potential personal injury hazards or information of importance. Obey all safety messages that follow these symbols to avoid possible personal injury or death. 1.3.1 Signal word panels Signal word panels are a method for calling attention to a safety messages or property damage messages and designate a degree or level of hazard seriousness.
- Page 13 1.3.2 Safety symbols Safety symbols are graphic representations—of a hazard, a hazardous situation, a precaution to avoid a hazard, a result of not avoiding a hazard, or any combination of these messages—intended to convey a message without the use of words. The following safety symbols are used in this manual. Mandatory Prohibition Read manual...
- Page 14 1.3.3 Miscellaneous none safety symbols used in manual The following graphic representations are intended to convey a message without words or to bring your attention to important information about the use of the incubated shaker or a feature. European Union electrical directive Earth ground compliance...
- Page 15 1.4 Where to Locate Safety Labels on the Temperature chamber The safety labels are attached to the temperature chamber to provide important information about potential hazards and how to avoid them. All users must read this operating instruction carefully to operate the product properly.
- Page 16 1.5 Precautions for Temperature chamber Our Chamber is designed to provide safe and reliable operation when installed and operated within design specifications. Make sure you read and understand all instructions and safety precautions listed in this manual before installing or operating your unit. If you have any questions concerning the operation of your unit or the information in this manual, contact our Sales Department.
- Page 17 1.5.2 Caution statements Do not use doors, handles or knobs to lift or stabilize the unit. Do not place heavy objects on the power cord. Do not put the chamber on the power cord. Do not make the machine wet while cleaning. Do not pour water or put liquid on the chamber when cleaning the unit.
- Page 18 1.6 Responsibility Our chambers are constructed for maximum operator safety when used under standard operating conditions and when recommended instructions are followed in the maintenance and operation of the machine. All personnel engaged in the use of the machine should become familiar with its operation as described in this manual.
- Page 19 1.6.2 Operator responsibility The operator’s responsibility does not end with efficient experimentation and production. The operator usually has the most daily contact with the equipment and intimately knows its capabilities and limitations. Plant and personnel safety is sometimes forgotten in the desire to meet incentive rates, or through a casual attitude toward laboratory equipment formed over a period of months or years.
- Page 20 If you believe that your chamber has a defect that could cause injury, you should immediately discontinue its use and inform Jeio Tech or local authorized distributor. The principle factors that can result in injury are failure to follow proper operating procedures (i.e.
- Page 21 2.0 Functional Description 00HAA0001203 (Rev 1.0)
- Page 22 2.1 Introduction 2.1.1 Field of Application 2.1.2 Applications Temperature in the following table show mere part of applications of our chamber. And there are more applications in the market. Temp(°C) Humi(%RH) Sample/Specimen Test purpose Remark Temperature -10~40 Raps diesel characteristic -20, 0, 20 Polymer battery Reliability...
- Page 23 Constant temperature Navigation and humidity test Pharmaceutical Decay/ Reliability test Film Stress test Heater in electric mat Stress test Electric material Stress test Part of mobile phone Accelerated test Gas sensor Wet proof/Heat test Construction material Long term storage Communicating set Durability test Parts for automobile Stress test...
-
Page 24: Features
2.2 Features 2.2.1 Control range of Temp. & Humid. (TH Only) Temp. Range with humid. : 15~90°C Full range : 20~95%rh - 45~75% RH at 15 - 40~95% RH at 20 - 20~95% RH at 40~85 - 20~90% RH at 90 2.2.2 Elegant design In order to differentiate against the other existing TH chambers, the excellent design is selected. -
Page 25: Uniformed Distribution Of Temp. & Humid.(Up-Down Flow Type)
2.2.3. Uniformed distribution of temp. & humid.(Up-down flow type) Sirocco fan adopted let it maintain the optimal air flow inside of chamber with an appropriate air velocity to get the suitable temp & humid in the chamber. Opening the door will activate the automatic stop function of heater and fan to prevent from contact with an external air. -
Page 26: Construction
2.3 Construction... - Page 27 (1) Controller All functions are shown on the LCD Display screen with graphic & characters. Easy operation to push the control buttons. All the status of operation is monitored by graphic mode. Total Max. 100 programmable segments Max. 30 patterns supported by each segment. (2) Recorder(Optional) - 6 points, can display, record and store all temperature &...
- Page 28 (10) Electric Circuit Breaker In order to protect the user, sample & unit, the suitable electric circuit breaker is adopted to meet the unit’s electrical requirements and automatically cut off the electrical power in case a short circuit, or an electric leakage. (11) Communication Port - RS-232 Communication port is a default setting.
-
Page 29: Unit Other Components
2.3.1. Unit other components Evaporator The existing evaporators use the aluminum pins, so it has worry for corrosion and thermal efficiency decreasing. However, our product is removed the corrosion problem and progressed the refrigeration ability by using the evaporator that uses the copper pins. -
Page 30: Stand (Option)
2.3.2. STAND (OPTION) - Table top T/H STAND SIZE Usage W(mm) D(mm) H(mm) 25L 1 stage 65L 1 stage 100L 1 stage 1002 25L 2 stages 1115 65L 2 stages 1210 2.3.3 Max. Number of the mountable shelves/distance between shelves. The distance of each groove on the shelf level adjustor is 20mm. -
Page 31: How To Use Water Tank
2.3.4 How to use water tank(TH-ME-Type) Water Tank; name and function 1. Gutters: Condensed water vapor will be supplied back to the water Tank. 2. Inlet: Pouring water into the water tank by using the funnel. See the figure left. 3. -
Page 33: Installation
3.0 Installation 00HAA0001203 (Rev 1.0) -
Page 34: Uncrating And Inspecting The Unit
After you have received your Jeio Tech product, inspect the shipping container carefully for any damage that may have occurred during shipping. Report any damage to the carrier and to your local Jeio Tech office or the distributor from which the unit was purchased. If the container and packing materials are in re-usable condition, save them for reshipment if necessary. -
Page 35: Phase 1: Removing The Outer Container
3.1.2.1 Phase 1: Removing the outer container Figure 3.2 Figure3.3 Step1: Remove the staples holding the vinyl cover to the wooden crate with a straight blade screwdriver. Step2: Lift the vinyl cover off the wooden crate. Step3: Inspect the wooden container top for signs of moisture infiltration around the screws. Step4: Remove the fourteen (14) #7 x 50mm Bugle head screws with a 3Pt Phillips screwdriver. - Page 36 Figure 3.4 Step6: Remove hex head lag screws holding the container sides by using wrench or spanner See Figure 3.4. Figure 3.5 Step 7: Remove the crate front from the crate supports at points A, B and C using a hammer and/or crowbar.
- Page 37 Figure 3.6 Step 8: Remove the crate supports from the crate back at points D, E, and F using a hammer and/or crowbar. See Figures 3.5 and 3.6. PANEL IS HEAVY! Dropping crate panel can cause minor or moderate personal injury. To avoid injury have assistance in holding and removing the crate panel.
-
Page 38: Phase 2: Removing The Unit From Wooden Crate
3.1.2.2 Phase 2: Removing the unit from wooden crate Temperature chamber is shipped with the caster feet in the locked position. Additionally, blocking is used to lock the casters and the unit in place. Use the following procedure to remove the unit from the wooden crate using a forklift. -
Page 39: Unit Components
Also, check the specifications of the unit and character of the unit. If you didn’t receive one or more of the components or if the model is incorrect, contact your local Jeio Tech office, or the distributor from which the unit was purchased. -
Page 40: Preparing The Installation
3.3 Preparing the installation 3.3.1 Space requirements Temperature chamber is manufactured as the size of Figure 3.10. It is essential the unit to be situated in an area where there is minimum space 1.0m for the front-ward due to 650mm in width of the door. Figure 3.10 Items W(mm) - Page 41 1. The surface where you place the unit should be smooth, level and sturdy not to be shocked or fell down. 2. The unit requires a minimum space more than 1.5m from the lighting device and more than 70cm from the wall. 3.
-
Page 42: Environmental Setting
3.3.2 Environmental setting The unit can be operated properly under the following environmental conditions for a long time running without any problem. No direct sunlight on incubated shaker Ambient temperature: 18 C to 30 Relative humidity not to exceed 85% Altitude not to exceed 2000m (6,562 feet) Keep incubated shaker away from high frequency noise produced by equipment and/or machinery, such as electrical distribution pa... -
Page 43: Locking/Unlocking Casters & Leveling The Unit
3.4 Locking/Unlocking Casters & Leveling the unit The caster assembly allows for easy movement, locking and leveling of the unit. For proper agitation, it requires the unit to be level side to side and front to back. Use the following instructions to ensure the unit is level. -
Page 44: Connecting Drain Hose
3.5 Connecting Drain hose 2 Condensate drains are installed on the rear side of the unit. These condensate drains are designed, one for eliminating any water build up from the inside of chamber heats and cools, the other for escaping water overflowed from the inside of chamber. -
Page 45: Operation
4.0 OPERATION 00HAA0001203 (Rev 1.0) -
Page 46: Controller
4.1 Controller 4.1.1 Name and Function 1 : LCD Display Check and monitor unit’s operation through the display 2~6: Control button To start and stop operation. To move from running display to MAIN MENU display. To move a display to another display such as PARAMETER setting display.(vertical movement) To move previous or next screen in same category. - Page 47 To move left or right in MENU or Parameter setting display.(horizontal movement) To move digit point during modifying set value. To move down in MENU or Parameter setting display. To decrease value of Arabic numbers or to change text To move up in MENU or Parameter setting display. To increase value of Arabic numbers or to change text.
-
Page 48: Controller Operation
4.2 Controller Operation 4.2.1. FIX Run 4.2.1.1. FIX Control FIX Run 1. Switch On the Main Power Switch. 2. How to Control : Press the key, then move to Temperature and Humidity input display. Input Temperature (Use UP, DOWN, SHIFT KEY to input set value) Press key, then move to Fix Stop standby screen. -
Page 49: Fix Display
Switching display between FIX and PROG Press SET KEY for 6 seconds then, enter to MAIN MENU 2 screen. Press SET KEY for 3 seconds or no Key for 60 seconds to go back to operating display. SET FUNCTION OPER MODE: FIX/PROG(Use key to choose mode) 4.2.1.2. -
Page 50: Prog Mode
4.2.2 PROG Mode 4.2.2.1. PROG Control PROG Mode 1. Turn on Main Power Switch. 2. Set each SEGMENT and PATTERN for PROG RUN PROGRAM EDITING → PROGRAM → → EDIT SET → PATTERN EDIT 1. Set value of temperature, Humidity, and running time at each SEGMENT. (Input the value by UP, DOWN, SHIFT KE, SET KEY) PT NO : Set PATTERN No. - Page 51 PROG RUNNING 1. Press key and PROG STOP screen shows. 2. Press key to activate number of PT No. Once it is activated, start segment can be set. ex) If you set PTNO 2, PATTERN starts from 02. 3. Press key to finish PTNO set.
-
Page 52: Prog Display
4.2.2.2 PROG Displays PROG STOP PROG STOP PROG mode : Control temperature and humidity with program. PTNO : It indicates PATTERN number which is set. Press SET KEY to set. SEGNO : It indicates number of start SEGMENT. READY : It indicates stand-by status. Unit can starts or stops running by pressing RUN/STOP key. -
Page 53: Main Screen Set And Control
4.2.3. MAIN Screen set and control 4.2.3.1. COMM SET COMM SET Press KEY for 6 seconds to move to MAIN MENU 2. Switch to the COMM SET setting screen. ADDRESS SET ADDR : Input ADDRESS(1 ~ 99) Maximum 9units can be controlled with RS-485 interface by PC. Set protocol as PCLK1. -
Page 54: Reserve
4.2.3.2 RESERVE MAIN MENU(RESERVE) → RESERVE → NOW : Current Year, Month, Day, and Time. RUN DATE : Delay on Year, Month, Day, and Time. SET DATE : Current Year, Month, Day, and Time of NOW DATE. RESERVE : ON – set or OFF – no delay on. 4.2.3.3 Graph MAIN MENU(GRAPH) →... -
Page 55: Setup Screen
4.2.4. SETUP Screen 4.2.4.1. Password SETUP(PASSWORD) Pres SET KEY for 6 seconds to move to MAIN MENU 2. Press SET KEY to move to PASSWORD screen. Go back to operating disply, press SET KEY for 3 seconds or NO KEY for 60 seconds. -
Page 57: How To Use Software
5.0 How to use Software 00HAA0001203 (Rev 1.0) -
Page 58: Initial Display
5.1. Initial display This is the initial display of SP790_Multi Monitoring program operated. It can make SP790 monitor maximum 30 units, easily up/download the program and control the saved data. Click left button to transfer the separate operating display. (figure. 1) Initial display... -
Page 59: Separate Operating Display
5.2. Separate operating display Consist of a condition information display and controlling buttons. Display current PV, SP values Controlling button Click the left button to transfer the initial display. Graph display (figure. 2) Separate operating display Menu -> graph: Set the displaying for graphs for individual units and save it or not Menu ->... - Page 60 Select the graphs saving or not and test periods on the below graph setting display Set the period for the graphs saving You can save the graphs. After checking the box, set files, set a files name and a saving route. (Figure 3) graph setting display...
-
Page 61: Program Setting Display
5.3. Program setting display You can up/download programs. Click the button; display the segment setting display. Click the button; display the pattern information setting display Click the button; display the time signal display. Click the button; upload the Pattern date for setting unit. Click the button;... - Page 62 You can make out segments for download and confirm the upload date on the below segment setting display. (Figure 5) Segment setting display You can set TS (time signal) and WAIT on the below TS & WAIT display ) Time signal setting display Figure 6...
- Page 63 You can set the condition of pattern for download on the below pattern information setting display. Set the indicating period for pattern graph. Set the conditions of the repeated pattern operating for download. setting display (Figure 7) Set pattern information 00HAA0001203 (Rev 1.0)
- Page 64 Set a pattern number and a unit for upload. (Figure 8) Upload pattern number setting display. On uploading the setting pattern to a PC, display the condition as below. (Figure 9) Uploading display...
- Page 65 Set a pattern number and a unit for download (Figure 10) Download pattern number setting display On downloading set pattern to a PC, display the condition as below (Figure 11) Downloading display 00HAA0001203 (Rev 1.0)
-
Page 66: Graph Display
5.4. Graph display You can convert files and analysis saved graphs. (Figure 12) Graph display Menu -> file -> open: open the saved graphic date. Menu -> file -> print: printing current display Menu -> view -> date view: display the Date View. Menu ->... - Page 67 (Figure 13) Graph setting display You can confirm current PV, SP, Date & Time on the below Date View display (Figure 14) Date View display 00HAA0001203 (Rev 1.0)
- Page 68 You can confirm total data of opened files on the below List View display. (Figure 15) List View display You can convert opened file data to Excel files on the below Excel files creation display. The converted Excel files will be saved at the same location as the opened file. (Figure 16) Excel file creating display...
-
Page 69: Accessories
6.0 Accessories 00HAA0001203 (Rev 1.0) -
Page 70: Accessories And Options List
6.1 Accessories and Options List Description Remark Recorder (6 points) Interface Converter (RS 485, Cable 5m) Interface Cable(5m) Warning Signal Lamp(flashing light) Wire shelf (for 25L) Wire shelf (for 65L) Wire shelf (for 100L) Perforated shelf (for 25L) Perforated shelf (for 65L) Perforated shelf (for 100L) Access port (dia.50mm) Access port (dia.80mm) -
Page 71: Appendix
7.0 Appendix 00HAA0001203 (Rev 1.0) -
Page 72: Technical Specification
7.1 Technical Specification 1) All specifications are under ambient temperature 20 (68 ), no load 2) Technical data (according to DIN 12880, IEC 60068) 3) Up to 98% of the set value → Recommended ambient temperature: +20 (68 ) -
Page 73: Warranty
If damage occurs in an appearance by organic solvents such as thinner, benzene. If damage occurs without following to notice in the manual. If damage occurs by fixing the equipment by any person who is not related with Jeio tech. If damage occurs by a mistake of a customer. -
Page 74: Technical Assistance
Seoul, Republic of Korea (153-803) TEL: +82 (0)2 - 2627 - 3816 FAX: +82 (0)2 - 3143 - 1824 http://www.jeiotech.com E-mail: overseas@jeiotech.com U.S.A. Jeio Tech, Inc. 1-A Gill Street Woburn, MA 01801 USA TEL: +1 781-376-0700 FAX: +1 781-376-0704 E-mail: nasupport@jeiotech.com China RM107, No.
