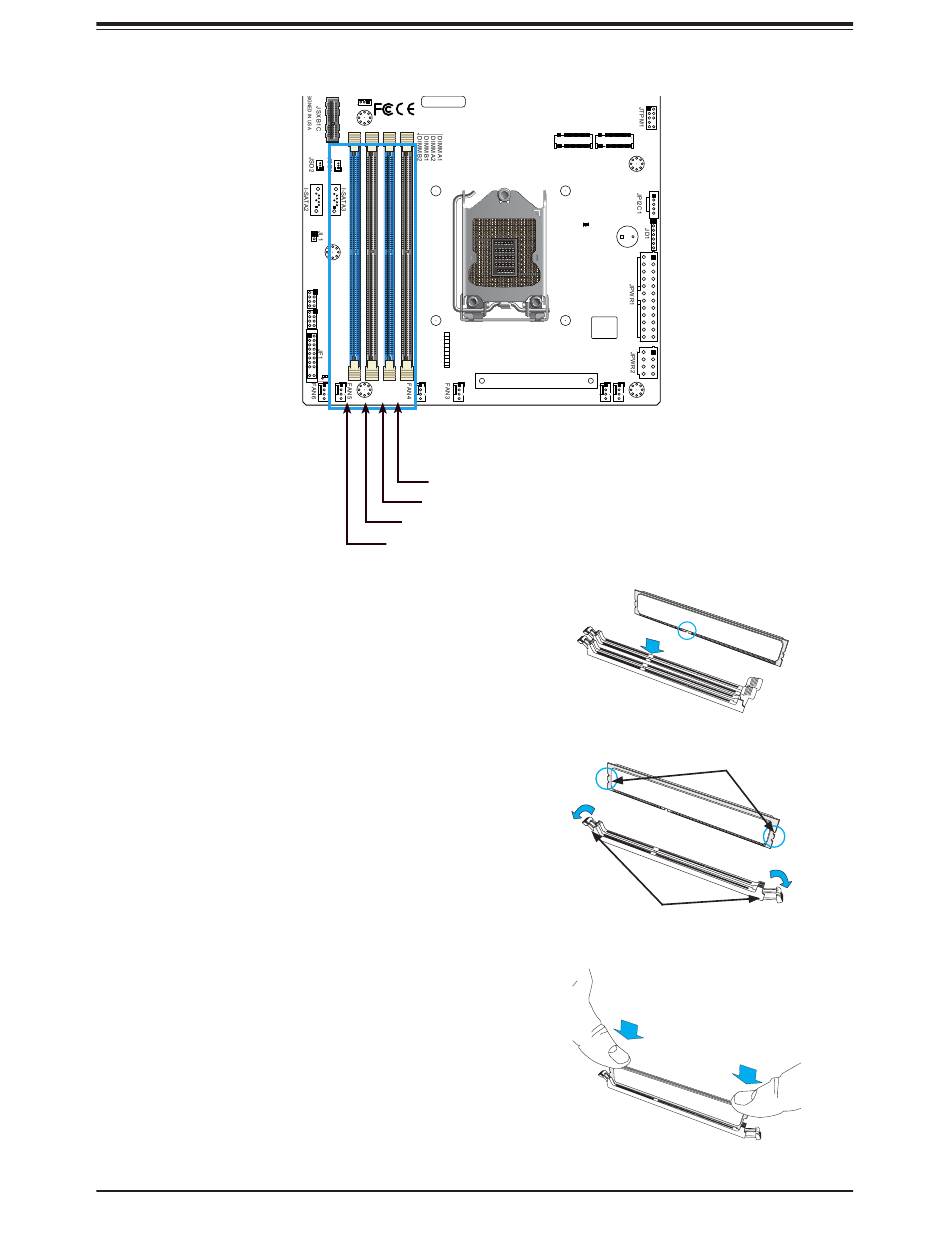

DIMM Installation

1. Insert the desired number of DIMMs
into the memory slots based on the
recommended DIMM population table on
the previous page.
2. Push the release tabs outwards on both
ends of the DIMM slot to unlock it.
3. Align the key of the DIMM module with the
receptive point on the memory slot.
4. Align the notches on both ends of the
module against the receptive points on the
ends of the slot.
5. Press both ends of the module straight
down into the slot until the DIMM snaps
into place.
6. Push the release tabs to the lock positions
to secure the DIMM module into the slot.
