Control Panel

JF1 contains header pins for various buttons and indicators that are normally located on a
control panel at the front of the chassis. These connectors are designed specifically for use
with Supermicro chassis. See the figure below for the descriptions of the front control panel
buttons and LED indicators.
Power Button
The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both
pins will power on/off the system. This button can also be configured to function as a suspend
button (with a setting in the BIOS - see Chapter 6). To turn off the power when the system
is in suspend mode, press the button for 4 seconds or longer. Refer to the table below for
pin definitions.
1
PWR
Power Button
Reset
Reset Button
3.3V
UID LED
3.3V Stby
3.3V Stby
UID SW
3.3V
NMI
19

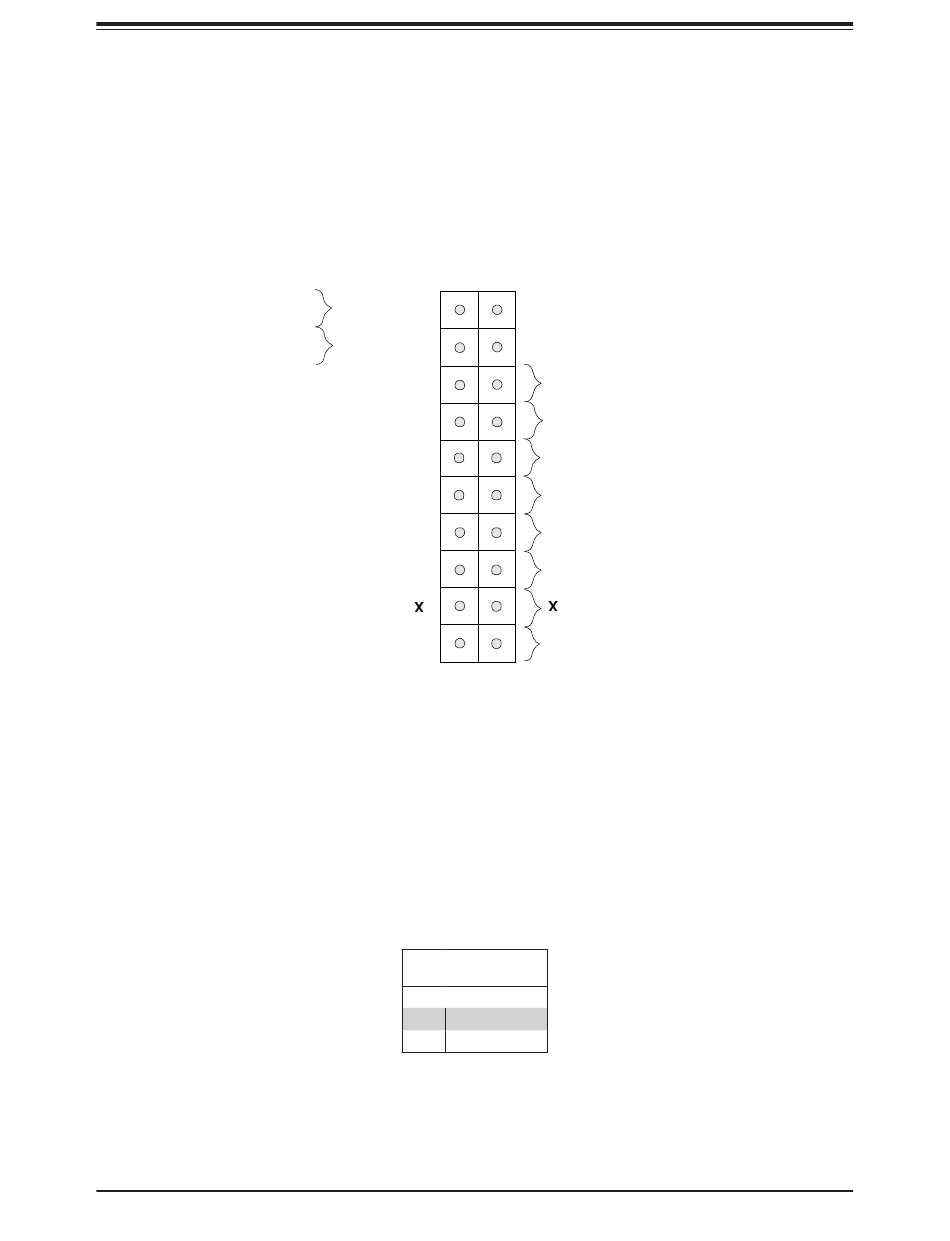

Figure 4-1. JF1 Header Pins
Power Button
Pin Definitions (JF1)
Pin# Definition
1 Signal
2 GND
2
Ground
Ground
Power Fail LED
OH/Fan Fail LED
NIC2 Active LED
NIC1 Active LED
HDD LED
PWR LED
Ground
20
