1.5 Motherboard Layout

Below is a layout of the X11SCW-F with jumper, connector and LED locations shown. See
the table on the following page for descriptions. For detailed descriptions, pinout information
and jumper settings, refer to Chapter 4.
JUIDB1
JPME2
LEDM1
JSXB1A
JSXB2
JPL1
JPL2
LEDEC2
JSXB1B
LEDEC1
I-SATA6
I-SATA7
I-SATA4
I-SATA5
JSTBY1
JSXB1C
JSD2
JSD1
I-SATA2
I-SATA3
JL1
DIMMA1
DIMMA2
DIMMB1
DIMMB2
I-SGPIO2
I-SGPIO1
JF1
LEDPWR
Notes:
•
" " indicates the location of Pin 1.
•
Jumpers/components/LED indicators not indicated are used for internal testing only.
JPG1
JWD1
VGA
LAN2
LE1
LE1
VGA
LAN2
LEDM1
ASpeed
AST2500
LEDEC2
IPMI CODE
MAC CODE
JSTBY1
BAR CODE
I-SGPIO2
I-SGPIO1
JF1
PWR
ON
RST
PWR
FAIL
OH
FF
NIC
2
NIC
1
HDD
PWR
LED
NMI
LEDPWR
FAN6 FAN5 FAN4 FAN3

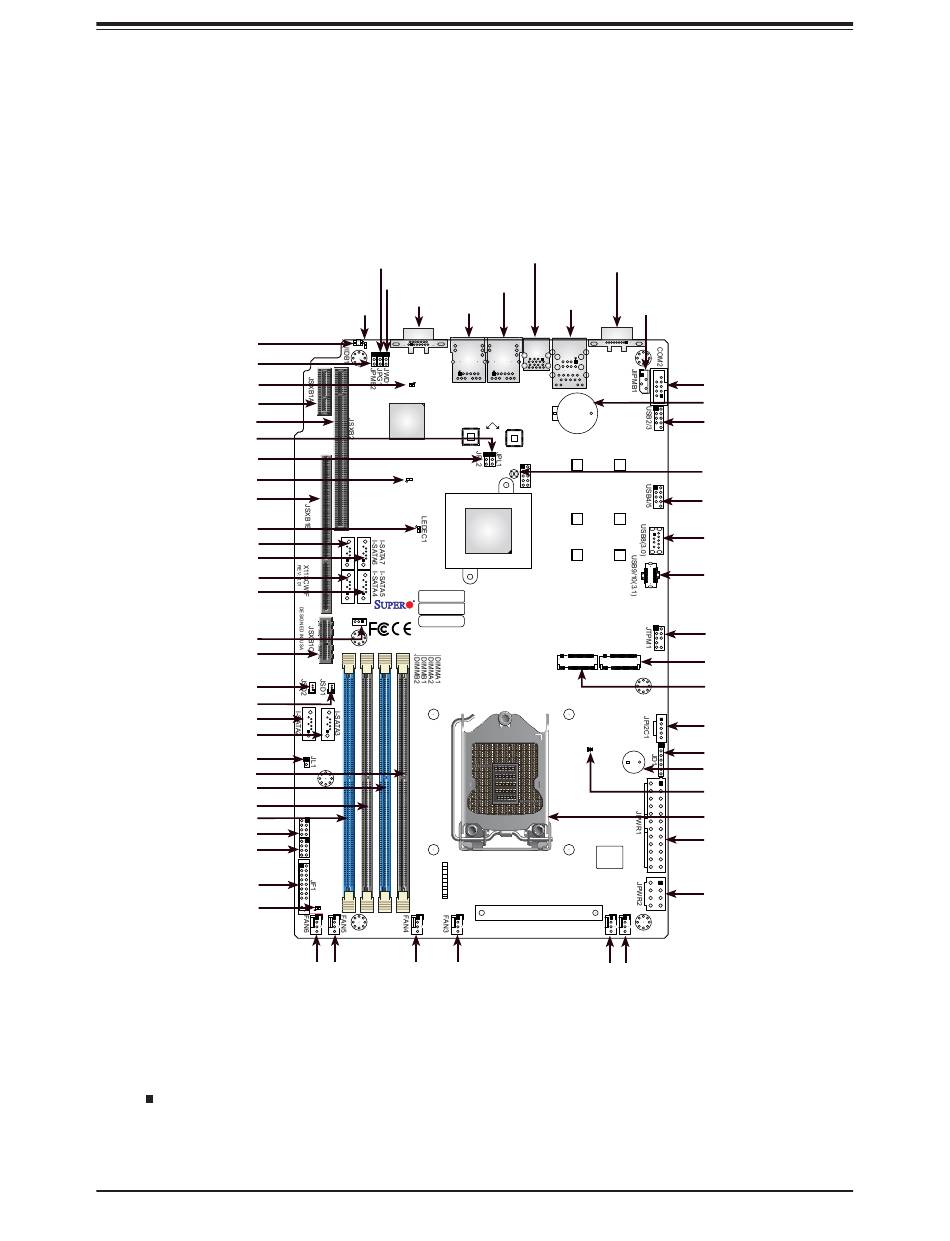

Figure 1-4. Motherboard Layout
