MSOP-8EVM-PDK Kit Operation
6.3.2 Connecting a Laboratory Power Supply
A laboratory power supply can be connected through terminal block J14 on the MMB0, as shown in
Figure 6.
To use a unipolar lab power supply configuration:
• Disconnect J12 on the MMB0.
• Connect a +5V dc supply to the +5VD terminal on J14.
• Connect ground of the dc supply to the GND terminal on J14.
It is not necessary to connect a +5V dc supply voltage to the +5VA terminal on J14 if the +5V/+5VA
position on J13 is shorted.
12
MSOP-8EVM and MSOP-8EVM-PDK

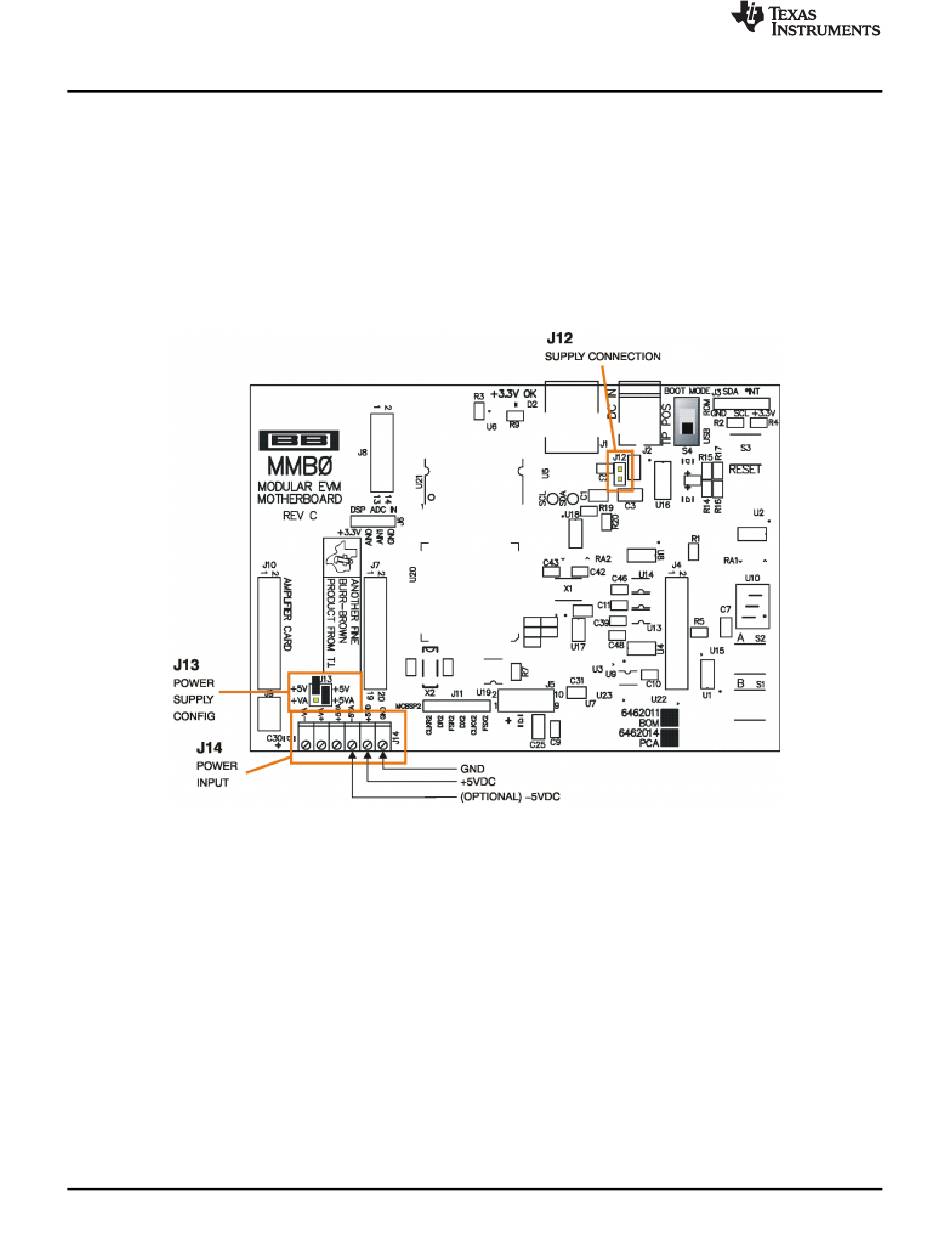

Figure 6. Laboratory Power-Supply Connection
