MSOP-8EVM-PDK Kit Operation
Step 4. Plug the MSOP-8EVM into the MMB0.
Figure 4. Connecting the MSOP-8EVM to the MMB0 Motherboard
Do not misalign the pins when plugging the MSOP-8EVM into the MMB0.
Check the pin alignment of J1, J2 and J3 carefully before applying power to the
PDK.
6.2.1 About the MMB0
The MMB0 is a modular EVM system motherboard. It is designed around the TMS320VC5507, a DSP
from Texas Instruments that has an onboard USB interface. The MMB0 also has 16MB of SDRAM
installed.
The MMB0 is not sold as a DSP development board, and it is not available separately. TI cannot offer
support for the MMB0 except as part of an EVM kit. For schematics or other information about the MMB0,
contact Texas Instruments.
10
MSOP-8EVM and MSOP-8EVM-PDK

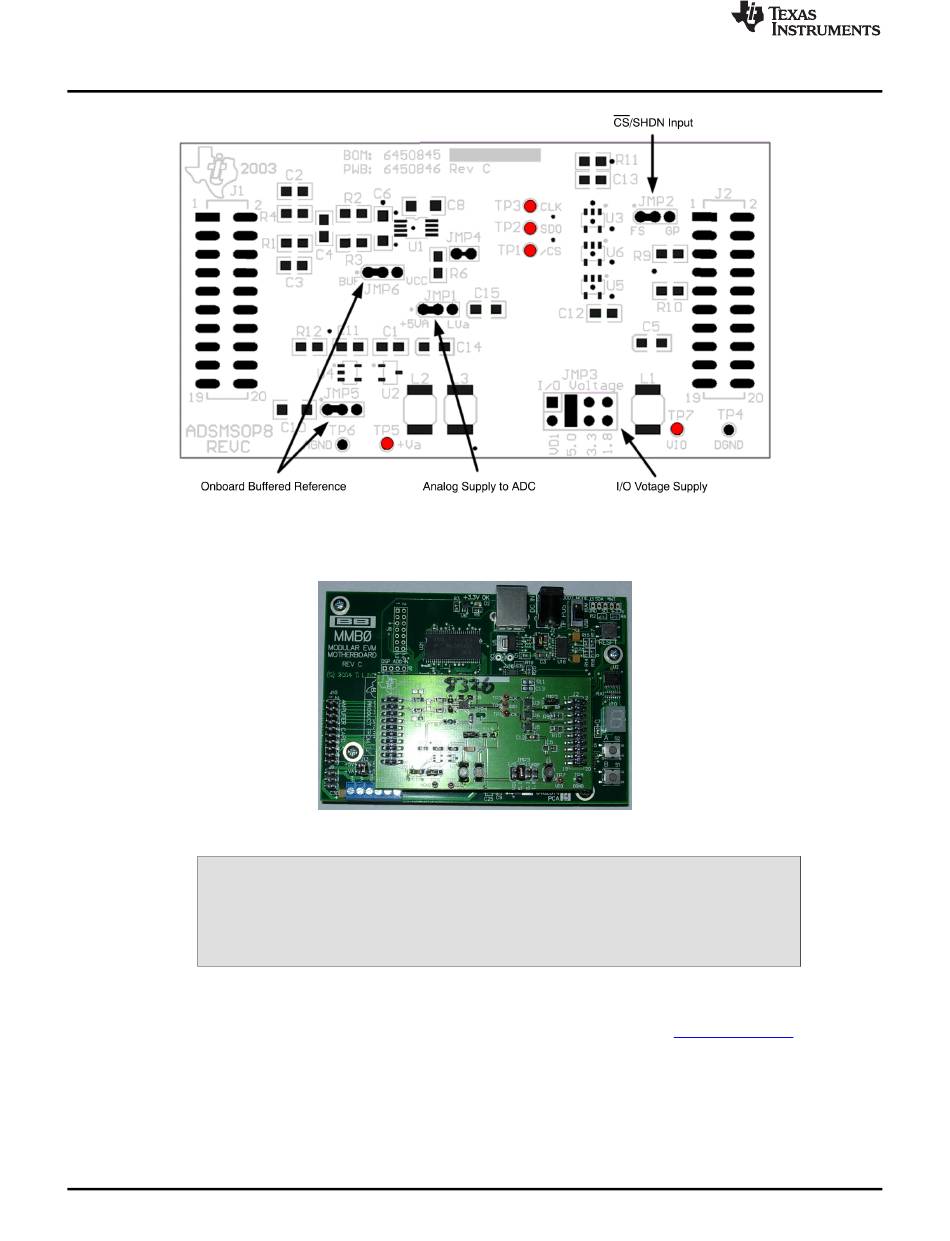

Figure 3. MSOP-8 EVM Board Initial Setup
CAUTION
Copyright © 2008–2016, Texas Instruments Incorporated
