MSP430FG4618/F2013 Experimenter Board

be
used
for
a
MSP430FG4618/F2013 experimenter board (see
SLAU213B – March 2007 – Revised August 2018
Submit Documentation Feedback
MSP430FG4618/F2013 Experimenter Board
number
of
applications.

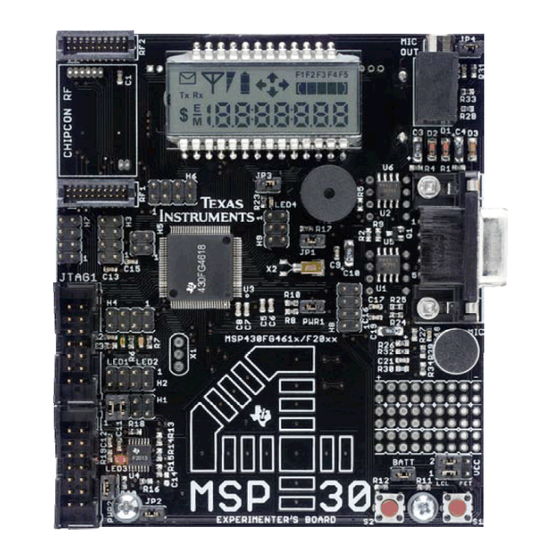

Figure 1. MSP430FG4618/F2013 Experimenter Board
MSP430FG4618/F2013 Experimenter Board (MSP ‑ EXP430FG4618)
Copyright © 2007–2018, Texas Instruments Incorporated
SLAU213B – March 2007 – Revised August 2018
(MSP ‑ ‑ EXP430FG4618)
is a comprehensive development target board that can
The
MSP-EXP430FG4618
Figure
1) and two AAA 1.5-V batteries.
User's Guide
kit
comes
with
one
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSP430FG4618/F2013 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments MSP430FG4618/F2013

  • Page 1: Msp430Fg4618/F2013 Experimenter Board

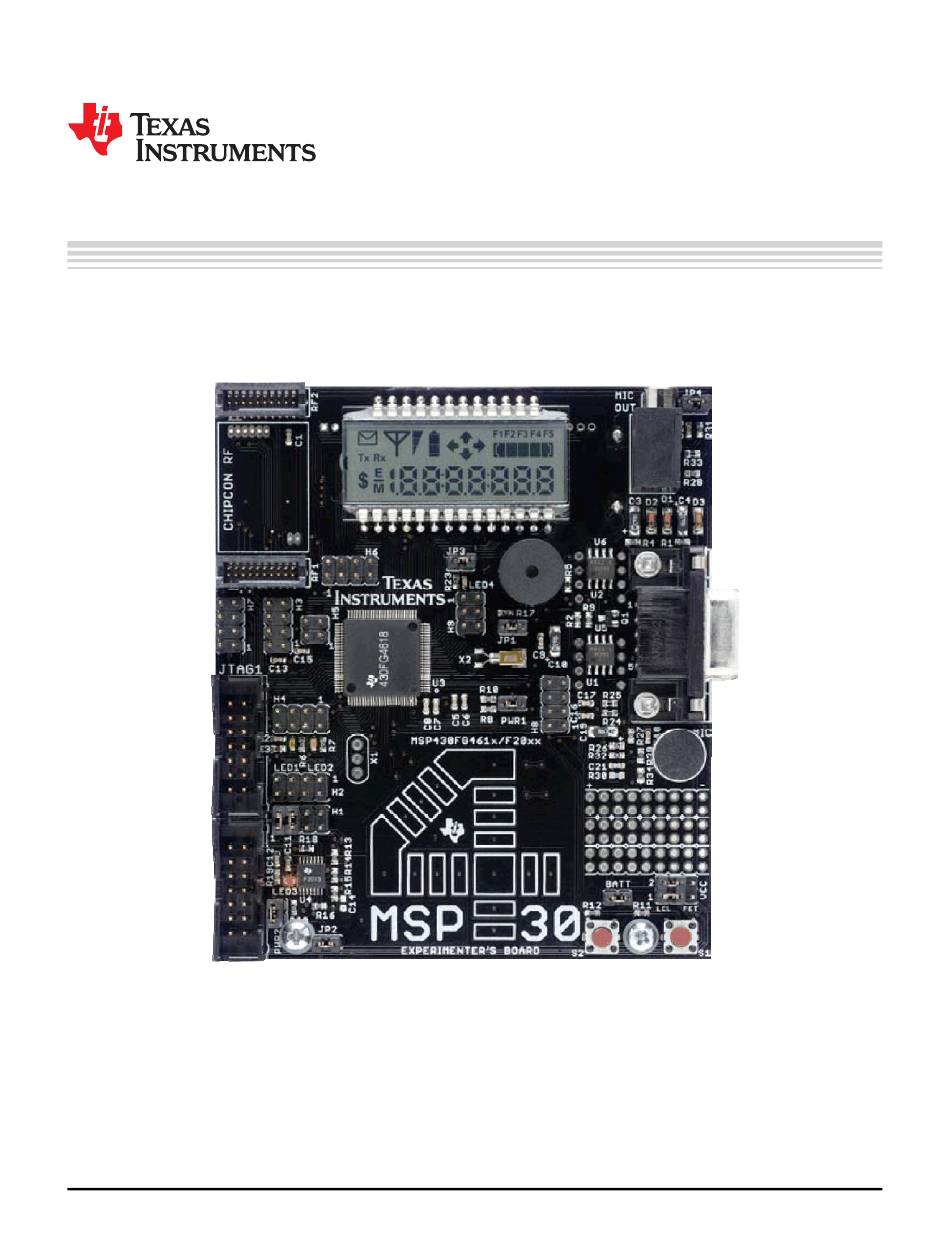

    MSP430FG4618/F2013 experimenter board (see Figure 1) and two AAA 1.5-V batteries. Figure 1. MSP430FG4618/F2013 Experimenter Board MSP430FG4618/F2013 Experimenter Board (MSP ‑ EXP430FG4618) SLAU213B – March 2007 – Revised August 2018 Submit Documentation Feedback Copyright © 2007–2018, Texas Instruments Incorporated...
  • Page 2: Table Of Contents

    List of Tables ..................Jumper Settings and Functionality Trademarks MSP430, E2E, MSP430Ware are trademarks of Texas Instruments. All other trademarks are the property of their respective owners. MSP430FG4618/F2013 Experimenter Board (MSP ‑ EXP430FG4618) SLAU213B – March 2007 – Revised August 2018 Submit Documentation Feedback Copyright ©...
  • Page 3: Devices Supported

    For more details on the flash emulation tool, see the MSP Debuggers User's Guide. Functional Overview The MSP430FG4618/F2013 experimenter board supports various applications through the use of the on- chip peripherals connecting to a number of onboard components and interfaces (see Figure Analog...
  • Page 4: Hardware Installation

    MSP430FG4618 and MSP430F2013 are factory programmed. After power up, the MSP430FG4618 executes an ultra-low-power real-time clock displayed on the LCD. The MSP430F2013 pulses LED3 from LPM3 using the VLO for periodic wakeup. MSP430FG4618/F2013 Experimenter Board (MSP ‑ EXP430FG4618) SLAU213B – March 2007 – Revised August 2018 Submit Documentation Feedback...
  • Page 5: Hardware Overview

    (obsolete) supports an RF carrier frequency up to 868 MHz, and the CC2500EMK and CC2420EMK support an RF carrier frequency of 2.4 GHz. MSP430FG4618/F2013 Experimenter Board (MSP ‑ EXP430FG4618) SLAU213B – March 2007 – Revised August 2018 Submit Documentation Feedback...
  • Page 6: Analog Signal Chain

    MSP430 MCU. The op-amps OA0 and OA1 facilitate the filtering processes. The gray blocks in Figure 5 are elements that are internal to the MSP430FG4618. MSP430FG4618/F2013 Experimenter Board (MSP ‑ EXP430FG4618) SLAU213B – March 2007 – Revised August 2018 Submit Documentation Feedback...
  • Page 7: System Clocks

    In addition to the FLL+, an external high-frequency crystal or resonator up to 8 MHz can be added to footprint X1. MSP430FG4618/F2013 Experimenter Board (MSP ‑ EXP430FG4618) SLAU213B – March 2007 – Revised August 2018 Submit Documentation Feedback...
  • Page 8: Jumper Configurations

    Table 1 lists the function of each jumper. Figure 6. Jumper Locations MSP430FG4618/F2013 Experimenter Board (MSP ‑ EXP430FG4618) SLAU213B – March 2007 – Revised August 2018 Submit Documentation Feedback Copyright © 2007–2018, Texas Instruments Incorporated...
  • Page 9: Frequently Asked Questions

    4. I have erased and reprogrammed the MSP430 MCU. Can I restore the factory-programmed firmware on the device? The software source files are available in MSP430Ware for MSP Microcontrollers. MSP430FG4618/F2013 Experimenter Board (MSP ‑ EXP430FG4618) SLAU213B – March 2007 – Revised August 2018 Submit Documentation Feedback Copyright © 2007–2018, Texas Instruments Incorporated...
  • Page 10 MSP430s. Make sure jumper JP2 is removed, disconnecting LED3 from the touchpad circuitry. When connected, the LED causes the measurement of the capacitive touch element on P1.0 to fail. MSP430FG4618/F2013 Experimenter Board (MSP ‑ EXP430FG4618) SLAU213B – March 2007 – Revised August 2018 Submit Documentation Feedback Copyright ©...
  • Page 11: Schematic

    MSP-EXP430FG4618 PCB Ver 0-00 Attn.) (A2/OA0I1) P6.3 (A3/OA1O) Document Number: VER: 0-00 Date: 26-Oct-2006 Sheet: 1/1 Figure 7. MSP-EXP430FG4618 Schematic SLAU213B – March 2007 – Revised August 2018 MSP430FG4618/F2013 Experimenter Board (MSP ‑ EXP430FG4618) Submit Documentation Feedback Copyright © 2007–2018, Texas Instruments Incorporated...
  • Page 12: References

    MSP430F20x1, MSP430F20x2, MSP430F20x3 Mixed-Signal Microcontrollers IAR Embedded Workbench IDE Version 7+ for MSP430 MCUs MSP430 Interface to CC1100/2500 Code Library MSP430FG4618/F2013 Experimenter Board (MSP ‑ EXP430FG4618) SLAU213B – March 2007 – Revised August 2018 Submit Documentation Feedback Copyright © 2007–2018, Texas Instruments Incorporated...
  • Page 13 Moved former Appendix B to Section 6.5.1, Jumper Locations and Settings ..........• Deleted former Appendix A, Configuring an IAR Embedded Workbench Project SLAU213B – March 2007 – Revised August 2018 Revision History Submit Documentation Feedback Copyright © 2007–2018, Texas Instruments Incorporated...
