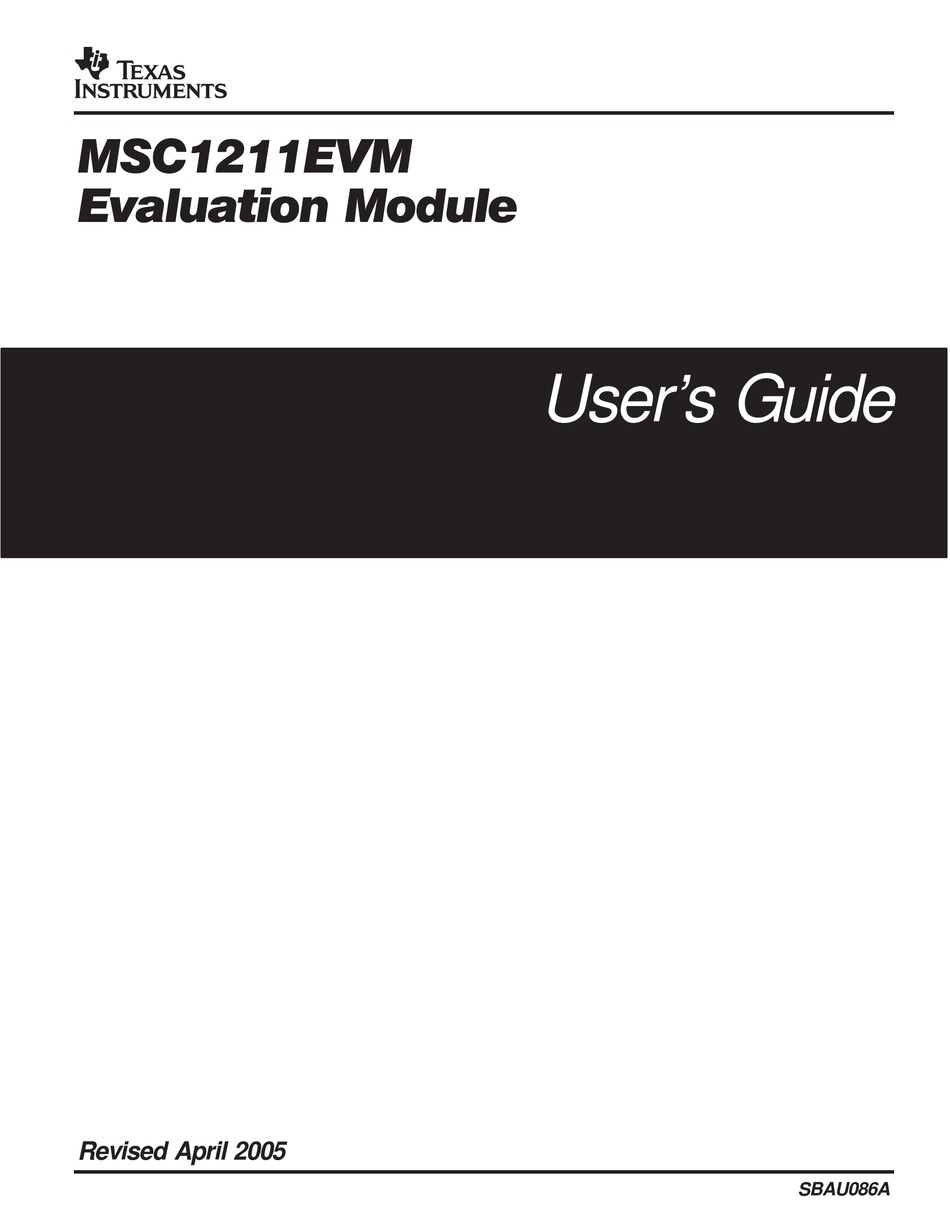

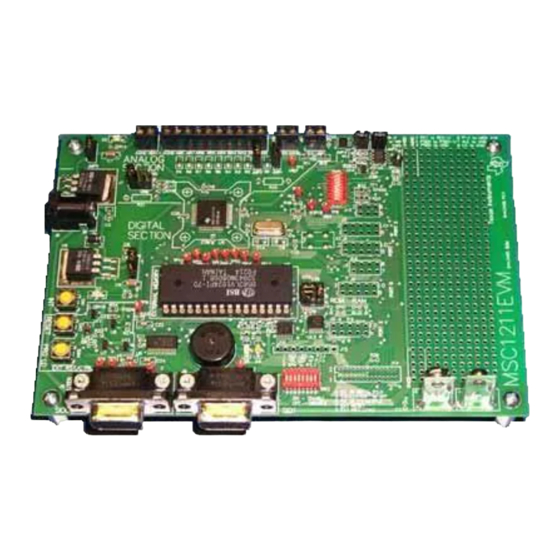

  • Page 1 MSC1211EVM Evaluation Module User’s Guide Revised April 2005 SBAU086A...
  • Page 2 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
  • Page 3 EVM IMPORTANT NOTICE Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation kit being sold by TI is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not considered by TI to be fit for commercial use. As such, the goods being provided may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety measures typically found in the end product incorporating the goods.
  • Page 4 EVM schematic located in the EVM User’s Guide. When placing measurement probes near these devices during operation, please be aware that these devices may be very warm to the touch. Mailing Address: Texas Instruments Post Office Box 655303 Dallas, Texas 75265 Copyright  2005, Texas Instruments Incorporated...
  • Page 5 Read This First About This Manual This users guide describes the function and operation of the MSC1211EVM. This manual will help you quickly set up the evaluation module and its accom- panying software, so that you can rapidly test and evaluate the MSC1211. A complete circuit description, as well as schematic diagram and bill of materi- als, is included.
  • Page 6 Contents Related Documentation From Texas Instruments Data Sheets: Literature Number: MSC1211 SBAS267 REG1117−5.0,−3.3 SBVS001 ADS8325 SBAS226 MAX3243CPWR SLLS350 TPS3837L30DBVT,TPS3838L30DBVT SLVS292 SN74HC573ADW SCLS147 SN74AC10PWR SCAS529 SN74AHC1G08DBVR SCLS3141 SN74AHC138PWR SCLS2581 FCC Warning This equipment is intended for use in a laboratory test environment only. It gen-...

  • Page 7: Table Of Contents

    ..............Unpacking the MSC1211EVM .
  • Page 8 1−1. MSC1211EVM Block Diagram ..........

  • Page 9: Introduction

    Chapter 1 Introduction This chapter provides an overview of the MSC1211 evaluation module and software. Topic Page MSC1211 Description ......... . EVM System Overview .

  • Page 10: Msc1211 Description

    1.2 EVM System Overview A block diagram of the MSC1211EVM is shown in Figure 1−1. During normal operation, programs are developed on the PC and then down- loaded into the MSC1211 for execution. The primary development environ- ment is Raisonance for assembly and C language programming.

  • Page 11: Analog Inputs

    1.4 Prototyping Area A prototyping area is provided on the MSC1211EVM. This may be used to in- corporate additional circuitry, such as special reference or conditioning cir- cuits, into the system. All of the signals on the MSC1211 are brought to con- nector pads.

  • Page 12: Getting Started

    Chapter 2 Getting Started This chapter guides you through unpacking the MSC1211EVM and setting it up so you can begin working with it immediately. Topic Page Unpacking the MSC1211EVM ........

  • Page 13: Unpacking The Msc1211Evm

    Unpacking the MSC1211EVM 2.1 Unpacking the MSC1211EVM After unpacking the MSC1211EVM kit, check to make sure you received all of the items listed here: MSC1211EVM board 9V “wall−wart” power supply 9-pin, D-sub, male-female serial cable This user’s guide Software CD-ROM 2.2 Default Configuration...

  • Page 14: Quick Start

    (J6) on the MSC1211EVM. (You do not have to connect the serial cable first; it is also acceptable to apply power to the board first.) When the board is properly powered on, the two green...
  • Page 15 Refer to the RIDE documentation and help menus for more information about how to interact with the RIDE environment. When a program is compiled, it can be immediately downloaded into the MSC1211EVM by using the MSC down- load utility program.

  • Page 16: Tool Advanced Options

    Quick Start Figure 2−2. Tool Advanced Options UnCheck the Prompt before running box. All operands should immediately follow the switch character with no spaces except between options. i.e.: /F{NODE3}.hex /X22 /P1 /H /T If the filename, crystal frequency, or port are not included, a screen will prompt for the values.

  • Page 17: Operation

    Chapter 3 Operation This chapter describes each function of the MSC1211EVM, and how to use the accompanying software to program and use the MSC1211. Topic Page Jumpers ........... . .

  • Page 18: Jumpers

    Jumpers 3.1 Jumpers Table 3−1 shows the function of each jumper on the EVM. Table 3−1. Jumper/Function Reference Reference Designator Setting/Pin Function Default Subsection JMP1 1 to 2 Short R1 for IDAC0 output Disconnected 3.1.1 JMP2 1 to 2 Short R2 for IDAC1 output Disconnected 3.1.2 JMP3...

  • Page 19: Jmp1: Short R1

    3.1.8 J16: Memory Configuration The MSC1211EVM can use either RAM or EEPROM in the socket for U9. The J16 jumper provides the capability to configure the Addressing and Write En- able signals for each use. For use with compatible EEPROMs, the following pins are shorted: 1−2, 3−5 and 4−6.

  • Page 20: Switches

    This pin is the INT0 pin and, therefore, can be setup to cause an inter- rupt when this pin goes low. 3.2.3 SW3: Configuration Switch SW3 provides the means to enable or disable many of the function on the MSC1211EVM. Table 3−2. SW3: Configuration Control Switch Switch Number Function Enables pin P3.5 to control the Yellow LED D5...

  • Page 21: Sw5: Emulation And Control Switch

    Switches 3.2.5 SW5: Emulation and Control Switch SW5 provides the means to break several signals so that they can be con- trolled by an emulator plugged into J14. This switch also provides a means of setting the operating mode of the MSC1211. Table 3−3.

  • Page 22: I/O Connectors And Signals

    The host PC communicates with the MSC1211EVM through this connector, which is a D-shell type, 9-pin female, pinned out in the usual manner. Some of the flow control lines are used for special purposes by the MSC1211EVM board; these are described in Table 3−4.

  • Page 23: J9: Serial1 Rs-232 Connector

    I/O Connectors and Signals 3.3.2 J9: Serial1 RS-232 Connector This connector is available for use with the second UART in the MSC1211. Only the TD and RD lines are used. The DTR pin is connected to the DSR pin, and the RTS pin is connected to the CTS pin. In the RS-232 electrical specification, −5V to –15V on a line indicates a log- ic high (mark), and +5V to +15V indicates logic low (space).

  • Page 24: J6, Jmp5, Jmp6, B1: Power Connectors

    3.3.3 J6, JMP5, JMP6, B1: Power Connectors The MSC1211EVM features a flexible power supply. Externally generated power, the onboard regulator circuitry and supplied wall-wart, or a 9V battery can all be used to supply power. Furthermore, the separated analog and digital power supplies can be powered differently;...

  • Page 25: J4: Analog Inputs

    3.3.4 J4: Analog Inputs Terminal block J4 is the main analog input to the MSC1211EVM, as is defined in Table 3−8. One terminal is provided for each of the nine MSC1211 differen- tial inputs. Each terminal is connected to the MSC1211 through a 1kΩ resistor.

  • Page 26: Tp1−6: Test Points

    I/O Connectors and Signals 3.3.6 TP1−6: Test Points The test points can be used to monitor certain signals on the board. For information on the signals connected directly to the MSC1211, consult the MSC1211 datasheet (SBAS267) located at www.ti.com. Table 3−10.TP1−6: Test Points Test Point MSC1211 MSC1211...
  • Page 27 The Raisonance integrated software environment (RIDE) and the TI Down- loader program make for a convenient system of program development, download, and execution. Full source code for the MSC1211EVM firmware is included on the CD-ROM. 3.4.3 Power Supply Power is brought into the board through external power connectors JMP5 (pins 2 and 3) and JMP6 (pins 2 and 3), battery connector B1, or unregulated power input J6.
  • Page 28 Chapter 4 Physical Description This chapter contains the schematic drawings and PCB layouts for the MSC1211EVM board. Topic Page Schematics ...........

  • Page 29: Processor Schematic

    Schematics 4.1 Schematics Figure 4−1. Processor Schematic...

  • Page 30: Power And Analog Inputs Schematic

    Schematics Figure 4−2. Power and Analog Inputs Schematic Physical Description...

  • Page 31: Printed Circuit Board Layout

    Component Locations 4.2 Component Locations Figure 4−3. Printed Circuit Board Layout...
  • Page 32 Power-Supply CE Certification 4.3 Power-Supply CE Certification Physical Description...
  • Page 33 Bill of Materials...
  • Page 34 Bill of Materials Physical Description...
  • Page 35 Bill of Materials...
