Step 4. Install the Signal Booster

When placing the booster, select a location close to a working AC outlet. Do not expose the
signal booster to excessive heat, direct sunlight, moisture, and airtight enclosures.
1. Mount 24 inch x 24 inch, 3⁄4 inch thick sheet of plywood on top of sheetrock into wall
studs where the booster is to be placed. Plywood should be flush against wall. Once
mounted, screw the booster to the plywood sheet. The top side of the booster with the
lights and DIP switches should be facing away from the wall and plainly visible standing
near the booster.
2. Connect the outdoor antenna cable to the signal booster connector port marked OUTSIDE
and tighten the connection.
3. Connect the cable coming from the indoor antenna(s) to the booster port marked INSIDE
and tighten the connection.
4. Connect the AC power cord to the signal booster.
5. Connect the plug on the other end of the 110V AC power outlet.
6. Turn the booster's power switch on.
Once the booster is powered on:
• The green Power light should illuminate.
• The band lights will flash red and yellow for approximately 10 seconds.
LTE-A LTE-V
ON ON ON
1 2 3 4 5 1 2 3 4 5 1 2 3 4 5
1 2 4 8 16 1 2 4 8 16 1 2 4 8 16
LTE-A-UL LTE-DL LTE-V-DL
Note: If the Power LED does not turn ON or the Alert LEDs continue to flash, (see "Testing and Troubleshooting" on
page 20).This booster is rated for 5-20V input voltage. DO NOT use the booster with a higher voltage power
supply. This can damage the booster, cause personal injury and void your warranty.
16
SureCall | 1-888-365-6283 | support@surecall.com | www.surecall.com
ON/OFF
CELLULAR PCS AWS
ON ON ON ON ON ON
1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5
1 2 4 8 16 1 2 4 8 16 1 2 4 8 16 1 2 4 8 16 1 2 4 8 16 1 2 4 8 16
CELLULAR-UL CELLULAR-DL PCS-UL PCS-DL AWS-UL AWS-DL

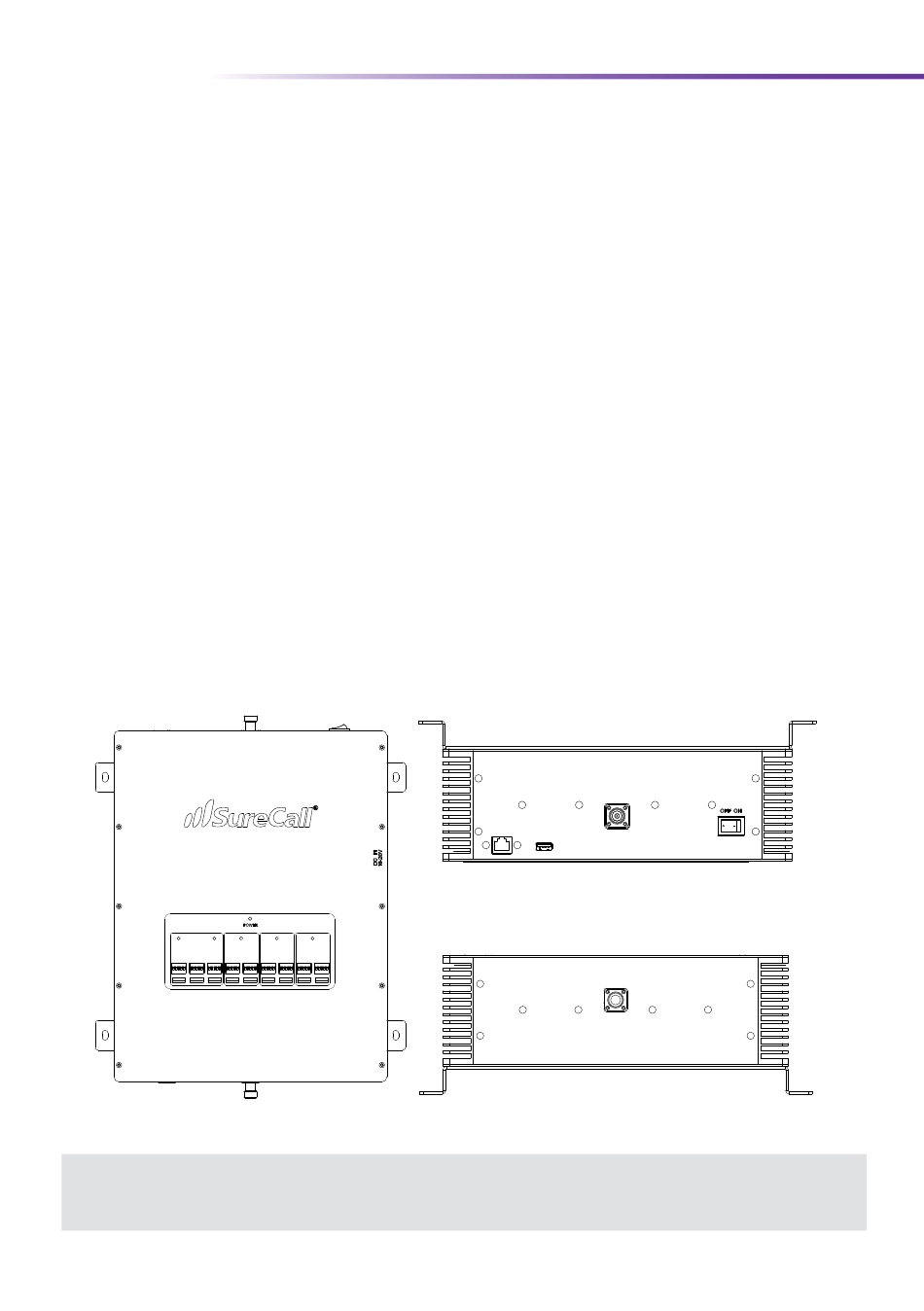

Top View
INSIDE
Network
USB
Bottom View
OUTSIDE
