- Page 1 TriFlex ™ 2G, 3G, 4G Home or Office Signal Booster Kit User Guide Click here to see price and to order.

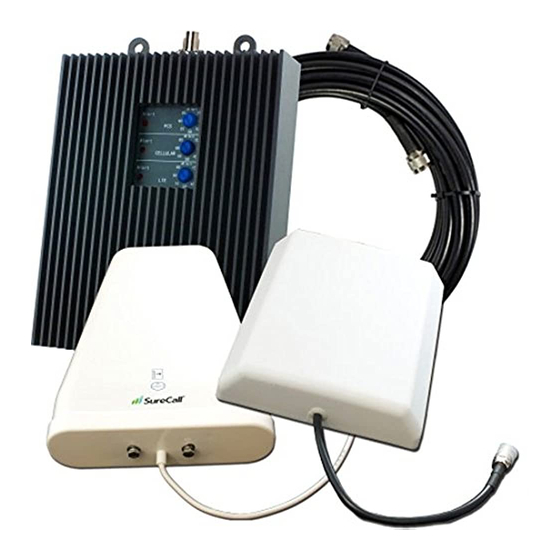

- Page 2 Thank you for purchasing SureCall’s TriFlex cellular signal booster kit. TriFlex is specifically designed to eliminate frustrations over dropped calls, limited range and slow data rates by amplifying incoming and outgoing cellular signals in buildings, homes and offices up to 6,000 square feet.
-
Page 3: Table Of Contents
Table of Contents How It Works Pg. 4 Package Contents Pg. 5-6 Installing Your Hardware Pg. 7 Installation Overview Pg. 7 Finding the Strongest Signal Pg. 8 Installing the Outside Anntenna Pg. 9-10 Installing the Insides Anntenna Pg. 11-12 Installing Signal Booster Pg. -
Page 4: How It Works
How It Works SureCall’s TriFlex is a high-quality bidirectional signal booster that boosts cellular signals for areas prone to weak cellular coverage. The TriFlex works with two antennas: • An inside antenna that communicates with your cell phone. • An outside antenna that communicates with the cell tower. -
Page 5: Package Contents
Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact FCC for details: 1-888-CALL-FCC. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. https://www.signalbooster.com | 1-855-846-2654 | sales@signalbooster.com... - Page 6 Panel Antennas allow optimum Panel Antenna SC-248W reception to targeted areas Note: Due to our recent name change from Cellphone-Mate (CM) to SureCall (SC) we have changed the prefix on all antenna, cables and accessories to SC-. https://www.signalbooster.com | 1-855-846-2654 | sales@signalbooster.com...
-
Page 7: Installation Overview
Before You Install Step 1. Make sure you have positioned the booster close enough to an existing electrical outlet. Step 2. Make sure you have sufficient cable length between proposed outside antenna location and booster connector. Step 3. Make sure you have sufficient cable length between proposed inside antenna location and booster connector. -
Page 8: Installing Your Hardware
Installing Your Hardware Step 1. Find the area with the Strongest Signal The signal booster requires a minimum cellular signal of low –100 dBm to high –90 dBm. Signal readings usually appear as a negative number (for example, -85). The more bars, the closer it gets to zero. -
Page 9: Installing The Outside Anntenna
Installing Your Hardware Step 2. Install the Outside Antenna 1. Outside Omni antennas receive and send signals in a 360º radius. Yagi, or directional antennas work best when pointed in the direction of your cell phone carrier’s tower. Mount the outside antenna as high as possible. If you are installing a Yagi antenna set it up facing the cell tower in the area where you located the best signal source (see step 1 on the previous page). - Page 10 Installing Your Hardware TriFlex omni antenna comes with equipment for mounting on a vertical wall. For best results the antenna should be mounted in an upright position. Step 1: Unscrew antenna from L-mounting bracket on antenna base with hands, or wrench, if needed.
-
Page 11: Installing The Insides Anntenna
Installing Your Hardware Step 3. Install the Inside Antenna Inside antennas come in omni-directional (dome) and flat panel versions. Table 3 1. Antenna Separation Table and Antenna If the Coverage Area is... Set All Dials to... Separation is... Required Between Outside and Inside Antenna 3000 - 6000 square feet 65 (default setting) 60 - 80 feet... - Page 12 Installing your Hardware The SC-222W multi-band plastic antenna is an omni-directional interior antenna that gathers signals from all sides. Range of antenna is dependent on three factors: 1) physical obstructions, 2) power generated by booster and 3) reception from outside signal received and distributed by outside antenna.
-
Page 13: Installing Signal Booster
Installing Your Hardware Step 4. Install the Signal Booster 1. Select a location close to a working AC outlet. Do not expose the signal booster to excessive heat, direct sunlight, moisture, and airtight enclosures. In areas where there are higher temperatures, install the booster vertically, so air can move between the metal channels on the faceplate. -
Page 14: Configure Gain Setting
Installing your Hardware Booster Hardware The following image shows the key hardware components on the cellullar booster. Booster Hardware Refer to this image as you install your TriFlex kit components. The following image shows the key hardware components on the cellular booster. Refer to this image as you install your Halo kit components. -
Page 15: Troubleshooting
AC outlet is working and is not controlled by a wall switch that can cut power to the outlet. If the green POWER LED on the signal booster is OFF, return the power supply to SureCall. Contact tech support at 1-855-846-2654 or sales@signalbooster.com or go to https://www.signalbooster.com and log on to online support to... - Page 16 2. Relocate the outdoor antenna to a location where the signal is weaker. Your signal booster restarted Each SureCall signal booster is equipped with Auto Shutdown to and shut down for 15 minutes, prevent cell tower interference. The outside antenna may be close and is now shut down to a cell tower.
-
Page 17: Specification
–2.98 dB *All equivalent antennas and cables are suitable for use with the TriFlex booster. Note: Due to our recent name change from Cellphone-Mate (CM) to SureCall (SC) we have changed the prefix on all antenna, cables and accessories to SC-. -
Page 18: Warranty
SureCall warrants to the Buyer that each of its products, when shipped, will be free from defects in material and workman- ship, and will perform in full accordance with applicable specifications. The limit of liability under this warranty is, at SureCall’s... -
Page 19: Safety Information
Website: https://www.signalbooster.com/ SureCall has made a good faith effort to ensure the accuracy of the information in this document and disclaims the implied warranties of merchantability and fitness for a particular purpose and makes no express warranties, except as may be stated in its written agreement with and for its customers.SureCall shall not be held liable to anyone for any indirect, special or consequential damages due to omissions or... - Page 20 1 Watt EIRP. Fixed stations operating in this band are limited to a maximum antenna height of 10 meters above ground. Mobile and portable stations operating in this band must employ a means for limiting power to the minimum necessary for successful communications. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com https://www.signalbooster.com | 1-855-846-2654 | sales@signalbooster.com...
