Option B: Omni Antenna
The omni antenna is omni-directional, which receives and sends signals in
a 360º radius. The provided hardware allow for either a surface mount or
pole-mount. The antenna should be mounted in an upright position. See

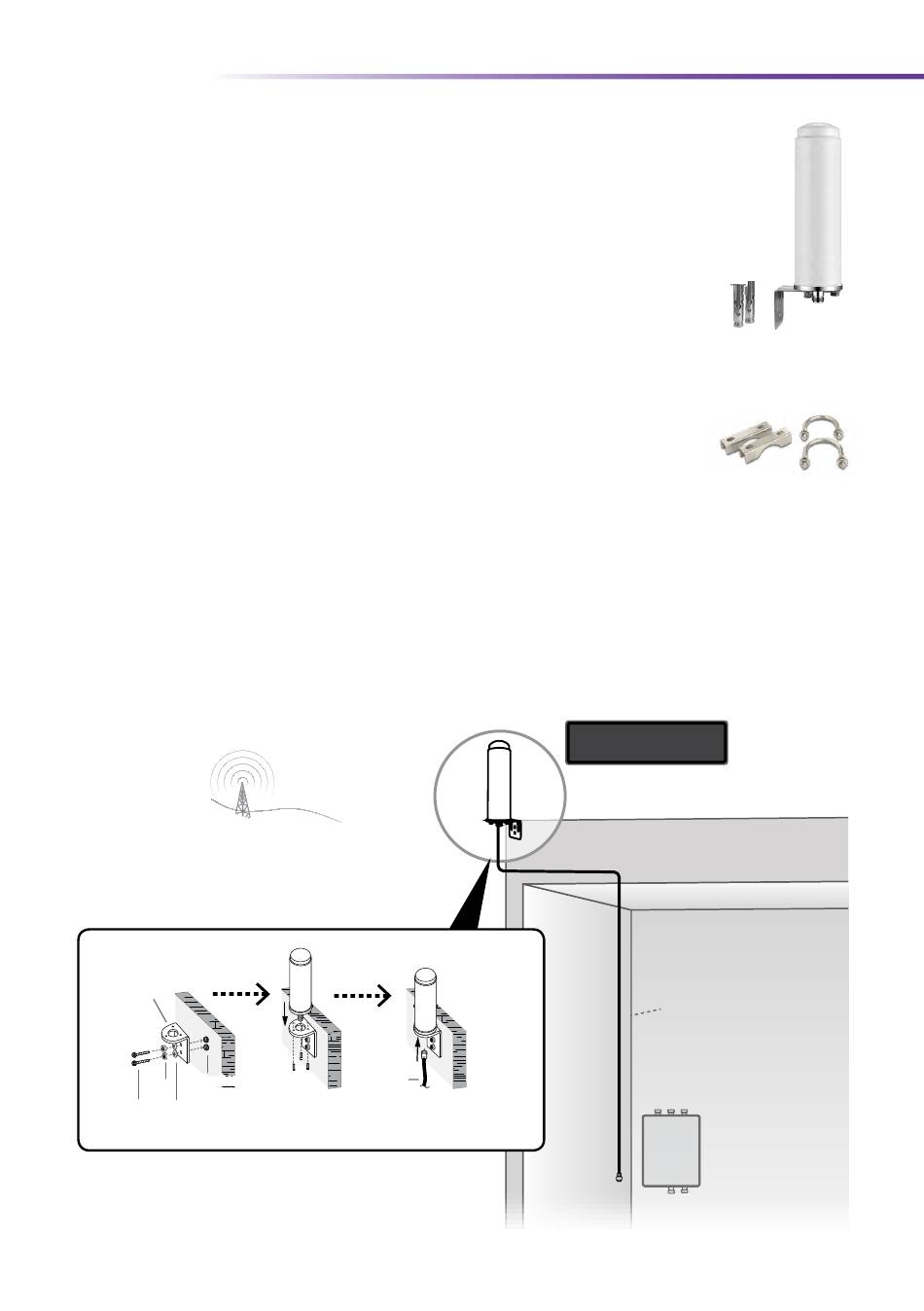

illustration.
Mount antenna to a vertical surface:
1. Using vertical plate of L-bracket, mark position of desired placement.
2. Place vertical L-bracket into desired location and tap the screws, head
first, along with sleeve, into stucco 1/2 to 5/8 inches deep into place.
(Note: Alternate screws may be required for different surfaces such as
wood or concrete.)
3. In this order, place washer, lock washer and nut on each screw and
tighten until secure. When tightening screw, sleeve will expand to
secure plate.
4. Use provided screws to secure antenna base onto horizontal plate.
5. Connect antenna to cable connector for the outdoor cable provided
with your kit and run along route to planned location of your booster.
L-Bracket
Anchors /
Nuts
Sleeves
Screws Washers
10
SureCall | 1-888-365-6283 | support@surecall.com | www.surecall.com
Cable
L-Bracket
Nuts
U-Bolts
Cable
Omni antenna with
surface mount
Outdoor Omni
Outdoor
Cable
Planned
booster
location
Mast
(not provided)
hardware
Pole-mount
hardware
