Summary of Contents for SureCall FlexPro
- Page 1 Flex Pro ™ 2G - 3G Home or Office Signal Booster Kit User Guide...
- Page 2 6,000 square feet. FlexPro enhances 2G and 3G voice and reception data for all major U.S. carriers.
-
Page 3: Table Of Contents
Installing the Insides Anntenna Pg. 11-12 Installing Signal Booster Pg. 13-14 Configure Gain Setting Pg. 14 Troubleshooting Pg. 15 Specification Pg. 17 Warranty Pg. 18-19 Safety Information Pg. 19 SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 4: How It Works
How It Works SureCall’s FlexPro is a high-quality bidirectional signal booster that enhances cellular signals to areas that are prone to weak cellular coverage. FlexPro works with two antennas: • An inside antenna that communicates with your cell phone. • An outside antenna that communicates with the cell tower. -
Page 5: Package Contents

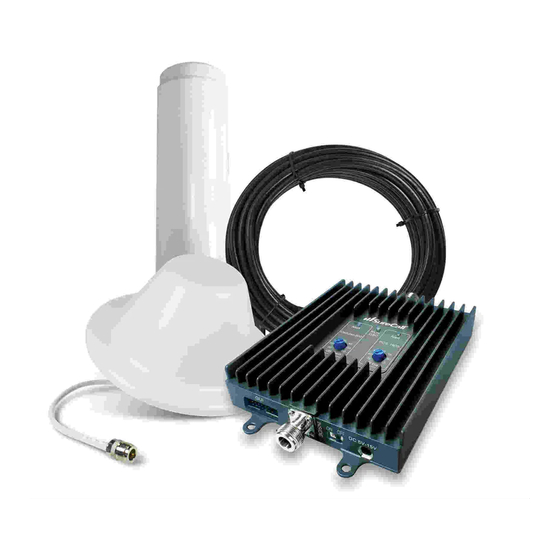

Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact FCC for details: 1-888-CALL-FCC. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... - Page 6 Package Contents Note: FlexPro is available in four kits that are customized to your particular needs. Please determine which kit you have from the following list: Model Package Options SC-DUALH/O-72-OD-Kit 1 Outdoor Omni antenna , 1 interior dome antenna , 30’ and 75’ SC coax cables...
-
Page 7: Installation Overview
AC power source. ( See page 13-14 for instruction) Step 5. Configure gain settings on the signal booster if needed. (See page 14 for instruction) Outside Antenna Inside Antenna Signal Booster SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 8: Installing Your Hardware
If your FlexPro Kit includes an outside omni antenna and you can only achieve reception of one bar or less, you may need a FlexPro yagi antenna which is capable of targeting carrier antenna towers that are up to 30 miles away. Call or email SureCall for assistance. - Page 9 Note : see next page for outside antenna installation details. Optional 2 - Outside Yagi Optional 1- Outside Omni FlexPro SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
- Page 10 Installing Your Hardware FlexPro’s omni antenna comes with equipment for mounting on a vertical wall. For best results the antenna should be mounted in an upright position. Step 1 :Unscrew antenna from L-mounting bracket on antenna base with hands, or wrench, if needed.
- Page 11 Point the antenna away from the outside antenna. To avoid interference stay a minimum distance of 3 feet from the panel antenna. Note: see next page for outside antenna installation details. SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
- Page 12 Step 4: Tighten fixing nut to secure antenna (do not over-tighten). • Storage and transportation: Store and place in non-extreme room-temperature and dry environment • Attention: This antenna should not be used near open fire or flame SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
- Page 13 This booster is rated for 5-15V input voltage. DO NOT use the booster with a higher voltage power supply. This can damage the booster, cause personal injury, and void your warranty. SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
- Page 14 Installing your Hardware Booster Hardware The following image shows the key hardware components on the cellullar booster. Refer to this image as you install your FlexPro kit components. FME connector to outside antenna Alert LED Alert LED PCS - 1900 Dial...
-
Page 15: Troubleshooting
Double-check all signal booster and antenna cable connections. Be sure your signal booster’s dB gain is turned up to full power on each dial. (see page 8) SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... - Page 16 SureCall. Contact tech support at 1-888- 365-6283 or support@surecall.com, or go to www.surecall.com and log on to online support to receive an RMA. SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
-
Page 17: Specification
Inside Antenna* CM222W 3 dBi 6 dBi Inside Cable CM400-30NN (30 Feet) –1.97 dB –2.67 dB *All equivalent antennas and cables are suitable for use with the FlexPro booster. SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 18: Warranty
SureCall warrants to the Buyer that each of its products, when shipped, will be free from defects in material and workman- ship, and will perform in full accordance with applicable specifications. The limit of liability under this warranty is, at SureCall’s... -
Page 19: Safety Information
SureCall has made a good faith effort to ensure the accuracy of the information in this document and disclaims the implied warranties of merchantability and fitness for a particular purpose and makes no express warranties, except as may be stated in its written agreement with and for its customers.SureCall shall not be held liable to anyone for any indirect, special or consequential damages due to omissions or... - Page 20 WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device. SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
