- Page 1 Fusion 5S 2.0 ™ All-Carrier Five-Band Signal Boosters for Large Home /Small Office User Guide...
-
Page 2: Introduction
IntroductIon INTRODUCTION Thank you for purchasing SureCall’s Fusion5s 2.0 cellular signal booster kit. Fusion5s 2.0 was specifically designed to eliminate frustrations over dropped calls, limited range and slow data rates by amplifying incoming and outgoing cellular signals in homes up to 10,000 square feet. -
Page 3: How It Works
How It works HOW IT WORKS SureCall’s Fusion5s 2.0 is a high-quality bidirectional signal booster that enhances cellular signals to areas that are prone to weak cellular coverage. Fusion5s 2.0 works with two types of antennas: An inside antenna that communicates with your cell phone and an outside antenna that communicates with the cell tower. -
Page 4: Table Of Contents
table of contents TABLE OF CONTENTS INTRODUCTION ......................2 HOW IT WORKS ....................... 3 PACKAGE CONTENTS ....................5 BEFORE INSTALLATION ....................7 Installation Overview....................7 INSTALLATION ......................... 8 Step 1. Find the area with the Strongest Signal ............8 Step 2. Install the Outdoor Antenna ................9 Option A: Outdoor Omni Antenna ............... -
Page 5: Package Contents

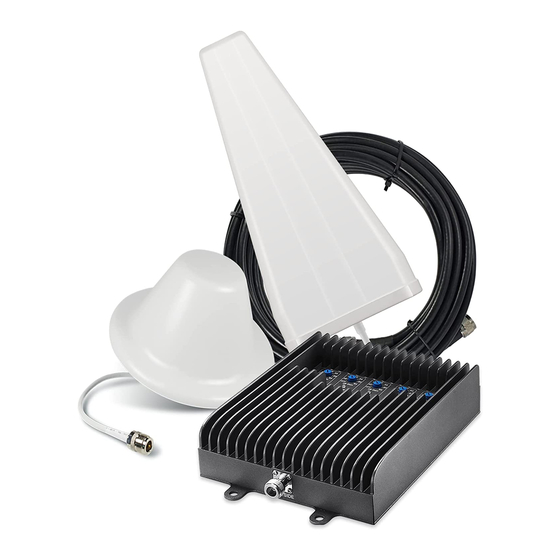

3. Keep the carton and packing material to store the product in case you need to return it. Standard Fusion5s 2.0 signal booster packages include the following items: • SureCall Fusion5s 2.0 booster and power supply • One outside antenna (Omni or Yagi) •... - Page 6 Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC rules. Please contact the FCC for details: Warning 1-888-CALL-FCC. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. » 1-855-846-2654 » https://www.signalbooster.com » order@signalbooster.com...
-
Page 7: Before Installation
before InstallatIon BEFORE INSTALLATION • Prior to securing the location of any booster parts, a “soft install” is recommended as adjustments may be needed to optimize performance. • Make sure you have sufficient separation between outdoor antenna and indoor antennas. At least 50 ft. -
Page 8: Installation
InstallatIon INSTALLATION Step 1. Find the area with the Strongest Signal Using your phone, identify the outside location with the strongest signal for placement of your outside antenna. Generally, this is found above the roofline on the side facing your nearest cell tower and as high as possible –... -
Page 9: Step 2. Install The Outdoor Antenna
InstallatIon Step 2. Install the Outdoor Antenna After identifying the area of strongest signal, choose the surface where you will mount your outside antenna. The location should allow for sufficient separation between the outside antenna and inside antennas. The minimum separating distance recommended for this booster is 50 Ft. Vertical separation is preferred as it is more effective than horizontal separation. - Page 10 InstallatIon To mount antenna to a vertical surface: 1. Using vertical plate of L-bracket, mark position of desired placement. 2. Place vertical L-bracket into desired location and tap the screws, head first, along with sleeve, into stucco 1/2 to 5/8 inches deep into place. (Note: Alternate screws may be required for different surfaces such as wood or concrete.) 3.
-
Page 11: Option B: Outdoor Yagi Antenna
InstallatIon Option B: Outdoor Yagi Antenna Before installing a Yagi directional antenna, note that the antenna should be mounted on a pole or pipe (not provided), at the highest possible location above the roofline where the antenna can “see” your cell tower. The antenna is mounted horizontally and aimed in the direction of your nearest cell tower. -
Page 12: Step 3. Install Indoor Antenna(S)
InstallatIon Step 3. Install Indoor Antenna(s) Indoor antennas may be either omni-directional ceiling mount or directional panel antennas. One indoor cable is provided per antenna. For kits with multiple antennas, a cable splitter and joining cable is also supplied. It is highly recommended that you complete test the placement of your system before a securing the permanent installation for each part. -
Page 13: Option A: Indoor Dome Antenna(S)
Option B: Panel Antenna SureCall’s Inside panel antennas are directional with a 120˚ reach. They should be mounted facing the area signal is needed and away from the outdoor antenna (See “Antenna aiming and Isolation” on page 12). -
Page 14: Step 4. Install The Signal Booster
InstallatIon Step 4. Install the Signal Booster 1. Select a location close to a working AC outlet. Do not expose the signal booster to excessive heat, direct sunlight, moisture, and airtight enclosures. If you’d like to mount the booster to a wall, mark location of screw tabs on the wall in the desired location. -
Page 15: Led Indicators
led IndIcators LED INDICATORS Please note the following information: • Only the presence of red or RED-yellow LEDs indicate the presence of an unresolved issue. • Your booster switches should always be at maximum level unless the control light for a specific frequency band is flashing red or red-yellow. -
Page 16: If You Want To Improve Coverage
FCC. Contact FCC for details: 1-888-CALL-FCC. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. 15.105 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 17: Kitting Information
sPecIfIcatIons Kitting Information Gain/Loss Prod No. Component Description LTE-A LTE-V 800 MHz 1900 MHz 1700 MHz / 2100 MHz 3 dBi 3 dBi 3 dBi 4 dBi 4 dBi / 4 dBi SC-288W Outdoor Antenna* SC-230W 10 dBi 10 dBi 10 dBi 10 dBi 10 dBi / 10 dBi... -
Page 18: Consumer Guidelines
consumer guIdelInes CONSUMER GUIDELINES This is a CONSUMER device BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. -
Page 19: Warranty
SureCall warrants to the Buyer that each of its products, when shipped, will be free from defects in material and workmanship, and will perform in full accordance with applicable specifications. The limit of liability under this warranty is, at SureCall’s option, to repair or replace any product or part thereof which was purchased up to THREE YEARS after May 1, 2014 or TWO YEARS for products purchased before May 1, 2014, as determined by examination by SureCall, prove defective in material and/or workmanship. - Page 20 https://www.signalbooster.com | 855.846.2654 | order@signalbooster.com...
