RF CABLE
INDOOR
CABLE
For kits with a single indoor antenna:
4.
Connect female antenna connector to the indoor antenna cable(s) provided with your kit
and run along route toward the planned location of your booster.
For kits with multiple indoor antennas:
5.
Connect each indoor antenna to indoor antenna cabling provided with your kit and run
along route toward the planned location of your booster. Join all cables to provided cable
splitter.
6.
Connect one end of the provided cable to the remaining port of the cable splitter labeled
INPUT and route cable to the planned location of your booster.
Note: Be sure to provide enough separation from outdoor antenna (at least 50 ft. is
recommended).
SureCall | 1-888-365-6283 | support@surecall.com | www.surecall.com

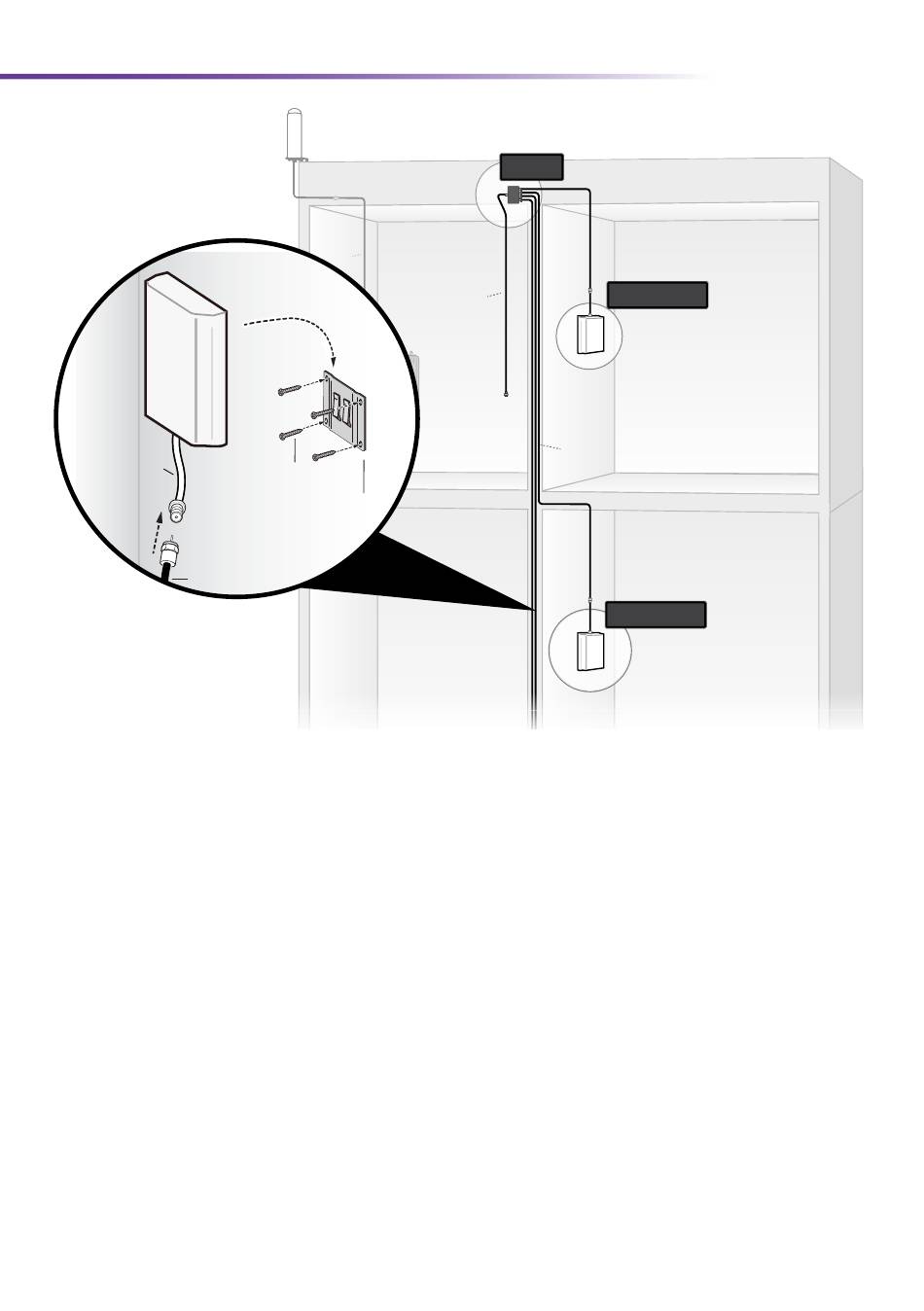

Outdoor Antenna
Outdoor
Cable
SCREWS
MOUNTING PLATE
Splitter
Splitter
Cable
Planned
booster
location
Indoor
Cables
Installation
Indoor Panel
Indoor Panel
15
