- Page 1 Fusion4Home ™ 2G ,3G, 4G Home Signal Booster Kit User Guide...
-
Page 2: Table Of Contents
2,000 square feet. The Fusion4Home provides enhanced cellular signals for multi-carrier 2G, 3G and 4G voice and data reception. If you have any questions while assembling this kit please contact tech support at 1-888-365- 6283 or email us at: support@surecall.com. -
Page 3: How It Works
Inside Antenna Signal Booster This device may be operated ONLY in a fixed location for in-building use SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 4: Package Contents
Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact the FCC for details: 1-888-CALL- FCC. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... - Page 5 Note: Due to the recent change of our company name from Cellphone-Mate (CM) to SureCall (SC) we have changed the prefix on all of our antennas, cables and accessories from CM to SC-. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
-
Page 6: Installation Overview

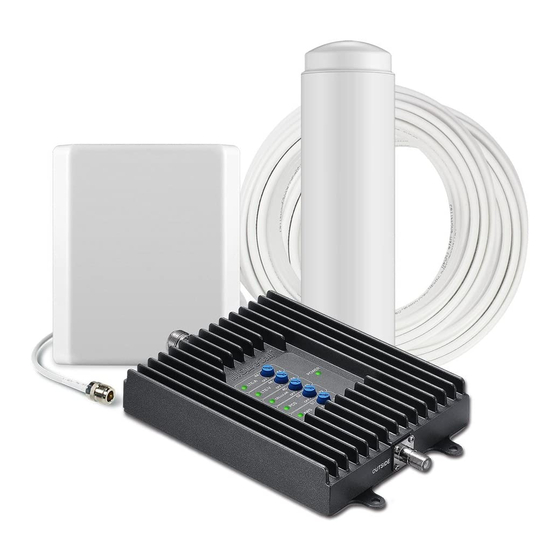

Step 5. Configure gain settings on the signal booster if needed. (See page 14 for directions as needed) Outside Antenna Coaxial Cable Inside Antenna Signal Booster SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 7: Installing Your Hardware
SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... - Page 8 10 meters above ground. Mobile and portable stations operating in these bands must employ a means for limiting power to the minimum necessary for successful communications. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
- Page 9 If desired surface for installation plate is wood or concrete, wood or masonry screws for L-plate will have to be purchased separately. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
-
Page 10: Installing The Panel Antenna/Signal Booster
Installing Your Hardware Installing the Panel Antenna: Connect the antenna by firmly screwing it onto the inside port of the Fusion4Home Booster. For best results, the antenna should be mounted in an upright position. The right angle antenna con- nects directly to the amplifier port labeled “Inside”. -
Page 11: Booster Hardware
8. Turn the booster’s power switch on. Booster Hardware The following image shows the key hardware components on the booster. Refer to this image as you install your Fusion4Home kit components. N connector to inside antenna Power Switch Connector to Inside Antenna... -
Page 12: Configure Gain Settings
Installing Your Hardware Step 5. Configure Gain Settings The SureCall gain dials should always be at maximum level unless the control light in a specific band is flashing red or flashing red-yellow. In either of these cases, the first action should be to increase the antenna isolation between the inside and outside antenna as much as possible and restart the booster. -
Page 13: Troubleshooting
Be sure the power source is not controlled by a switch that can remove power from the outlet. Check the green POWER LED on the signal booster. If it is OFF, return the power supply to SureCall. Contact tech support at 1-888-365-6283 or support@surecall.com, or go to www.surecall.com and log on to online support to... -
Page 14: Specification
Power Consumption: <15W Operation Temperature: -4º to +158º F Dimensions: 7.875 x 5 x 1.188 inches Weight: 2 LB 3 oz FCC ID / IC: RSNFUSION4H / 7784A-FUSION4H SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 15: Kitting Information
5 dBi 4 dBi / 5 dBi * All equivalent antennas and cables are suitable for use with the Fusion4Home SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 16: Warranty
SureCall warrants to the Buyer that each of its products, when shipped, will be free from defects in material and workman- ship, and will perform in full accordance with applicable specifications. The limit of liability under this warranty is, at SureCall’s... -
Page 17: Safety Information
SureCall has made a good faith effort to ensure the accuracy of the information in this document and disclaims the implied warranties of merchantability and fitness for a particular purpose and makes no express warranties, except as may be stated in its written agreement with and for its customers. - Page 18 SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
