Booster Controls

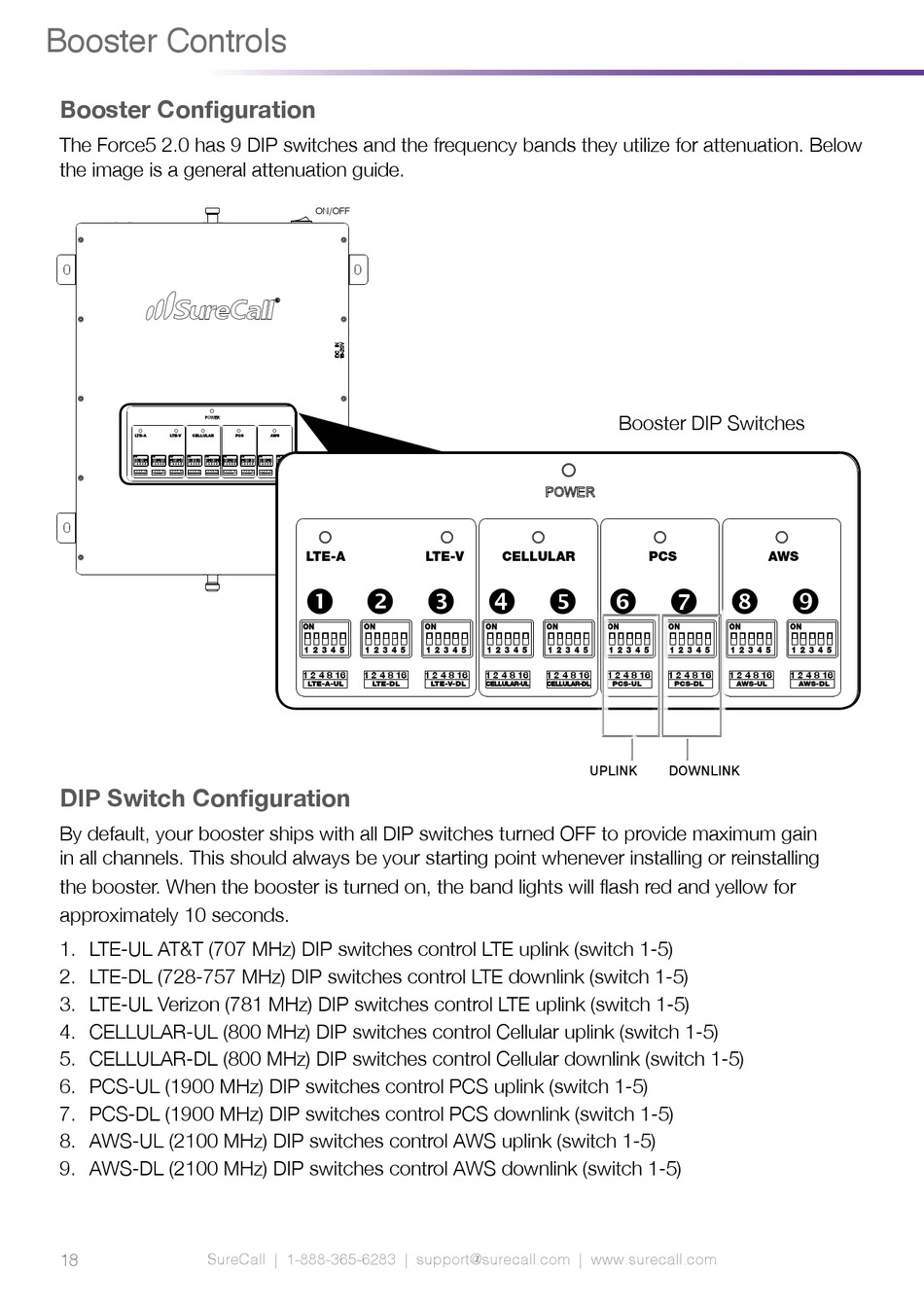

Booster Configuration

The Force5 2.0 has 9 DIP switches and the frequency bands they utilize for attenuation. Below
the image is a general attenuation guide.
LTE-A LTE-V CELLULAR
ON ON ON ON ON
1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5
1 2 4 8 16 1 2 4 8 16 1 2 4 8 16 1 2 4 8 16 1 2 4 8 16
LTE-A-UL LTE-DL LTE-V-DL CELLULAR-UL CELLULAR-DL

DIP Switch Configuration

By default, your booster ships with all DIP switches turned OFF to provide maximum gain
in all channels. This should always be your starting point whenever installing or reinstalling
the booster. When the booster is turned on, the band lights will flash red and yellow for
approximately 10 seconds.
1. LTE-UL AT&T (707 MHz) DIP switches control LTE uplink (switch 1-5)
2. LTE-DL (728-757 MHz) DIP switches control LTE downlink (switch 1-5)
3. LTE-UL Verizon (781 MHz) DIP switches control LTE uplink (switch 1-5)
4. CELLULAR-UL (800 MHz) DIP switches control Cellular uplink (switch 1-5)
5. CELLULAR-DL (800 MHz) DIP switches control Cellular downlink (switch 1-5)
6. PCS-UL (1900 MHz) DIP switches control PCS uplink (switch 1-5)
7. PCS-DL (1900 MHz) DIP switches control PCS downlink (switch 1-5)
8. AWS-UL (2100 MHz) DIP switches control AWS uplink (switch 1-5)
9. AWS-DL (2100 MHz) DIP switches control AWS downlink (switch 1-5)
18
SureCall | 1-888-365-6283 | support@surecall.com | www.surecall.com
ON/OFF
PCS AWS
ON ON ON ON
1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5
1 2 4 8 16 1 2 4 8 16 1 2 4 8 16 1 2 4 8 16
PCS-UL PCS-DL AWS-UL AWS-DL
LTE-A
        
ON ON
1 2 3 4 5 1 2 3 4 5
1 2 4 8 16 1 2 4 8 16
LTE-A-UL LTE-DL
Top View
INSIDE
Network
USB
Bottom View
OUTSIDE
LTE-V CELLULAR
ON ON ON
1 2 3 4 5 1 2 3 4 5 1 2 3 4 5
1 2 4 8 16 1 2 4 8 16 1 2 4 8 16
LTE-V-DL CELLULAR-UL CELLULAR-DL
UPLINK
Booster DIP Switches
PCS AWS
ON ON ON
1 2 3 4 5 1 2 3 4 5 1 2 3 4 5
1 2 4 8 16 1 2 4 8 16 1 2 4 8 16
PCS-UL PCS-DL AWS-UL
DOWNLINK
ON
1 2 3 4 5
1 2 4 8 16
AWS-DL
