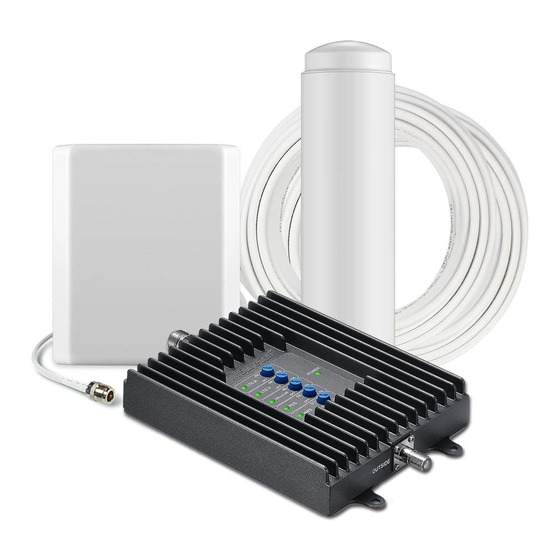

- Page 1 Fusion4Home ™ 2G ,3G, 4G Home Signal Booster Kit User Guide...
-
Page 2: Table Of Contents
6,000 square feet. The Fusion4Home provides enhanced cellular signals for multi-carrier 2G, 3G and 4G voice How It Works Pg. -
Page 3: How It Works
Outside Antenna Coaxial Cable Inside Antenna Signal Booster SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 4: Package Contents
Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact the FCC for details: 1-888-CALL- FCC. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... - Page 5 Note: Due to the recent change of our company name from Cellphone-Mate (CM) to SureCall (SC) we have changed the prefix on all of our antennas, cables and accessories from CM to SC-. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
-
Page 6: Installation Overview
1710-1755 MHz band are limited to a maximum antenna height of 10 meters above ground. Mobile and portable stations operating in these bands must employ a means for limiting power to the minimum necessary for successful communications. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 7: Installing Your Hardware
SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 8: Installing The Outside Anntenna
1710 - 1755 MHz uplink 2110 - 2155 downlink bands, the users or installation manual must contain the 30 foot height restriction requirements per FCC 27.50(d)(4). SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... - Page 9 Installing Your Hardware Fusion4home’s omni antennas come with equipment for mounting on a vertical wall. For best results the antenna should be mounted in an upright position. Step 1: Unscrew antenna from L-mounting bracket on antenna base with hands, or wrench, if needed.
-
Page 10: Installing The Insides Anntenna
Note: As you can see from the table above, acquiring the recommended inside and outside antenna separation optimizes coverage significantly. Any reduced antenna separation reduces the booster’s coverage. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... - Page 11 For best results, the antenna should be mounted in an upright position. The right angle antenna cable connects directly to the amplifier port labeled “Inside”. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
-
Page 12: Installing Signal Booster
2. If you’d like to mount the booster to a wall, mark location of screw tabs on the wall in the desired location 3. Use supplied screws or appropriate screws for surface of mounting location and drill SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... - Page 13 8. Turn the booster’s power switch on. Booster Hardware The following image shows the key hardware components on the cellullar booster. Refer to this image as you install your Fusion4Home kit components. N connector to inside antenna Power Switch Connector to Inside Antenna...
-
Page 14: Configure Gain Setting
3. Be sure your signal booster’s dB gain is turned up to maximum gain on each dial. WARNING: Do not adjust the uplink and downlink dB attenuation settings more than 20dB. This could cause the booster to shut down SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 15: Troubleshooting
Be sure the AC outlet is working and is not controlled by a wall turn ON switch that can cut power to the outlet. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 16: Specification
N Female (both ends ) RF Connectors: Power Consumption: <15W Operation Temperature: -4ºF to +158ºF Dimensions: 7-7/8” X 5” X 1-3/16” Weight: 2 LB 3 oz FCC (USA): RSNFUSION4H SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 17: Kitting Information
*All equivalent antennas and cables are suitable for use with the Fusion4Home booster. Note: Due to the recent change of our company name from Cellphone-Mate (CM) to SureCall (SC) we have changed the prefix on all of our antennas, cables and accessories from CM to SC-. -
Page 18: Warranty
SureCall warrants to the Buyer that each of its products, when shipped, will be free from defects in material and workman- ship, and will perform in full accordance with applicable specifications. The limit of liability under this warranty is, at SureCall’s... -
Page 19: Safety Information
SureCall has made a good faith effort to ensure the accuracy of the information in this document and disclaims the implied warranties of merchantability and fitness for a particular purpose and makes no express warranties, except as may be stated in its written agreement with and for its customers.SureCall shall not be held liable to anyone for any indirect, special or consequential damages due to omissions or... - Page 20 SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
