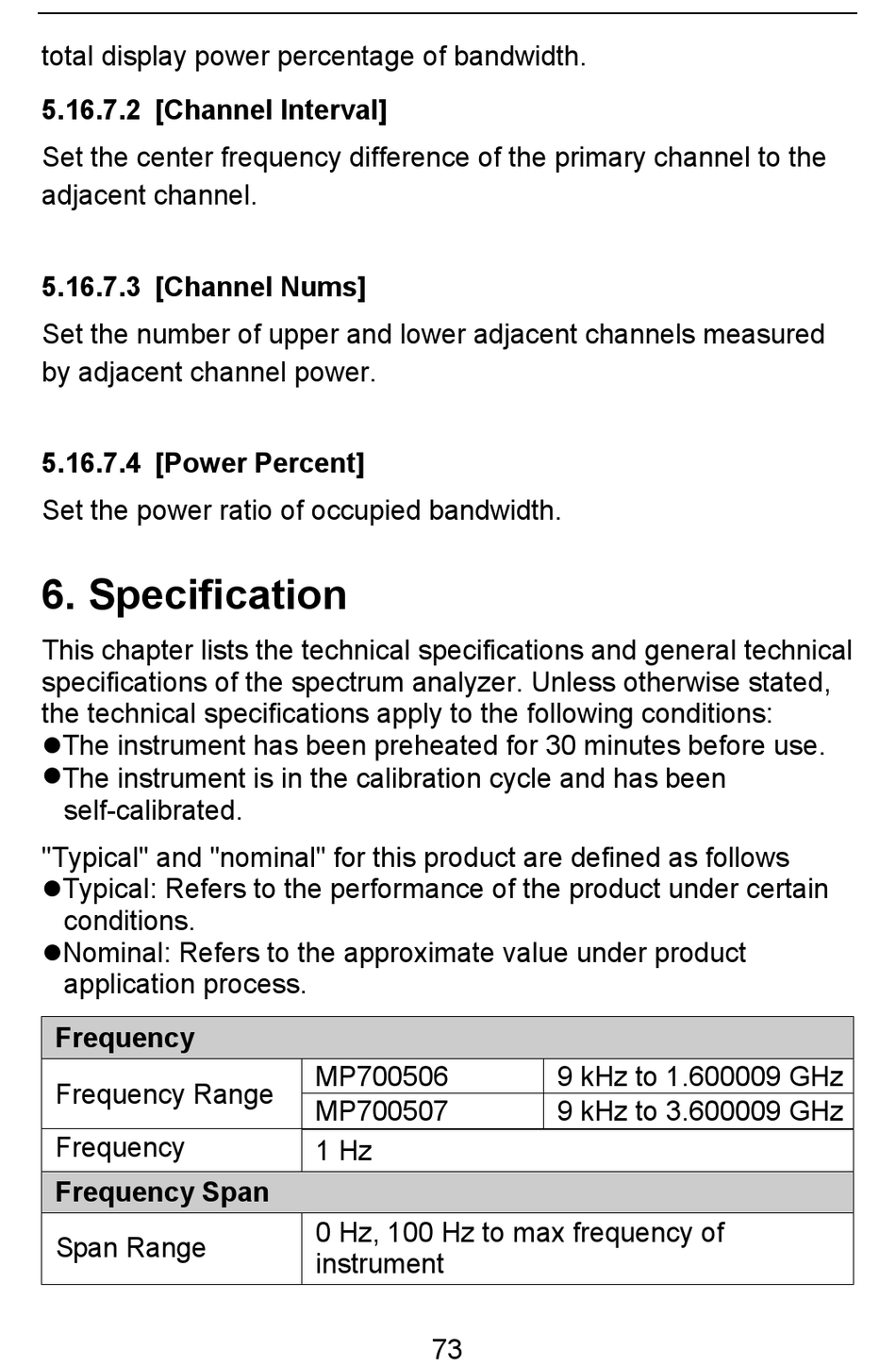

total display power percentage of bandwidth.
5.16.7.2 [Channel Interval]
Set the center frequency difference of the primary channel to the
adjacent channel.
5.16.7.3 [Channel Nums]
Set the number of upper and lower adjacent channels measured
by adjacent channel power.
5.16.7.4 [Power Percent]
Set the power ratio of occupied bandwidth.

6. Specification

This chapter lists the technical specifications and general technical
specifications of the spectrum analyzer. Unless otherwise stated,
the technical specifications apply to the following conditions:
The instrument has been preheated for 30 minutes before use.
 The instrument is in the calibration cycle and has been
self-calibrated.
"Typical" and "nominal" for this product are defined as follows
Typical: Refers to the performance of the product under certain
conditions.
Nominal: Refers to the approximate value under product
application process.
Frequency
Frequency Range
Frequency
Frequency Span
Span Range
MP700506
MP700507
1 Hz
0 Hz, 100 Hz to max frequency of
instrument
73
9 kHz to 1.600009 GHz
9 kHz to 3.600009 GHz
