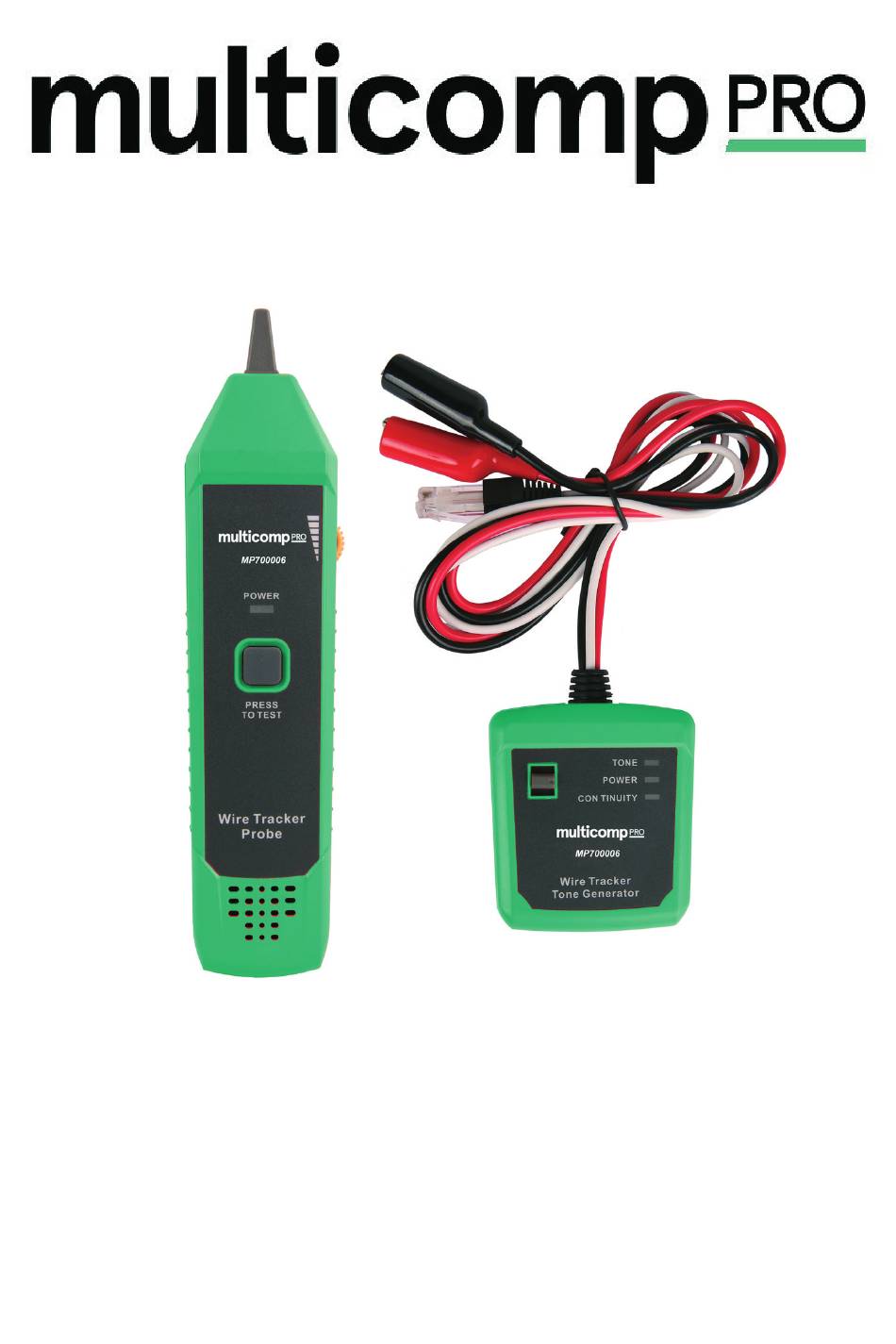

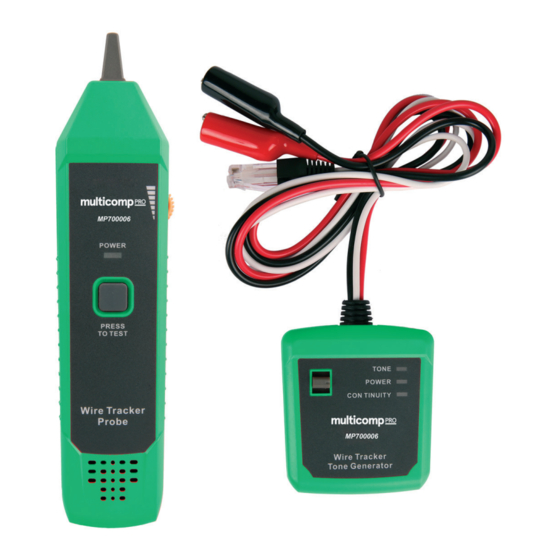

- Page 1 Wire Tracker Probe with Tone Generator Model: MP700006...
- Page 2 IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. Warning: Do not connect to circuits carrying AC voltage in tone or polarity modes. • The maximum voltage allowed across the leads is 60V DC in tone and polarity modes.
- Page 3 FUNCTIONS Tracing Cables • On the Tone Generator set the function switch to TONE position. • The TONE and POWER LEDs will illuminate. • Connect the red test lead to the wire in the cable you wish to trace and connect the black lead to ground.
- Page 4 Continuity Test • Connect the red test lead to one wire and the black lead to the other wire of the telephone line being tested. • On the Tone Generator put the function switch to CONTINUITY position. • If the CONTINUITY LED turns green if there is an electrical path between the connection points.
