Summary of Contents for multicomp pro MP770291

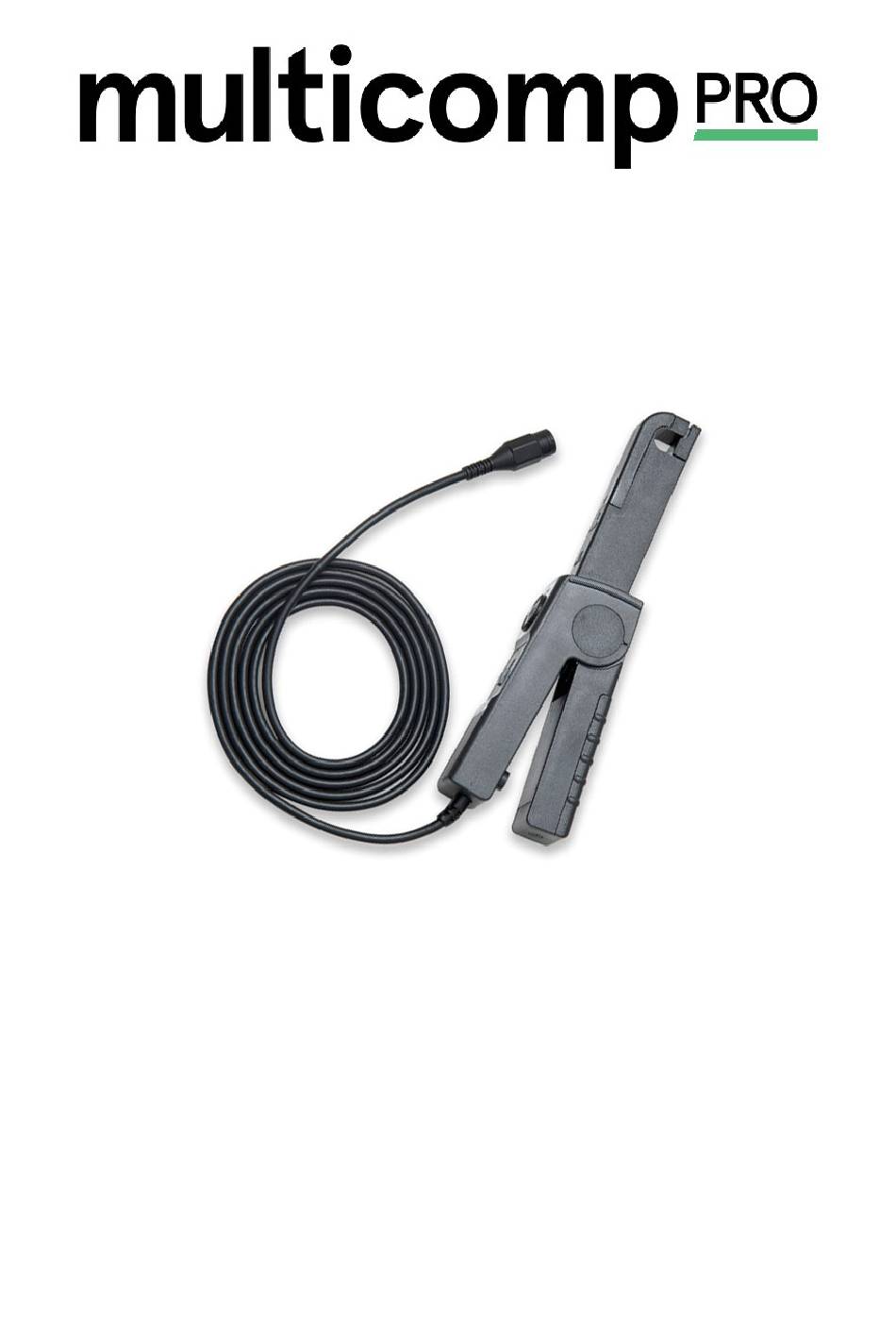

- Page 1 Current Probe MP770291...
- Page 2 Table of Contents 1. Overview.......................... 1 2. Specification ........................1 3. Operating environment ....................2 4. Operation ......................... 2 5. Maintenance ........................2...

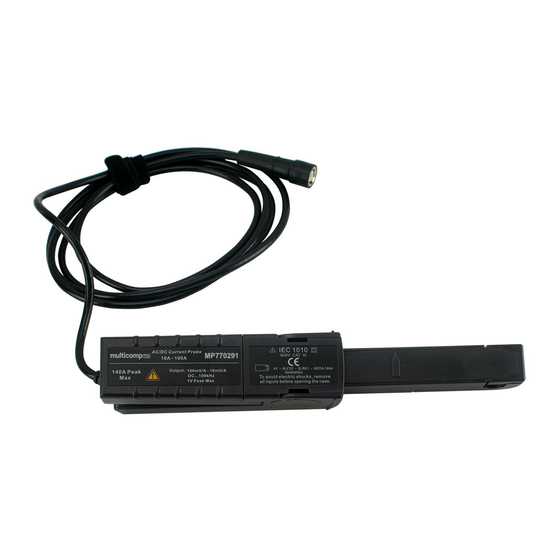

- Page 3 1. Overview The MP770291 clamp is a current probe for oscilloscope which uses a Hall effect cell for the measurement of DC or AC current without modification of the installation (without switching off the circuit) It can measure currents from 50 mA to 100 A peak.
- Page 4 3. Operating environment 1). Operating. Temp：0～+50℃ 2). Storage. Temp：-3～+80℃ 3). Operation relative humidity： +10℃～+30℃：85±5% relative humidity（non-condensing） ： +40℃～+50℃：45±5% relative humidity（non-condensing） 4). Operating height：0~2000m 4. Operation 1). To make a current measurement, switch on the clamp by selecting the 100mV/A range. Check that the battery indicator (green) is lit and that the <<OL>>indicator is not lit.
