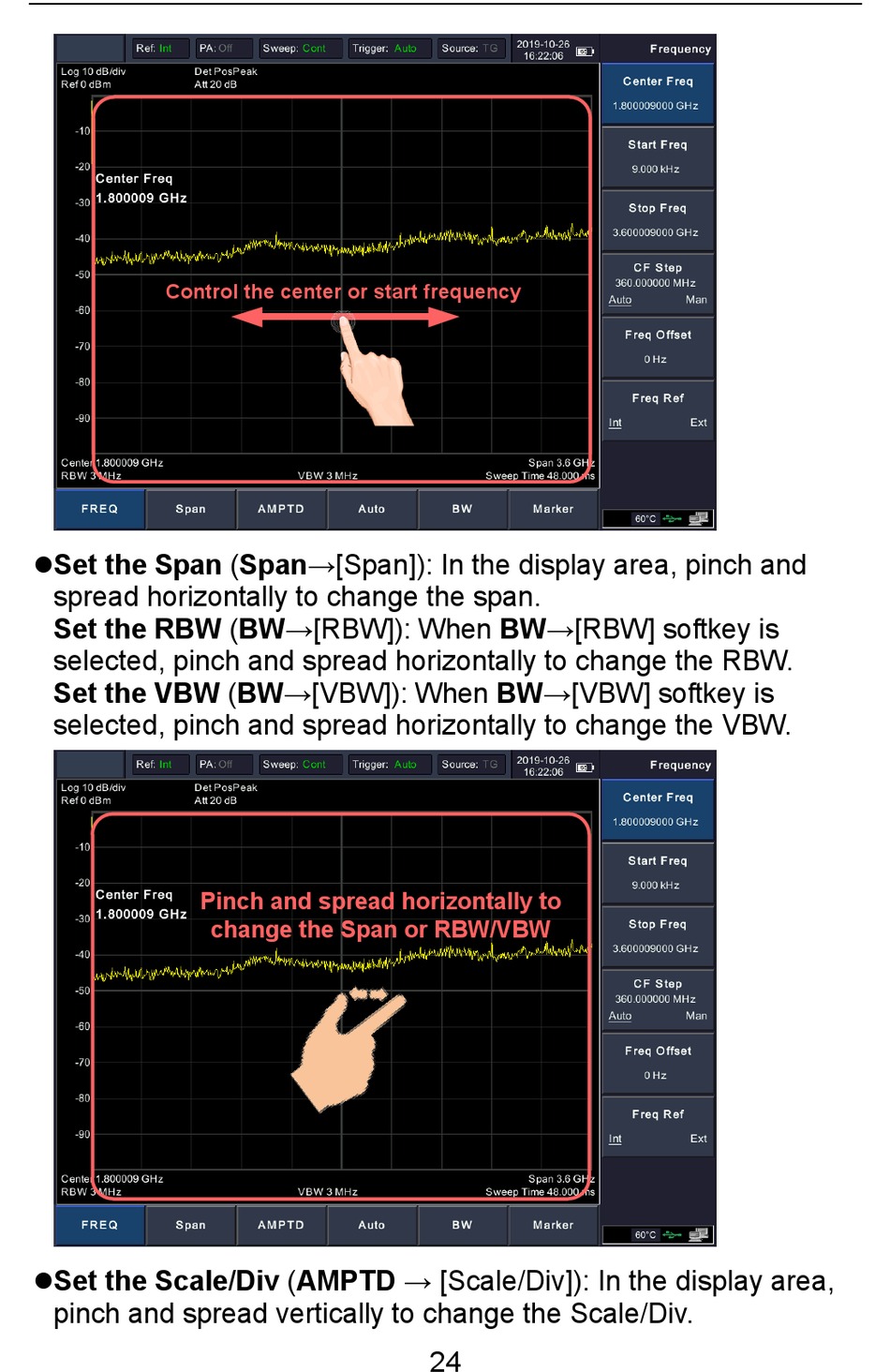

Control the center or start frequency
Set the Span (Span→[Span]): In the display area, pinch and
spread horizontally to change the span.
Set the RBW (BW→[RBW]): When BW→[RBW] softkey is
selected, pinch and spread horizontally to change the RBW.
Set the VBW (BW→[VBW]): When BW→[VBW] softkey is
selected, pinch and spread horizontally to change the VBW.
Pinch and spread horizontally to
Set the Scale/Div (AMPTD → [Scale/Div]): In the display area,
pinch and spread vertically to change the Scale/Div.
change the Span or RBW/VBW
24
