multicomp pro MP700506 User Manual

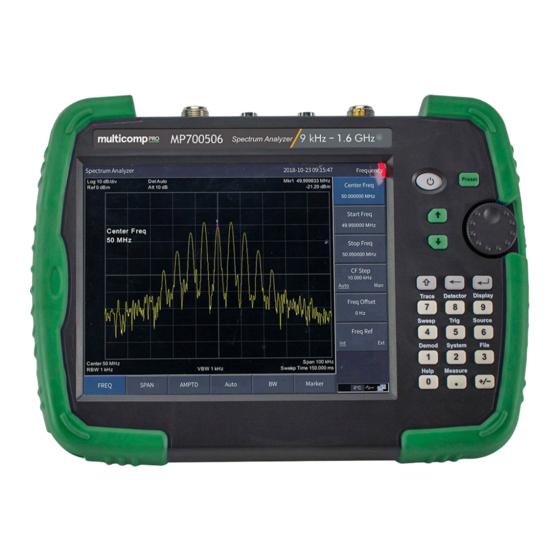

Handheld spectrum analyzer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MP700506 and MP700507
Handheld Spectrum Analyzer
User Manual
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP700506 and is the answer not in the manual?

Questions and answers

Related Manuals for multicomp pro MP700506

Summary of Contents for multicomp pro MP700506

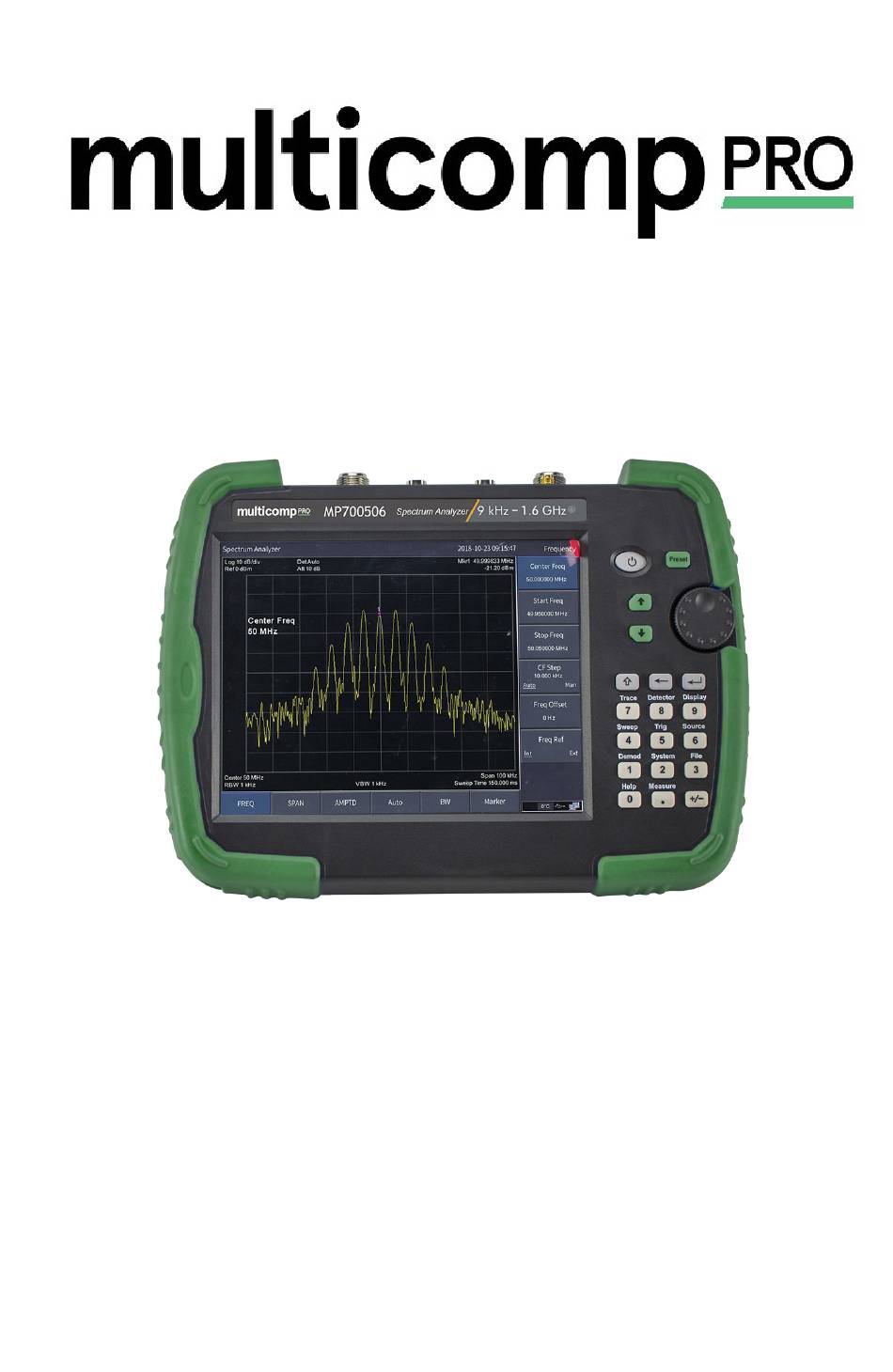

  • Page 1 MP700506 and MP700507 Handheld Spectrum Analyzer User Manual...

  • Page 2: Table Of Contents

    Table of contents List of figures ................ iv List of tables ................iv 1. General Safety Requirements .......... 1 2. Safety Terms and Symbols ..........4 3. Document Overview ............5 4. Quick Start ................6 4.1 General Inspection ............6 4.2 Safety Precaution before Operation ......
  • Page 3 5.13 【Demod】 hardkey ..........57 5.14 【System】 hardkey ..........58 5.15 【File】 hardkey ............67 5.16 【Measure】 hardkey ..........69 6. Specification ..............73 7. Troubleshooting .............. 81 8. Appendix................82 Appendix A: Enclosure ............82 Appendix B: General Care and Cleaning ......83 Appendix C: USB Disk Requirements ......
  • Page 4 List of figures Figure 4-1 Front panel ..............9 Figure 4-2 Top panel ..............10 Figure 4-3 Rear panel............... 12 Figure 4-4 User interface ............13 Figure 4-5 Function softkeys ........... 15 Figure 4-6 Shift key and function hardkeys ......17 Figure 4-7 Numeric keypad .............

  • Page 5: General Safety Requirements

    1. General Safety Requirements Before use, please read the following safety precautions to avoid any possible bodily injury and to prevent this product or any other connected products from damage. To avoid any contingent danger, ensure this product is only used within the ranges specified.
  • Page 6 do not operate in a humid environment. Do not operate in an explosive atmosphere. In order to  avoid damages to the device or personal injuries, it is important to operate the device away from an explosive atmosphere. Keep product surfaces clean and dry. To avoid the influence ...
  • Page 7 Handling Safety. Please handle with care during  transportation to avoid damages to buttons, control, interfaces and other parts on the panels.

  • Page 8: Safety Terms And Symbols

    2. Safety Terms and Symbols Safety Terms Terms in this manual (The following terms may appear in this manual): WARNING Warning indicates conditions or practices that could result in injury or loss of life. CAUTION Caution indicates the conditions or practices that could result in damage to this product or other property.

  • Page 9: Document Overview

    3. Document Overview  Quick Start This chapter states the matters need to attention before first power on, how to power on at first time, introduces spectrum analyzer’s front/rear panel and user interface explains how to use the instrument with a measurement example demonstration.

  • Page 10: Quick Start

    4. Quick Start This chapter states the matters need to attention before first power on, and how to power on at first time, introduces the spectrum analyzer’s front/top panel and user interface, explains how to use the instrument with a measurement example demonstration. 4.1 General Inspection When you receive your new instrument, it is recommended that you check the instrument following these steps:...

  • Page 11: Table 4-1 Ac-Dc Adapter Requirement

    AC-DC adapter requirement Table 4-1 AC-DC adapter parameter Compatible range Input Voltage 100 V - 240 VAC, 50/60 Hz Output Voltage 12 - 15 VDC Max. Power 45 W 4.2.2 Electro-static Discharge (ESD) Protection ESD is an issue often ignored by users. Damage from ESD on the instrument is unlikely to occur immediately but will significantly reduce the reliability of it.

  • Page 12: First Time To Power On

    4.3 First Time to Power on Note: Keep the air vents always clear of obstructions for proper ventilation and cooling of the instrument. CAUTION Use only the original AC-DC adapter or originally supplied battery for the power source. The maximum RF input level of an average continuous power is 30 dBm (or 50 VDC signal input).

  • Page 13: Front Panel Overview

    4.4 Front Panel Overview Figure 4-1 Front panel NO. Description LCD touchscreen. The touchscreen can be specified in ① ]→[Control ]→ [TouchControl 【System】→[Setting ► ► ► Light Sensor: Adjusts the screen backlight according to ② the environmental light. This state can be specified in 【Display】→...

  • Page 14: Top Panel Overview

    Shift key: Press the Shift key to active it, the light is on. ⑦ When the Shift key is active, pressing a number key will execute the upper function. Long press the Shift key to active it persistently. To switch to the brief active status, short press the Shift key.
  • Page 15 RF Input N type female connector. Connector for RF ④ connector input. (50 Ω) CAUTION Input voltage at RF input port must not be higher than 50 V DC to avoid damage to the attenuator and input mixer tracking generator. When input attenuator is higher than 10 dB, the RF port input signal must be less than +30 dBm.

  • Page 16: Rear Panel Overview

    4.6 Rear Panel Overview Figure 4-3 Rear panel NO. Name Battery compartment ① Air vents ② Tilt stand ③ 4.7 User Interface Overview Figure below illustrates the user interface, with touch screen menu keys, top bar, and measurement settings and results around the graph area.

  • Page 17: Figure 4-4 User Interface

    Figure 4-4 User interface NO. Name Description Related Key Reference Set the reference frequency FREQ → [Freq ① frequency as Int (internal) or Ext Ref] (external) input Preamplifier Turn on/off the preamplifier AMPTD→ ② [Preamplifier] Sweep status Set the sweep status to ③...
  • Page 18 Date/time Display system date and ⑥ 【System】→ time [Setting] → [Date/Time] Battery Show the battery level ⑦ charge indicator Menu title Function of current menu ⑧ belongs to Marker Marker Display frequency and ⑨ information amplitude of current marker GPS/BDS Shows the GPS/BDS ⑩...

  • Page 19: Function Keys

    Center Display center frequency or FREQ→ [Center ⑲ frequency or start frequency Freq] or [Start start Freq] frequency BW→[RBW] Resolution Display resolution ⑳ bandwidth bandwidth Function Press to active the submenu ㉑ softkeys on the right Marker Marker Display current activated ㉒...
  • Page 20 Activates the frequency sweep span function, Span and set Full Span\Zero Span\Last Span. Activates the reference level function, and AMPTD accesses the amplitude softkeys, with which you set functions that affect data on the vertical axis. Searches the signal automatically within the full Auto frequency range.

  • Page 21: Figure 4-6 Shift Key And Function Hardkeys

    Shift key and function hardkeys Figure 4-6 Hardkeys Description Accesses the softkeys that allow you to store 【Trace】 and manipulate trace information. Accesses the softkeys that allow you to 【Detector】 configure detector functions. Accesses the softkeys that allow you to control what is displayed on the analyzer, 【Display】...

  • Page 22: Parameter Input

    Press the Help key to activate the help 【Help】 system. Press the Help key again to exit. Accesses the softkeys that let you make transmitter power measurements such as ACPR (adjacent channel power), channel 【Measure】 power, and OBW (occupied bandwidth), etc. Sets the parameters for the selected measurement function in [Meas Setup ►...

  • Page 23: Figure 4-8 The Rotary Control

    Backspace key (1) During the process of parameter editing, this key will delete the characters on the left side of the cursor. (2) While in the process of file name editing, pressing this key will delete characters that have been entered. Enter key When pressed, the system will complete the input process and insert a default measurement unit for the parameter...

  • Page 24: Build-In Help

    4.10 Built-in Help The built-in help provides information that refers to every function key and menu key on the front panel. Users can view this help information if required. 1.How to acquire built-in help Press Shift key, then【Help】key; a prompt about how to obtain help information will be shown 2.Page up and down If there is more than one page of information, you can read the...

  • Page 25: Touchscreen Controls

    4.11 Touchscreen Controls The LCD is touchable, you can control the analyzer by different gestures. The touchscreen can be specified in【System】→ [Setting ] → ► [Control ] → [TouchControl ]. You can turn on/off the touch ► ► control in this submenu. The instruction of touchscreen controls is as below.
  • Page 26 Capture the screen (【System】→ [Save/Recall ] → [Screen ► Pixmap ]): Double-tap in the display area to quickly capture a ► PNG image of the current screen display. If a USB device is inserted, the image will be saved to USB device, otherwise the local memory.
  • Page 27 Single-tap to move the active marker to the desired frequency Set the reference level (AMPTD → [Ref Level]): Swipe up or down in the display area. Control the reference level Set the center or start frequency (FREQ→ [Center Freq] or [Start Freq]): Swipe left or right in the display area.
  • Page 28 Control the center or start frequency Set the Span (Span→[Span]): In the display area, pinch and spread horizontally to change the span. Set the RBW (BW→[RBW]): When BW→[RBW] softkey is selected, pinch and spread horizontally to change the RBW. Set the VBW (BW→[VBW]): When BW→[VBW] softkey is selected, pinch and spread horizontally to change the VBW.
  • Page 29 Pinch and spread vertically to change the Scale/Div...

  • Page 30: Basic Measurement

    4.12 Basic Measurement Basic measurements include, input signal frequency and amplitude display, marked by a frequency marker. Follow these four simple steps below to implement input signal measurement. a) Setting center frequency; b) Setting span and resolution bandwidth; c) Activate marker; d) Setting amplitude.

  • Page 31: Figure 4-10 Full Span

    Figure 4-10 Full Span To clearly observe the signal, reduce the frequency span to 1 MHz and set the center frequency to 100MHz. 2) Setting center frequency Press FREQ softkey on the bottom, select [Center Freq] on the right submenu. Input "100" and select the unit as MHz on the right softkeys.

  • Page 32: Figure 4-11 Set Frequency Span

    Figure 4-11 Set frequency span 4) Activate marker Press Marker softkey on the bottom, select [Marker ] on the ► right submenu. Press the softkey to select [Marker 1 2 3 4 5], select Marker 1, the marker is located at horizontal center by default, that is the signal peak point or its neighbor.

  • Page 33: Figure 4-12 Set Reference Level

    value near the top of the grid. The balance between the signal peak value and noise is dynamic range. Figure 4-12 Set reference level...

  • Page 34: Menu Interpretation

    5. Menu Interpretation This chapter provides you with the information on the function softkeys and hardkeys of the spectrum analyzer. 5.1 【FREQ】 bottom softkey Key access: [FREQ] softkey at the bottom of the screen The frequency range of a channel can be expressed by either of two groups of parameters: Start Frequency and Stop Frequency;...
  • Page 35 5.1.2 [ Start Freq ] Sets the start frequency of the sweep. When pressed, the frequency mode is switched to Start Freq and Stop Freq in order to enter the desired parameter data. Key Points:  The span and center frequency are changed automatically according to the start frequency.
  • Page 36 or equals 25% of RBW while in Zero span mode; in Manual mode, you can set the step using the numeric, step keys or control. Then activate 【Center Frequency】, press step, center frequency will change as setting step.  After you set an appropriate frequency step and select center frequency, you can use using up and down direction keys to switch between measurement channels in a specified step in order to sweep the adjacent channels manually.

  • Page 37: Span】 Bottom Softkey

    5.2 【Span】 bottom softkey Key access: [Span] softkey at the bottom of the screen Set the spectrum analyzer to span mode. When press 【Span】 softkey, [Span], [Full Span], [Zero Span] and [Last Span] submenu will be available along the right side of the display. You can modify span using the numeric keys, control or direction keys.

  • Page 38: Amptd】 Bottom Softkey

    5.2.3 [Zero Span] Sets the span of the analyzer to 0 Hz. Both the start and stop frequencies will equal the center frequency and the horizontal axis will denote time. The analyzer here is measuring the time domain characteristics of amplitude, located at the corresponding frequency point.
  • Page 39 Reference level located at the top of axis grid. Measurement near the reference level would gain better accuracy, but input signal amplitude should not exceed the reference level; if it exceeds, the signal will be compressed and distorted, result in wrong measurement.
  • Page 40 5.3.3 [Scale/Div] Sets the logarithmic units per vertical grid division on the display. Select 1,2,4 or 10dB log amplitude scale. It’s 10dB/div by default. Every activated marker is with dB as unit, difference between two markers is treated as marker difference under dB unit. Key points: ...
  • Page 41 5.3.5 [Ref Offset] Assigns an offset to the reference level to attempt to compensate for gains or losses generated between the device under measurement and the analyzer. Key points:  The changing of this value changes both the readout of the reference level and the amplitude readout of the marker, but will not impact the position of the curve on the screen.

  • Page 42: Auto】 Bottom Softkey

    5.4 【Auto】 bottom softkey Key access: [Auto] softkey at the bottom of the screen Searches for signals automatically throughout the full frequency range, adjusts the frequency and amplitude to their optimum and realizes one-key signal search and auto setting of parameters. Key points: some parameters such as reference level, scale, and input attenuation may be changed during the auto tune.
  • Page 43 5.5.3 [VBW Auto Man] Sets the desired video bandwidth in order to remove the band noise. Set the video resolution displays in function area, ranging from 10Hz to 30MHz by sequence step. You can modify this parameter by numeric key, step key or control. The underline under Auto or Manual means Auto mode or Manual mode.

  • Page 44: Marker】 Bottom Softkey

    5.6 【Marker】 bottom softkey Key access: [Marker] softkey at the bottom of the screen Markers are diamond- shaped characters that identify points of traces. The submenu on the right of the screen includes 【Marker►】, 【MarkerFctn►】, 【Marker→►】, 【Peak►】. 5.6.1【Marker ►】 right softkey Key access: [Marker] bottom softkey →...
  • Page 45 be track A or track B). If both tracks are active or both tracks are in static display mode, the marker will read data from track A. Touchscreen Control: When a marker is active, single-tap in the display area (at any level) to quickly move the marker to the desired frequency.
  • Page 46 of the screen.  The readout resolution of the X-axis corresponds to the span and sweep points. For higher resolution, add sweep points or reduce the span. 5.6.1.4 [Delta] One of the marker types, which is used to measure the delta values of X (Frequency or Time) and Y (Amplitude) between the Reference point and certain point on the trace.
  • Page 47 5.6.1.5 [Off] Turn off the selected markers. 5.6.1.6 [All Off] Turns off all the opened markers and the related functions. The marker won’t show again. 5.6.1.7 [Marker Table On Off] Turns on or off the display of the marker table. 5.6.2【MarkerFctn ►】right softkey Key access: [Marker] bottom softkey →...
  • Page 48 5.6.2.3 [Marker Noise On Off] Turn on or off the marker noise function. The function of marker noise is applied to the selected marker, and reads the noise Power Spectral Density at the marked point. When turned on, the average noise level at the marked point is normalized to 1 Hz bandwidth for noise power.
  • Page 49 frequency of the current marker.  In Delta marker mode, the center frequency will be set to the frequency at which the Delta Marker is located.  The function is not available in zero span mode. 5.6.3.2 [Mkr->CF Step] Sets the center frequency step of the analyzer to the frequency of the current marker.
  • Page 50 amplitude of the current marker.  In Delta marker mode, the reference level will be set to the amplitude at which the Delta Marker is located. 5.6.3.6 [MkrΔ->Span] Sets the span of the analyzer to the frequency difference between the two markers in Delta marker mode. 5.6.3.7 [MkrΔ->CF] Sets the center frequency of the analyzer to the frequency difference between the two markers in Delta marker mode.

  • Page 51: Trace】 Hardkey

    5.6.4.3 [Left Peak] Searches the nearest peak located to the left of the current marker. The peak is then identified with a marker. 5.6.4.4 [Right Peak] Searches the nearest peak located to the right of the current marker. The peak is then identified with a marker. 5.6.4.5 [Min Search] Searches the peak with the minimum amplitude on the trace and identifies it with a marker.
  • Page 52 5.7.1 [Trace 1 2 3 4 5 ] Select trace, the analyzer offers 1,2,3,4,5 trace. The selected trace number in the menu will be underlined. 5.7.2 [Clear Write] Erase the trace data, and updates current display during following sweeps of the analyzer. 5.7.3 [Max Hold] Maintains the maximum for each point of the trace, and updates each trace point if a new maximum level is detected in successive...

  • Page 53: Detector】 Hardkey

    3) [2 ↔ 3] Exchange the trace register 2 data with the trace register 3, and place them in display mode. 4) [1 → 3] Change the trace register 1 data to the trace register 3, and place the trace register 3 data in display mode. 5) [2 →...
  • Page 54 Neg Peak Negative peak detector is used in most cases with the self-test of the spectrum analyzer and is rarely used in the measurement. It is able to restore the modulation envelope of the AM signal well. Normal Display pos peak and neg peak alternately when noise is detected, or it only display pos peak.

  • Page 55: Display】 Hardkey

    displays at the corresponding pixel. This mode is usually used for video averaging and noise frequency Maker. 5.8.5 [RMS Avg] Set the detector to the RMS Average detector mode. This mode calculates the RMS average power of all the samples in the sample bucket.
  • Page 56 selected window. Press the key for the first time to enlarge the selected window to the entire graphic display area. Press this button again to exit the entire graphic display area and restore the multi-window display mode. 5.9.3 [UI Setting ►] Access the UI setting submenu.

  • Page 57: Sweep】 Hardkey

    5.9.4 [Screen Setting ►] Access the screen setting submenu. 5.9.4.1 [Brightness] Toggle the screen brightness between Auto and Man. When it is set to Auto, the brightness adjusts according to the environment automatically with the built-in light sensor. When it is set to Man, you can set a fixed brightness value manually (0 - 100).

  • Page 58: Trig】 Hardkey

    5.10.2 [Sweep Single] Press to set the sweep mode to single sweep. In this mode, pressing [Seep Single] enables a sweep. 5.10.3 [Sweep Cont] Press [Sweep Cont] to set the sweep mode to continuous sweep. The analyzer performs one sweep after another as soon as it is triggered.

  • Page 59: Source】 Hardkey

    detects a video signal in which the voltage exceeds the specified video trigger level. Use the numeric keys, control or direction keys to set the trigger level in Video mode. The screen will display corresponding line Triger Level and the value. 5.11.3 [External ►] In this mode, an external signal (TTL signal) is input from the [Trig In] connector at the top panel, of which the edge conditions should...
  • Page 60 5.12.3 [Output Level] Set the output power of CW or TG source. 5.12.4 [Output FREQ] When the source is “CW”, set the output frequency of CW source. 5.12.5 [OF Step] When the source is “CW”, set the output frequency step of CW source.

  • Page 61: Demod】 Hardkey

    3) [Ref Level] This soft menu is used to track the source network measurement of the user to adjust the measurement results display location. 4) [Sweep Points] Used to set the number of scanning points for network measurements. 5) [Sweep Time] Used to set the scan time for network measurements.

  • Page 62: System】 Hardkey

    When the audio demodulation is on, adjust the headphone output volume. 5.13.1.4 [RadioSet ►] Quick access to the common broadcast band. 5.13.2 [Analog Demod ►] Enter the analog demodulation submenu. 5.13.2.1 [AM ►] Enter AM demodulation submenu. 1) [AM On Off] Turn AM demodulation On or Off.
  • Page 63 The menu for system parameter settings includes [System ►], [Setting ►], [PowerOn/Preset ►], [Calibration ►], [Printer ►], [Save/Recall ►]. For first time you use the spectrum analyzer, set the system settings, the system will store the settings, restart the machine after power off won’t change the settings. 5.14.1 [System ►] Access system information, firmware update, and option submenu.
  • Page 64 [Control ►], [Shutdown], [Language ►], [Date/Time ►]. 5.14.2.1 [LAN ►] Access the submenu for LAN port configuring. The analyzer supports LAN port connection for data transfer. [IP] Sets the IP address of the LAN port. [Mask] Sets the subnet mask parameter. [Gate] Sets the default gateway address.
  • Page 65 3) [UnDo] Undo the last operation. 4) [ReDo] The redo function restores the last operation that have been previously undone. 5.14.2.3 [Shutdown] Turn on/off the automatic shutdown function. When this function is on, the analyzer will automatically shut down in a user-defined time (5 to 240 minutes).

  • Page 66: Table 5-2 [Factory] Settings

    [User State ►] menu item. [Last] Restores the analyzer to the user setting at last shutdown. [Factory] Settings Table 5-2 Parameter Value Frequency MP700506 800.009000 MHz Center Frequency MP700507 1.800009000 GHz Start Frequency 9.000 kHz MP700506 1.600009000 GHz...
  • Page 67 MP700507 Auto 20 dB Scale/Div 10.00 dB Scale Type Ref Offset 0.00 dB Ref Unit Preamplifier Auto 3 MHz Resolution Step Default Auto 3 MHz Trace Average Detector Detector Type Pos Peak Sweep Sweep Time Auto 20.000 ms Sweep Mode Continuous Sweep Source Source TG...
  • Page 68 Peak Peak Search Marker Fctn Marker Noise Frequency Count Marker Marker Trace Marker Table Meas Time Spectrum ACPR Channel Power Pass-Fail Meas Setup Channel Bandwidth 1.000000 MHz Channel Internal 2.000000 MHz Channel Nums Power Percent 99.00% Printer Page Size Print Language Printer Type Black/White Orientation...
  • Page 69 [Calibration] Set the signal generator frequency as 440 MHz, power as -20 dBm, access to RF instrument RF input, press the [Calibration] softkey, start the implementation of user calibration. [Factory] If you do not need the user calibration compensation data, press the [Factory] softkey to clear the data and return to the factory status.
  • Page 70 Accesses the menu to save/recall the screenshot, trace data, or user state. 5.14.6.1 [Screen Pixmap ►] Enter screenshot save submenu, you can choose to save screenshots to local memory or USB disk, the image file format is PNG. The file name is automatically created using the current date and time.

  • Page 71: File】 Hardkey

    A user state file records the current controls and settings of the analyzer. 2) [Sort ►] The files can be sorted in order by name, date&time, or size. Selects the item by which folders and files are sorted in the file list.
  • Page 72 5.15.3 [First Page] Go to the first page of current directory. 5.15.4 [Prev Page] Go to the previous page. 5.15.5 [Next Page] Go to the next page. 5.15.6 [Last Page] Go to the last page of current directory. 5.15.7 [Operations ►] Access the submenu for file operations, includes [Sort ►], [Delete ►], [Export ►], [Load].

  • Page 73: Measure】 Hardkey

    setting. 5.15.7.6 [Preset] When the user state file (the type is user) is selected in the left list, you can press [Preset] to set this user state as preset setting. 5.16 【Measure】 hardkey Key access: Press Shift key, then Measure hardkey (point key in numeric keypad).
  • Page 74 and the absolute value of the adjacent channel power are obtained by the linear power integration method, so that the adjacent channel power ratio is gained. 5.16.4 [Chanel Power On Off] Turn on or off channel power measurements. Press 【Meas Setup ►】 to enter the channel power measurement parameter settings submenu.
  • Page 75 2) [Limit Line On Off] Turns the amplitude line on or off, and the amplitude line turns on when the window measurement is on. 3) [Freq Line On Off] Turns the frequency line on or off, and the frequency line turns on when the window measurement is on.
  • Page 76 3) [Line Low On Off] When the lower limit line is turned on or off, the lower limit line is opened by default when the area measurement is on. 4) [Shift X/Y Freq Ampt] Frequency: For the actual measurement, the edited area as a whole superimposed on a frequency, so that it can implement left or right shift, easy to measure.

  • Page 77: Specification

    "Typical" and "nominal" for this product are defined as follows Typical: Refers to the performance of the product under certain conditions. Nominal: Refers to the approximate value under product application process. Frequency MP700506 9 kHz to 1.600009 GHz Frequency Range MP700507 9 kHz to 3.600009 GHz Frequency...
  • Page 78 DANL to +20 dBm, 1 MHz to 3.6 GHz, measurement Preamp Off range Reference Level -80 dBm to +30 dBm, 0.1dBm by step 20 dB, nominal, MP700506 100 kHz to 1.6 GHz Preamp 20 dB, nominal, MP700507 100 kHz to 3.6 GHz...
  • Page 79 20℃ to 30℃,Input Impedance=50 Ω ,RBW normalizes to 1Hz) -140 dBm (Typical), 1 MHz to 1 GHz <-130 dBm Preamp MP700506 1 GHz to 1.6 GHz -138 dBm (Typical), MP700507 1 GHz to 3.6 GHz <-128 dBm -160 dBm (Typical), 1 MHz to 1 GHz <-150 dBm...
  • Page 80 20℃ ~ 30℃, fc=50 MHz, Preamplifier Off, MP700507 20 dB RF attenuation, input signal 1~50dB ±0.5 dB 20℃ to 30℃, fc=50 MHz, Span=200 kHz , RBW=10 kHz, VBW=10 kHz, peak detector, 10 dB RF attenuation,95% confidence level Absolute Amplitude Preamp Off ±0.4 dB, input signal level Accuracy -20 dBm Preamp On ±0.5 dB, input signal level...
  • Page 81 Zero Span 10 ms to 3000 s Sweep Mode Continuous, Single Tracking Source Output, signal generator 100 kHz to 1.6 GHz MP700506 (Tracking Source Output) 100 kHz to 3.6 GHz Frequency Range (Tracking Source Output) MP700507 35 MHz to 3.6 GHz...
  • Page 82 Rate <0.1% modulation rate, nominal Accuracy (Modulation rate ≥ 1 kHz) Depth 5% to 95% Depth ±4%, nominal Accuracy MP700506 100 kHz to 1.6 GHz Frequency Range MP700507 100 kHz to 3.6 GHz Modulation 20 Hz to 100 kHz rate...
  • Page 83 10MHz Reference 0 dBm to +10 dBm Amplitude External Trigger in Connector BNC female Level USB Host Connector A Plug Protocol USB 2.0 (Host End) USB Device Connector Mini Protocol 2.0 Version Display Type TFT LCD Resolution 1024*768 Size 8 inches Color 65536 Remote Control...
  • Page 84 Dimensions 265 mm (W) × 190 mm (H) × 58 mm (D) Weight Approx. 2.5 kg (without package)

  • Page 85: Troubleshooting

    7. Troubleshooting Typical issues that may occur when using your spectrum analyzer:  Power on malfunction  No signal display  Wrong measurement results or poor frequency or amplitude precision. 1. Power on malfunction Power on malfunction can include a situation where the screen is still dark (no display) after switch on.

  • Page 86: Appendix

    8. Appendix Appendix A: Enclosure (The accessories subject to final delivery.) Standard Accessories CD Rom Power Cord Quick Guide USB Cable AC-DC Adapter GPS Antenna Metal Case Options N-N Cable N-SMA Cable SMA-SMA Cable SMA Adaptor N-SMA Adaptor Near Field Probe includes: Four near-field probes, Soft Carrying N-SMA adapter, SMA-SMA cable Case...

  • Page 87: Appendix B: General Care And Cleaning

    Appendix B: General Care and Cleaning General Care Do not store or leave the instrument where the liquid crystal display could be exposed to direct sunlight for long periods of time. Caution: To avoid any damage to the instrument or probes, do not exposed it to any sprays, liquids, or solvents.

This manual is also suitable for:

Mp700507
