Summary of Contents for multicomp pro MP760607

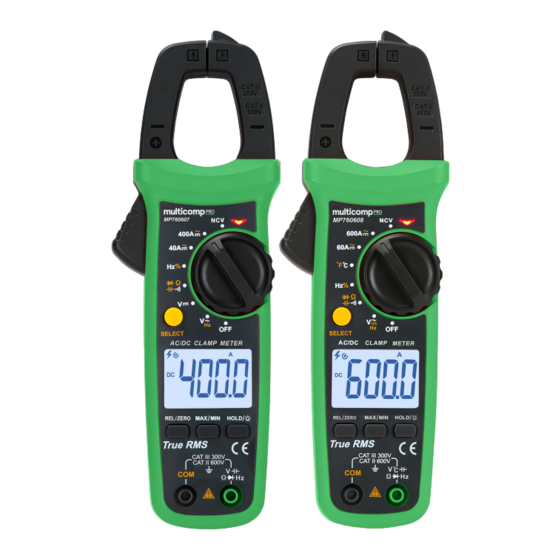

- Page 1 User Manual AC/DC Clamp Meters Part Number: MP760607 & MP760608 Newark.com/multicomp-pro Farnell.com/multicomp-pro sg.element14.com/b/multicomp-pro Page <1> 12/10/22 V1.0...
-
Page 2: Standard Accessories
1. Overview The MP760607&MP760608 are portable 1rue RMS AC/DC clamp meters with automatic range. They are designed according to EN61010-1 CAT II 600V/CAT Ill 300V safely standards, and come with full-function protection which ensures users a safe and reliable measurement experience. Aside from basic measurement functions. They also have high precision current scale and high voltage frequency measurement extension. -
Page 3: General Specifications
It is applicable to test and measuring circuits connected lo the distribution part of the build- ing’ s low-voltage MAINS installation. 6. General Specifications • Max LCD display counts: 4099 (MP760607), 6099 ( MP760608) • Polarity display: Aulo • Overload display: “OL” or”- OL”... -
Page 4: External Structure
7. External Structure 1) NCV sensing end 2) Clamp jaws 3) Hand guard 4) LED lndicalor 5) Jaw opening trigger 6) Function scale knob 7) LCD display 8) Function buttons 9) Signal input jack (red and positive+) 10) COM input jack (black and negative -) 8. - Page 5 • Select the corresponding function scale. • Insert the red test lead into the “positive” jack, and the black into the “COM” jack. • Connect test leads with both ends of the measured objects. Caution: • D o not input voltage above 600V to prevent electric shock or damage. The input impedance of each range scale is 10MΩ, this load effect in high resistance measurement may cause error. If the input impedance is lower than 10kΩ, the error can be ignored (≤0.1%).
-
Page 6: Probe Usage
9.5 NCV AC Electric Field Sensing (Picture 6a) The electric field sensing sensitivity is divided into two levels (“EFHI” and “EFLo”). The meter defaults to “EFHI”. Users can select different sensitivity levels according to the intensity of the measured electric field. Select “EFHI” of NCV when electric field is around 220V AC 50Hz/60Hz. Bring the NCV sensing end close to a charged electric field (socket, insulated wire, etc.). The LCD will display the segment “-” with beeps and red LED flashing. As the intensity of the measured electric field increases, the more segments (----) display, the higher frequency of buzzer beeps and LED flashes. Select “EFLo” when the electric field is around 110V AC 50Hz/60Hz. Caution: Use the NCV sensing end to approach measured electric field, otherwise the measurement sensitivity will be affected. When the measured electric field voltage is over 100V AC, observe whether the conductor is insulated to avoid personal injury. 9.6 Others • A uto power off: The meter will automatically power off to save power if there is no operation for 15 min. You can wake it up by pressing any button or restart it after turning the switch to OFF. • ... -
Page 7: Technical Specifications
TESTING IN CAT II MEASUREMENT LOCATIONS CAT III shields may be removed for CAT II locations. This will allow testing on recessed conductors such as standard wall outlets. Take care not to lose the shields. 11. Technical Specifications Accuracy: ± (%reading + counts), the calibration period is 1 year. Ambient temperature and humidity: 23°C±5°C; ≤80%RH. - Page 8 AC Voltage/Voltage Frequency Range Resolution Accuracy MP60607 MP60608 4.000V 6.000V 0.001V ±(1 +5) 40.00V 60.00V 0.01V 400.0V 600.0V 0.1V ±(0.8 +5) 600V Voltage Frequency 0.01Hz~0.01kHz ±(0.5%+2) 10Hz~60KHz Caution: • MP60607: short press “SELECT” in AC voltage/Hz scale to enter the Hz Function; MP60608: long press “SELECT”...
- Page 9 11.5 Capacitance Measurement Range Resolution Accuracy MP60607 MP60608 40.00nF 60.00nF 0.01nF 400.0nF 600.0nF 0.1nF 4.000uF 6.000uF 0.001μF ±(4%+5) 40.00uF 60.00uF 0.01μF 400.0uF 600.0uF 0.1μF 4.000mF 6.000mF 0.001mF ±10% 40.00mF 60.00mF 0.01mF Caution: • M easured value = displayed value - open circuit value of the test leads (For capacitance ≤100nF, “REL” mode is recom- mended, open circuit has residual reading). The guaranteed accuracy is 1%~100%. • ...
-
Page 10: Maintenance
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
