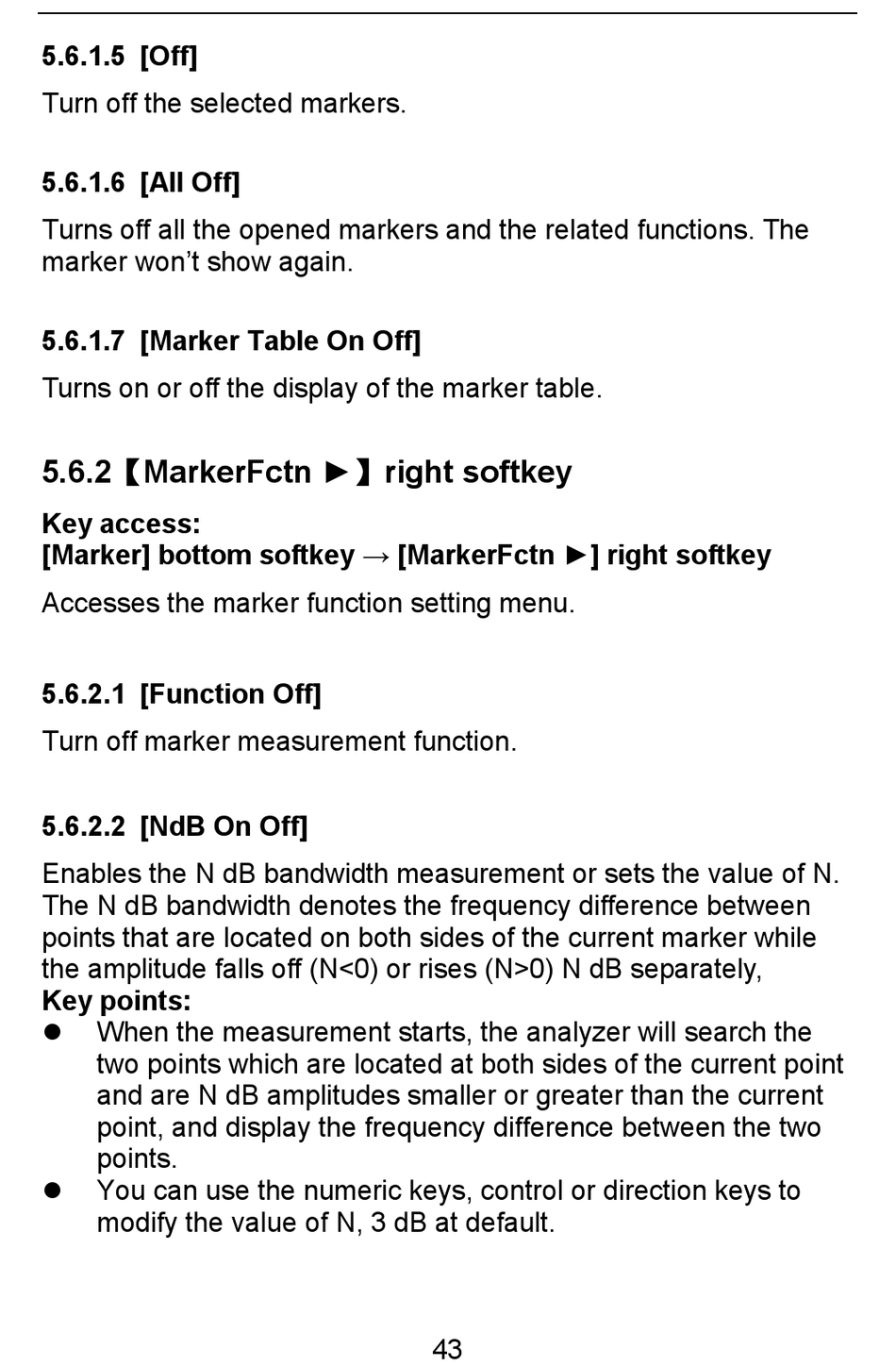

5.6.1.5 [Off]
Turn off the selected markers.
5.6.1.6 [All Off]
Turns off all the opened markers and the related functions. The
marker won't show again.
5.6.1.7 [Marker Table On Off]
Turns on or off the display of the marker table.
5.6.2【MarkerFctn ►】right softkey
Key access:
[Marker] bottom softkey → [MarkerFctn ►] right softkey
Accesses the marker function setting menu.
5.6.2.1 [Function Off]
Turn off marker measurement function.
5.6.2.2 [NdB On Off]
Enables the N dB bandwidth measurement or sets the value of N.
The N dB bandwidth denotes the frequency difference between
points that are located on both sides of the current marker while
the amplitude falls off (N<0) or rises (N>0) N dB separately,
Key points:
When the measurement starts, the analyzer will search the

two points which are located at both sides of the current point
and are N dB amplitudes smaller or greater than the current
point, and display the frequency difference between the two
points.
You can use the numeric keys, control or direction keys to

modify the value of N, 3 dB at default.
43
