be track A or track B). If both tracks are active or both tracks are in
static display mode, the marker will read data from track A.

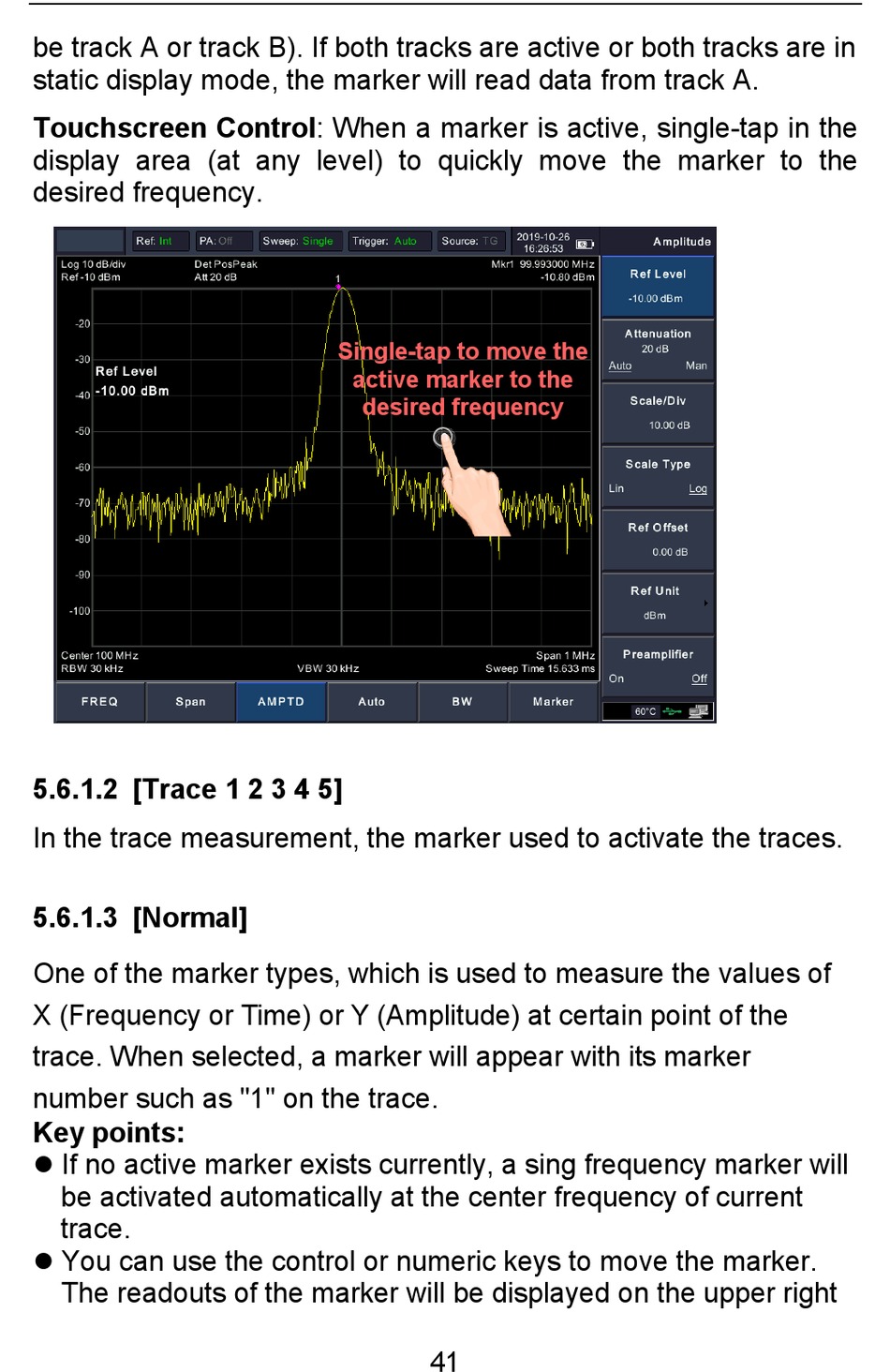

Touchscreen Control: When a marker is active, single-tap in the
display area (at any level) to quickly move the marker to the
desired frequency.
5.6.1.2 [Trace 1 2 3 4 5]
In the trace measurement, the marker used to activate the traces.
5.6.1.3 [Normal]
One of the marker types, which is used to measure the values of
X (Frequency or Time) or Y (Amplitude) at certain point of the
trace. When selected, a marker will appear with its marker
number such as "1" on the trace.
Key points:
 If no active marker exists currently, a sing frequency marker will
be activated automatically at the center frequency of current
trace.
 You can use the control or numeric keys to move the marker.
The readouts of the marker will be displayed on the upper right
Single-tap to move the
active marker to the
desired frequency
41
