Skyraider
WARBIRD 10cc-15cc

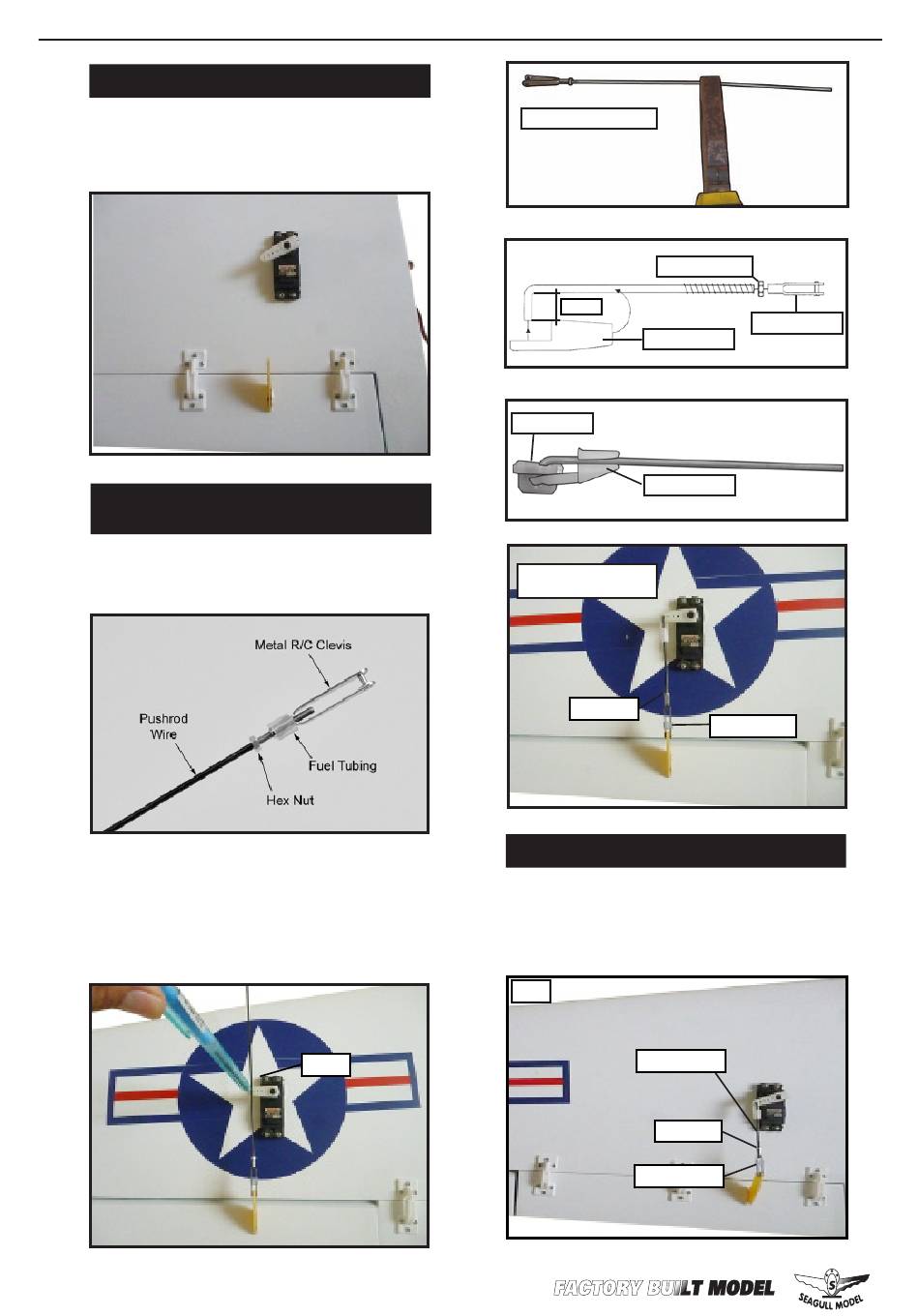

INSTALLING THE FLAP SERVO.
Repeat the procedure for the aileron
servo.
AILERON PU SHROD HORN

INSTALLATION.

Please see below pictures.
Use a felt tip pen to mark the wire where
it crosses the hole. Use a pair of pliers to
put a shrp 90-degree bend in the wire at
the mark.
18
Mark.
Bend at the mark
M2 lock nut.
8mm
Snap keeper.
Servo arm.
Snap keeper.
Nylon Snap keeper.
Hex Nut.
INSTALLING THE FLAP PUSHROD.
Repeat the procedure for the aileron
pushrod.
Flap.
M2 clevis.
Hex nut.
Fuel tubing.
Instruction Manual.
Metal clevis.
Fuel tubing.
