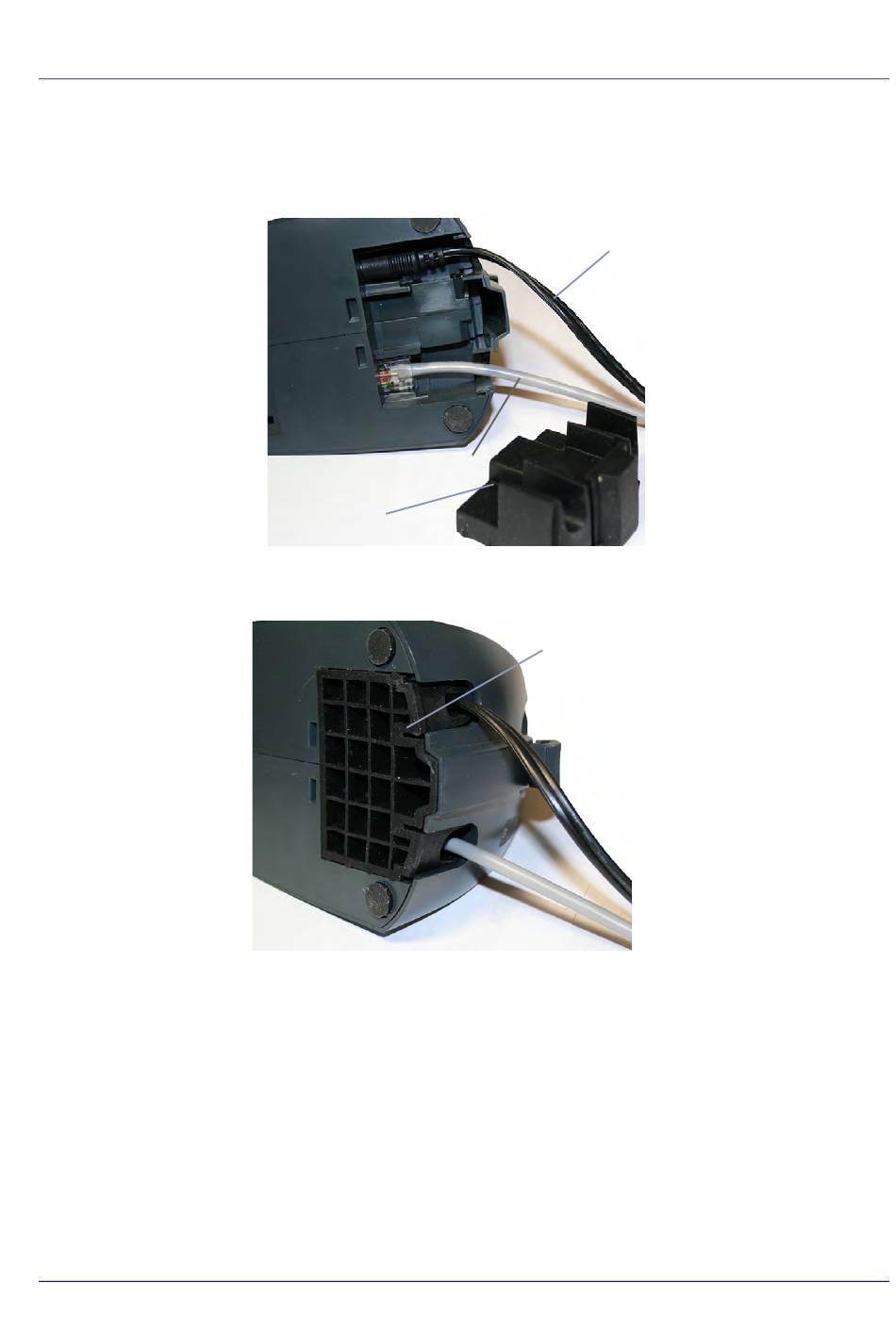

Base Station Connection and Routing
1. Remove the rubber Cable Stopper from the bottom of the Base Station.
2. Securely plug the Power Cable and Interface (I/F) Cable connectors into their respective
ports in the underside of the Base Station.
3. After the cables are plugged in, reinsert the rubber Cable Stopper.
4. Connect to an AC Adapter, and plug the AC power cord into the (wall) outlet.
Product Reference Guide
I/F Cable
Cable Stopper
Configuring the Base Station
Power Cable
Cable Stopper
reinserted
13
