Connecting to DVR/Encoder (Coax)

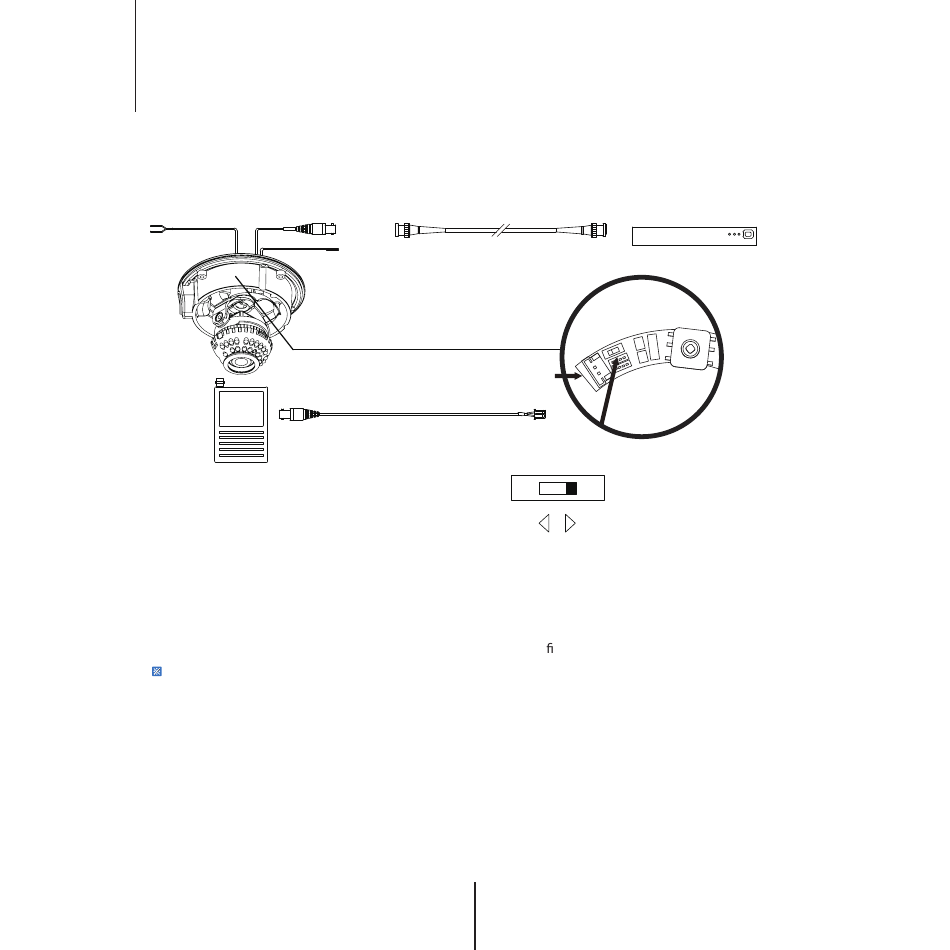

Use the diagram below to connect to an Universal DVR or CRT Monitor properly.
Coax Video Output Mode (Default Mode)
12VDC/24VAC
Monitor
- Power Connection : 12VDC/24VAC Dual Voltage. (Auto Polarity Detection and Protection)
- All cameras are equipped with a test video output for on-site con guration.
Note : When switching to UTP/Coax switch to Coax, the image will not be output when switched to UTP.
COAX
Test Video Output
UTP/Coax switch
UTP
COAX
12
UNIVERSAL DVR
