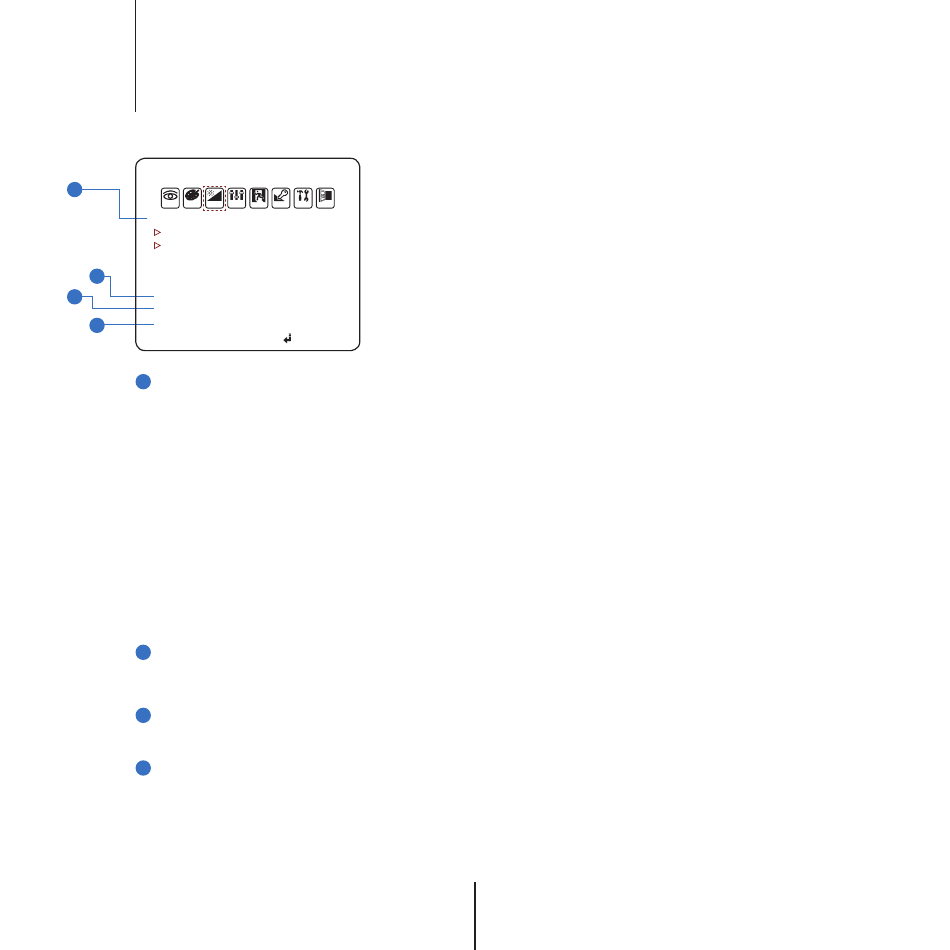

OSD Menu
DAY/NIGHT
1
EXPO RGB D&N FUNC
MODE
AGC THRES
AGC MARGIN
CDS THRES
CDS MARGIN
2
EXTERN SW
3
EXT LED
DELAY
SMART IR
4
EXIT JUMP
1 MODE
AUTO : Day/ Night switch will be based on the CDS levels.
COLOR : The camera always stays in day/color mode.
B&W : The camera always stays in night/B&W mode.
EXTERN : Day/ Night switch will be based on using IR LED lights.
* WITHOUT LED
- AGC Threshold : Set when the camera switches between Day & Night.
- AGC Margin : Set the value added to the AGC Threshold. Adjust the value
based on the environment in which the camera is installed. If the margin is too low,
the camera will switch from color to B/W and back.
* WITH LED
- CDS Threshold : Marks the light level at which the camera will switch between color and B/W.
- CDS Margin : The value added to the CDS Threshold. Adjust this based on the environment in which
the camera is installed. If the margin is too low, the camera will switch from color to B/W and back.
EXT LED
2
AUTO : The LEDs are enabled/ disabled by the CDS Sensor on the LED Board.
OFF : The camera's LEDs are disabled manually.
DELAY
3
Low/Mid/High : Time interval delay before switching from day mode to night mode.
SMART IR
4
0 ~ 20 : Enable Smart IR and set the level. Higher values will make Smart IR stronger.
Day & Night
_
MOTI PRIV SET EXIT
AUTO
____
____
3
5
LOW
AUTO
LOW
5
The lower the value, the camera will require less light (more darkness) to switch to Night Mode.
