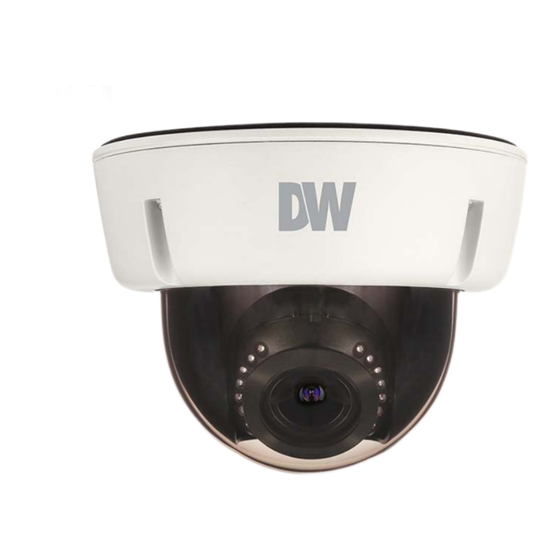

Digital Watchdog STAR-LIGHT DWC-V6263TIR User Manual

Universal hd over coax indoor/ outdoor dome camera
Hide thumbs Also See for STAR-LIGHT DWC-V6263TIR:
Table of Contents

Advertisement

Quick Links

Download this manual

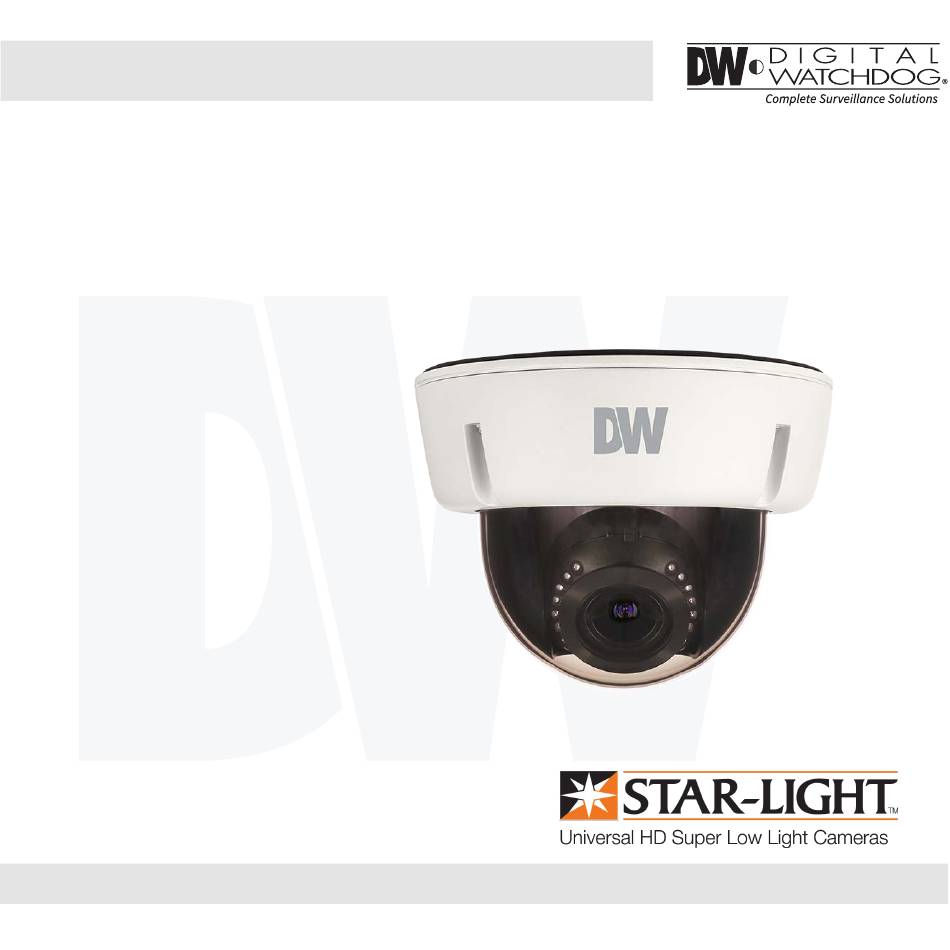

STAR-LIGHT Universal HD
over Coax
Dome Camera
DWC-V6263TIR
User's Manual
Ver. 08/17
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
Indoor/ Outdoor
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAR-LIGHT DWC-V6263TIR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digital Watchdog STAR-LIGHT DWC-V6263TIR

Summary of Contents for Digital Watchdog STAR-LIGHT DWC-V6263TIR

  • Page 1 STAR-LIGHT Universal HD over Coax Indoor/ Outdoor Dome Camera DWC-V6263TIR User’s Manual Ver. 08/17 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
  • Page 2 Index INTRODUCTION Safety Information Features Part Name Dimension Product & Accessories INSTALLTION Installation Connecting to Monitors Control Board Adjusting the Camera angle OSD MENU Menu Tree OSD Menu - Lens OSD Menu - Exposure OSD Menu - Backlight OSD Menu - White Balance OSD Menu - Day&Night OSD Menu - NR OSD Menu - Special...

  • Page 3: Safety Information

    Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and...
  • Page 4 Safety Information 7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock. 8. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.

  • Page 5: Important Safety Instructions

    Important Safety Instructions 1. Read these instructions. All these safety and operating instructions should be read before the product is installed or operated. 2. Keep these instructions. The safety, operating and use instructions should be retained for future reference. 3. Heed all warnings. All warnings on the product and in the operating instructions should be adhered to.

  • Page 6: Disposal Of Old Appliances

    Important Safety Instructions 11. Only use attachments/accessories speci ed by the manufacturer. 12. Use only with cart, stand, tripod, bracket, or table speci ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
  • Page 7 Features Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support STAR-LIGHT™ Super Low Light Technology 1/2.7" Image Sensor 2.1MP, 1080p Resolution at 30fps Varifocal P-Iris Lens 2.8~12mm Digital Wide Dynamic Range (D-WDR) OSD Control Via Coaxial (UTC) CleanView™...
  • Page 8 Part name Cover screws Dome Cover Upper Case Light Sensor IR LED Lens Tilt Stopper Screw Side Port for Cabling Bottom Case Test Video Slot OSD Joystick Controller Power Cable BNC Cable...
  • Page 9 Dimension Unit : Inches (mm) 2.43" (61.8mm) 1.85" (47.0mm) 5.7" (145mm)

  • Page 10: Product And Accessories

    Product & Accessories Please check if all the camera and accessories are included in the package. Camera Cables Torx Wrench Test Video Cable DC Plug Screw & Template Sheet Manual Plastic Anchor-4pcs NOTE : The ‘Test Video Cable’ is used to test the camera by connecting to a portable display.

  • Page 11: Installation Instructions

    Installation- Instructions Detach the camera’s cover dome from the camera’s module by unscrewing the four cover dome screws using the Torx Wrench. Use the camera or mounting template to mark and drill the necessary holes in the wall or ceiling. Pull wires through and make connections.

  • Page 12: Connecting To Dvr/Encoder

    Connecting to DVR/Encoder Use the diagram below to connect to a Universal DVR or Monitor properly. UNIVERSAL DVR 12VDC COAX Test Video Output Monitor - Power Connection - 12vdc Voltage - All cameras are equipped with a Test video output for on-site con guration.

  • Page 13: Control Board

    Control Board Test Video Slot OSD Joystick Controller - OSD Joystick : The function setting and video output can be adjusted with OSD joystick. (default : HD-A) Image Mode Switches to HD-TVI mode when press OSD Joystick to left 5sec or longer. Switches to HD-A mode when press OSD Joystick to right 5sec or longer.

  • Page 14: Adjusting The Camera

    Adjusting the Camera Panning 360º Adjusting the camera angle Adjust the camera angle while the camera is xed on the ceiling. Pan is used to rotate the camera’s body to left and right, and Tilt is used to adjust the tilt. Rotating the lens by its axis is called Rotation.

  • Page 15: Osd Menu Tree

    OSD Menu Tree NOTE : The function setting can be adjusted with both switch (OSD joystick) and remote control through UTC. In case of camera without OSD joystick, it can be adjusted with coaxial (UTC) only. LENS NR(Noise Reduction) 2DNR OFF / LOW / MIDDLE / HIGH P-IRIS MODE / LIMIT / RETURN...
  • Page 16 OSD Menu Lens MANUAL Manual mode supports the xed board lens or the manual iris lens. P-IRIS If the camera includes a P-Iris lens, you can select this option to adjust the lens and iris settings. If P-Iris is selected, adjust the following : MODE : Select from AUTO or MANUAL.
  • Page 17 OSD Menu Exposure SHUTTER Set the camera’s shutter speed from available options EXPOSURE (AUTO / 1/30~1/50000 / X2~X30 / FLK) SHUTTER 1/30 If Iris is set to AUTO in the lens menu, the camera’s shutter will be ----12 STARLIGHT AUTO set automatically and the values in this menu will not be adjustable.
  • Page 18 OSD Menu Exposure(CONT.) DRC (Dynamic Range Compressor) DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image. Select from : OFF / ON / AUTO. If ON is selected, adjust the DRC value from 0~8. DEFOG Allows the camera to process a scene that is obscured by fog or weather conditions and provides a visibly improved image.
  • Page 19 OSD Menu Backlight BLC (Back Light Compensation) If BLC is selected, adjust the size and position of the mask : - Level : Set the BLC levels LOW/MIDDLE/HIGH - AREA : Use the joystick controller on the camera’s board to adjust the zone’s position. Press the enter key and use the joystick controller to adjust the zone’s size.
  • Page 20 OSD Menu White Balance MAIN MENU Auto Tracking White Balance Control mode compensates for color temperature changes between 2400K° and 11000K°. LENS MANUAL EXPOSURE BACKLIGHT PUSH WHITE BAL Push xes the white balace based on the current lighting auto- DAY&NIGHT AUTO matically.
  • Page 21 OSD Menu Day & Night - AUTO : Day/Night switch is based on the CDS levels (IR models) or AGC levels (non-IR models). - COLOR : The camera always stays in day/color mode. - B&W : The camera always stays in night/B&W mode. - EXT : The camera’s Day &...
  • Page 22 OSD Menu Day & Night (CONT.) COLOR If COLOR mode is selected, the camera’s display will always appear in color, regardless of the lighting condition. - BURST : Select to enable or disable color burst when the camera switches from color to B/W. - IR SMART (0~15) : Enable Smart IR and set the level.
  • Page 23 OSD Menu NR (Noise Reduction) NR reduces the noise on the screen in low light conditions and allows for clearer images, even at night. 2DNR : Set the Digital Noise Reduction values for general illumination. Select from LOW/MIDDLE/ HIGH. If the 2DNR settings are set to HIGH, image sharpness may be a ected. 3DNR : Set the Digital Noise Reduction values for very low light situations.
  • Page 24 OSD Menu Special CAM. TITLE Add a name to the camera. Set the title by using the OSD joystick. D-EFFECT FREEZE Freeze image from the camera at the selected moment. MIRROR Re ects the caemra : OFF / MIRROR / V-FLIP / ROTATE NEG.
  • Page 25 OSD Menu Special (CONT.) MOTION - ALARM : VIEW TYPE : When motion is detected, select from the following disply options : 1. OFF - Do not display motion alarm 2. ALL - Show all motion zones when motion alarm is detected. 3.
  • Page 26 OSD Menu Special (CONT.) PRIVACY - SELECT : The camera supports up to 4 separate privacy zones. Select which one to adjust. - DISPLAY : There are three types of privacy masks you can apply. Select from OFF MOSAIC, INV., or COLOR 1.
  • Page 27 OSD Menu Special (CONT.) LANGUAGE Select from the available options : English, Chines 1, Chinese 2, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Korean, Japanese, Arabic, or Hebrew. DEFECT - LIVE DPC : 1. AGC LEVEL - Set the AGC levels for the Live DPC. 2.
  • Page 28 OSD Menu Special (CONT.) DEFECT (CONT.) - BLACK DPC : 1. POS/SIZE : Set the size and position for the DPC Zone. BLACK DPC Use the joystick controller on the camera’s board to adjust POS/SIZE the zone’s position. Press the enter key and use the joystick START controller to adjust the zone’s size.
  • Page 29 OSD Menu Adjust SHARPNESS Set the sharpness of the image. The Sharpness values can be increased or lowered according to the AGC levels in the camera’s view. If AUTO is selected, adjust the following values : - LEVEL : Set the sharpness level. The higher the number, the sharper the image will appear. - START AGC : Select the AGC value where the image’s shart lines may start to appear smeared in low light.
  • Page 30 OSD Menu EXIT SAVE & END Save all changes made to the camera’s settings and exit the OSD menu. RESET The camera’s settings will be reset to their factory default values once you exit the OSD menu. NOT SAVE Exit the OSD menu without saving any changes made to the camera’s settings. MAIN MENU LENS MANUAL...

  • Page 31: Troubleshooting

    Troubleshooting Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the power supply and make sure the camera has the proper voltage and current. FOR OUT-OF-FOCUS VIDEO Check the clear dome cover and the lens for dirt or ngerprints.

  • Page 32: Speci Cations

    Speci cations VIDEO Image Sensor 1/2.7” CMOS Sensors Active Pixels 1920(H) x 1080(V) Scanning System Progressive scan Freguency 60Hz / 50Hz Signal Technology 2.0 Megapixel Universal Synchronization Internal Resolution 1920x1080 (1080p30fps) F1.4 (30IRE): 0.2 Lux (Color) Minimum Scene Illumination F1.4 (30IRE): 0 Lux (B&W) S/N Ratio 55dB Video Output...
  • Page 33 Speci cations OPERATIONAL (CONT.) Digital Noise Reduction OFF / LOW / MIDDLE / HIGH White Balance AUTO / PUSH / MANUAL / AWB Day and Night AUTO / COLOR / BW / EXT Auto Gain Control 0 ~15 Motion Detection ON/OFF (4 Zones) Privacy Zones ON/OFF (4 Zones)

  • Page 34: Limits & Exclusions

    This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...

  • Page 35: Warranty Information

    Warranty Information Digital Watchdog (referred to as “the Warranter”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warranter will repair or replace the unit with a new or refurbished product at its option at no charge.
