Chapter 4
This is a list of the first label format field element mnemonics for the sample label in Figure
4-2:
TSN, XB, YB, CC, TCI, CGN, FO, FJ, CMX, CMY, CS, TSP, , , AN
1, 640, 650, 8,
YB
XB
X beginning
This is the
origin; 1,1
4.6.1 TSN
The parameter determines which line of text data will be used for formatting. This allows for
more than one field to use the same text data. A TSN of "1" accesses the first line of data.
A TSN of "2" accesses the second line of data, and so forth. The text data is the text that
follows the "^D2<CR>" command in the label's layout. A graphic image field must point to a
text string that contains at least one character. The maximum value for a TSN is 65536.
4.6.2 XB
The X coordinate of the field is measured in thermal dots. The far left edge of the print
head, as viewed from the front of the printer, is X coordinate "1". There is no X coordinate
of "0". The X coordinates increase in size from the left to right. An XB of 300 would place
438 Operator's Manual - 880052-0103
1, 5, 0,
Feed Direction
4" PRINT HEAD
Microcom
Corporation
Thermal Printing Solutions
012345
Y beginning

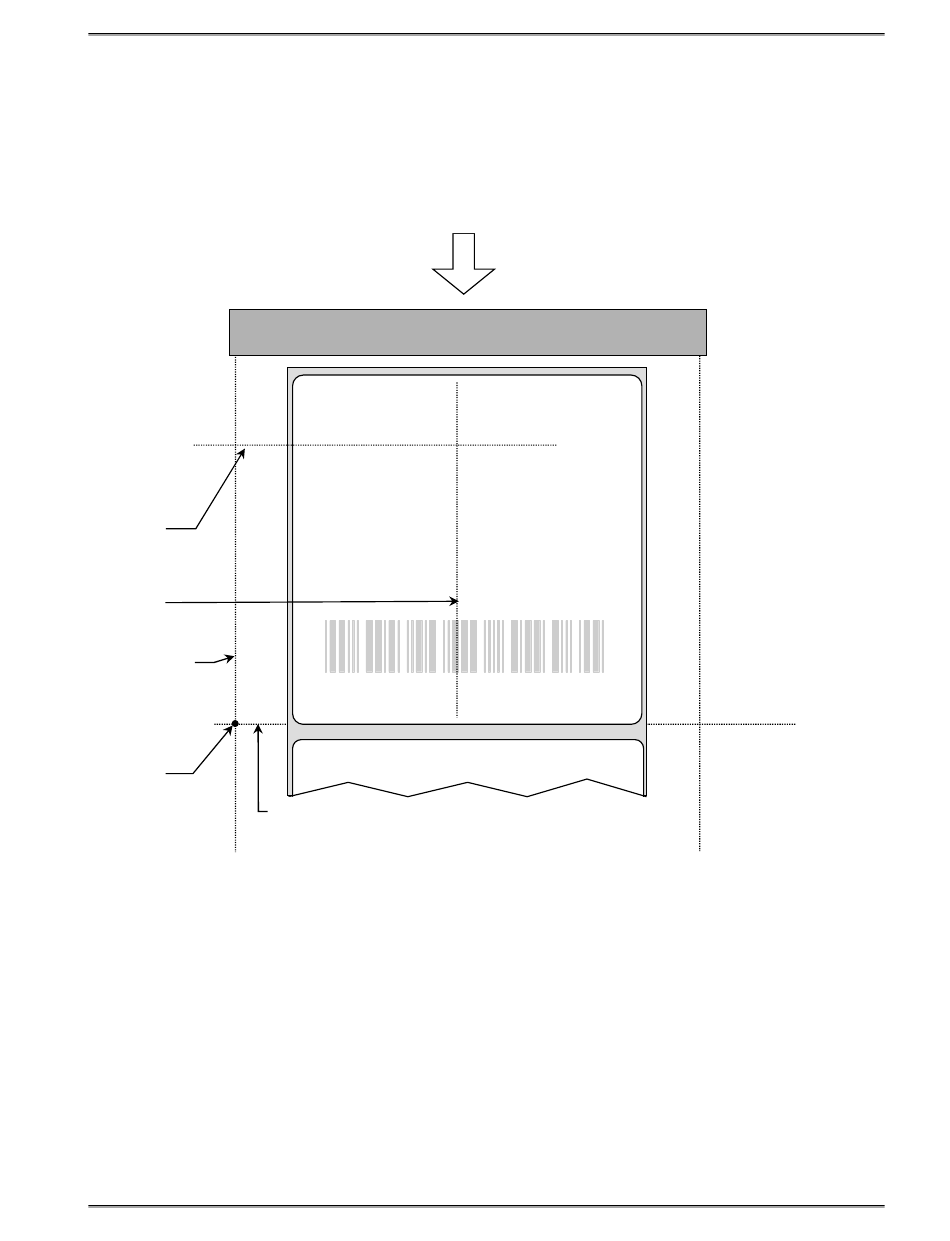

Figure 4-4

Label Format Field Elements

(Text String Number)
(X Beginning Coordinate)
Designing Labels with LDS
4, 2, 2, 1, 1, , , 0
4-11
