Chapter 8 Bar Codes
tracking code from the routing code. A maximum of 32 characters including the dash is
allowed.
Once the Intelligent Mail barcode data is entered and processed, the barcode image may be
placed using the normal format field by using a TCI of 48.
EXAMPLE:
^D166
0 <---------------------------------------------------------- Rotation
01234567094987654321-01234567891<-------- Intelligent Mail Barcode data
^D57
1,832,2000,0,0,08,2,1,,0,0
1,400,400,1,48,,,,6,15 <------------------------------- Placement information
^D56
^D2
.
^D3
Rotation - 0
0 = 0 degree rotation
1 = 180 degree counter clockwise rotation.
2 = 90 degree counter clockwise rotation.
3 = 270 degree counter clockwise rotation
Intelligent Mail Barcode Data - 01234567094987654321-01234567891
This would be the ASCii digits that defines the string to be encoded. The '-' (dash) may be
included only to separate the tracking code from the routing code. A maximum of 32
characters including the dash is allowed.
Placement - 1,400,400,1,48,,,,6,15
This format line is used to place the barcode. The X, Y coordinates, followed by a CC of 1,
TCI of 48, and the X and Y multiplier fields to adjust the desired size of the barcode.

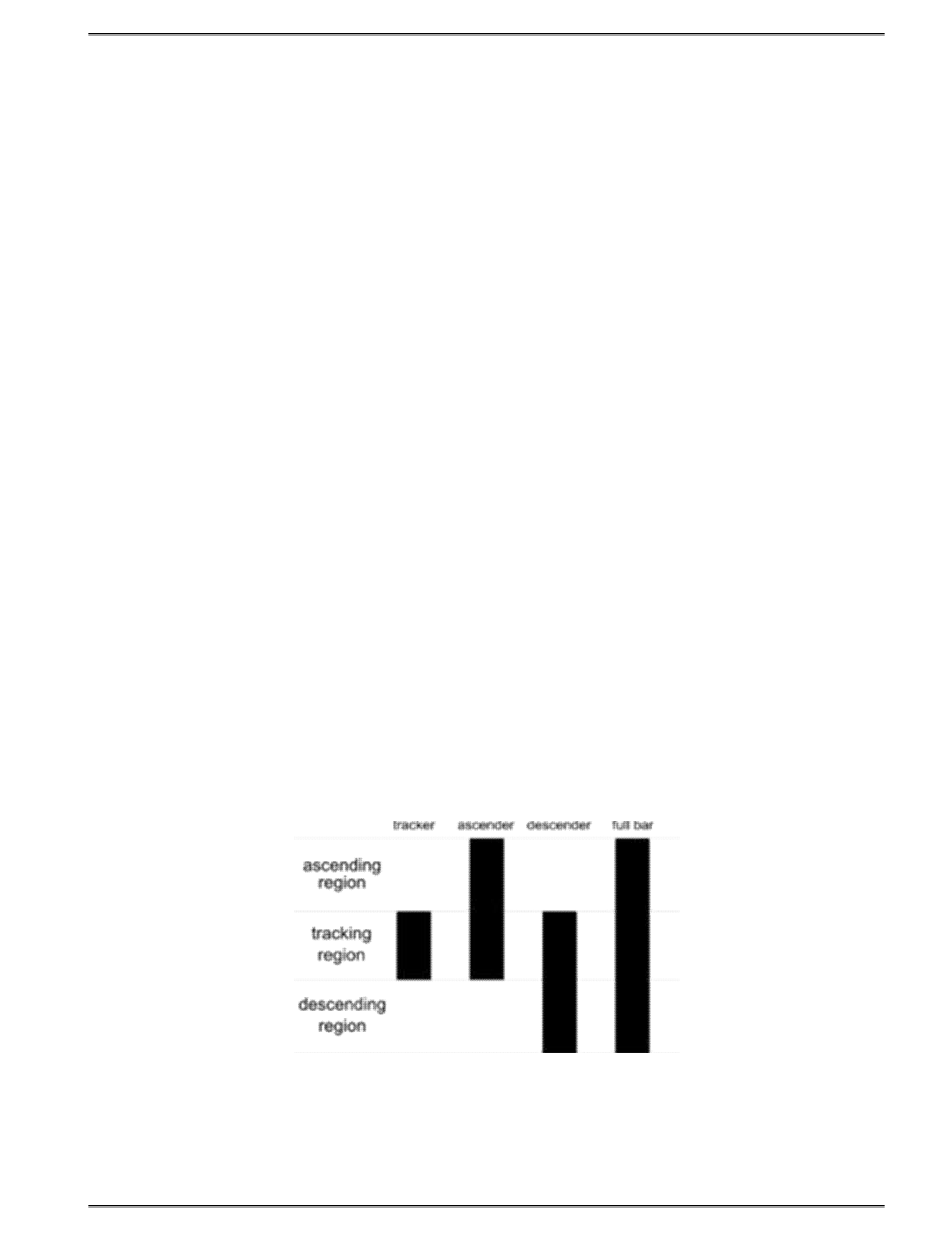

Figure 8-11 Intelligent Mail Barcode bars
438 Operator's Manual - 880052-0103 8-17
