HDK-97C
( FA-97 )
3G HIGH DEFINITION CAMERA SYSTEM
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDK-97C and is the answer not in the manual?

Questions and answers

Related Manuals for Ikegami HDK-97C

Summary of Contents for Ikegami HDK-97C

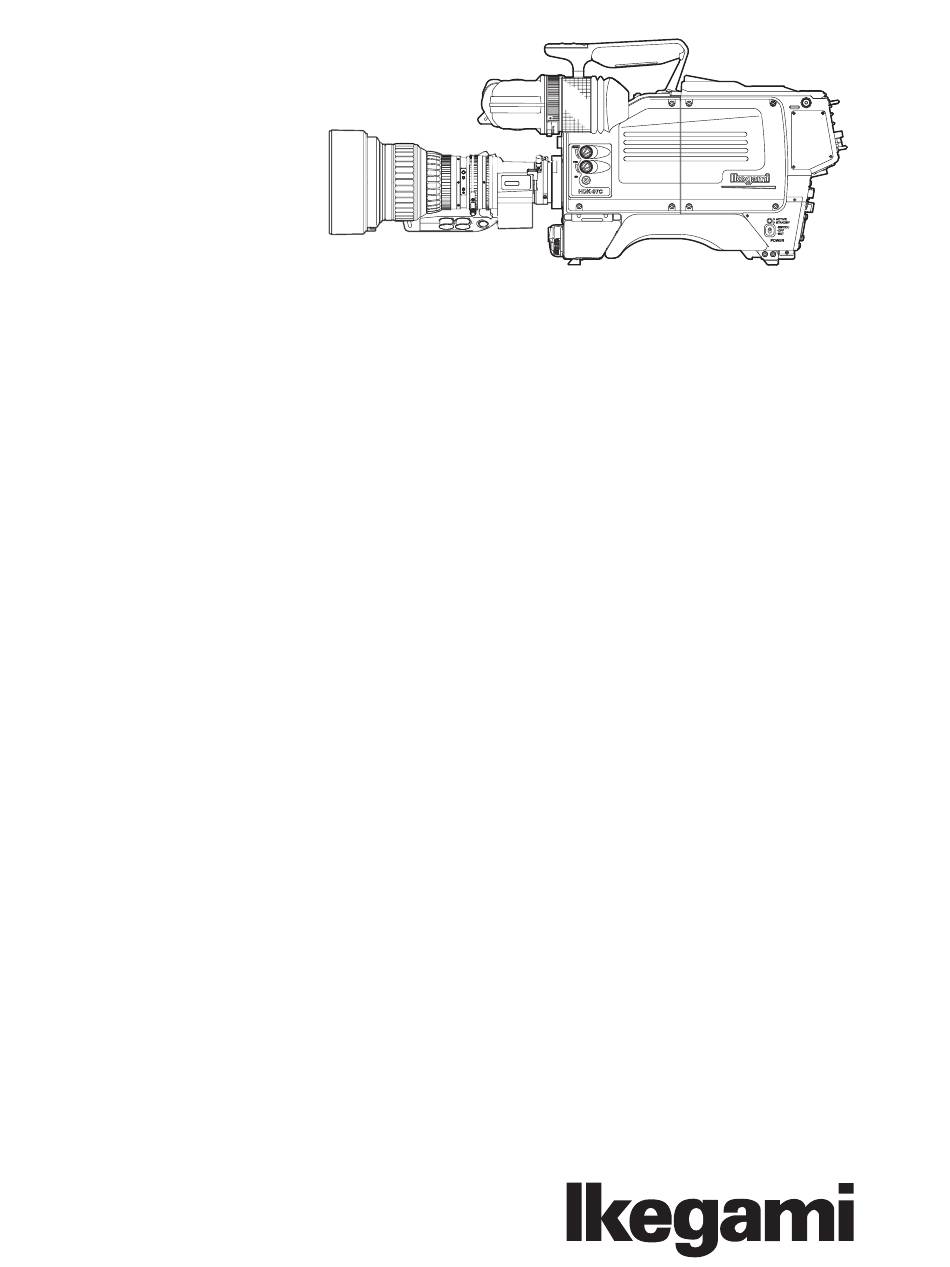

  • Page 1 HDK-97C ( FA-97 ) 3G HIGH DEFINITION CAMERA SYSTEM OPERATION MANUAL...
  • Page 3 OUTLINE HDK-97C NAME and FUNCTION ( FA-97 ) INSTALLATION and 3G HIGH DEFINITION CAMERA SYSTEM CONNECTION OPERATION MANUAL OPERATION CAMERA SETTINGS and ADJUSTMENT TROUBLE SHOOTING and MAINTENANCE SPECIFICATIONS CHANGING INFORMATION 1303 Edition (U)
  • Page 4 Copyright © 2013 Ikegami Tsushinki Co., Ltd. We reserve the copyright on the software we create. No part of this publication may be modified or reproduced in any form, or by any means, without prior written permission from Ikegami Tsushinki Co., Ltd.

  • Page 5: Products Conforming To Rohs Directive

    80% and less than 85% by weight 14. Lead in solders to complete a viable electrical connection between semiconductor die and carrier within integrated circuit Flip Chip packages 15. Decabrominated diphenyl ether (Deca-BDE) in polymeric applications HDK-97C 1303 VER1 (U)

  • Page 6: Maintenance Of Products Conforming To Rohs Directive

    · If the customer mixed the lead-solder with the main body wiring or the circuit board, it becomes guarantee off the subject. Ikegami doesn't guarantee to do the repair work. Because the solder polluted with lead cannot be removed. 3. Part Be sure to use parts conforming to RoHS directive.

  • Page 7: Information To The User

    The CE mark means that the following products will meet the Directive 2004/108/EC,2006/95/EC and the Standards EN55103- 1 E4-E5, EN55103-2 E4-E5 (for EMC), EN60950-1 (for LVD). For European customer. 3. Rated current value of the camera when HDK-97C are used for the system operation is shown below. Rated current value · HDK-97C AC220V (50-60Hz) : 0.6A...

  • Page 8: Safety Precautions

    Indicates that mishandling may cause an electric shock. Indicates that mishandling may cause a fire. Indicates that mishandling may cause injury. The following symbol is used to indicate other precautions to prevent damage or hazard from occurring: Indicates prohibited action. HDK-97C 1303 VER1 (U)
  • Page 9 - In direct sunlight for a long time, or near a heater - High humidity or dusty - Exposed to water or other liquid - Strong vibration or shock - Strong magnetic field or radio waves - lightning - In rain without the rain cover HDK-97C 1303 VER1 (U)
  • Page 10 Wrong usage of batteries may cause liquid leak, explosion, and heat, and at worst injury or fire. When changing or discarding a battery, please contact Ikegami's sales and service centers. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
  • Page 11 Fiber Optic Cable - When connecting a fiber optic cable to a fiber connector, anchor the fiber optic cable with a cable clamp. CAMERA CABLE Clamp CAMERA CABLE Clamp (optional) RET-1 RET-2 BREAKER /MIC Optical Fiber Cable HDK-97C 1303 VER1 (U)
  • Page 12 This product includes parts that wear out and have a limited life even in proper use or storage. Therefore, regular maintenance is recommended to extend the life and safe use of this product for a long time. Please contact Ikegami's sales and service centers for the regular maintenance and repair of our products.

  • Page 13: How To Read The Operation Manual

    HOW TO READ THE OPERATION MANUAL HOW TO READ THE OPERATION MANUAL This page explains general notes on reading the HDK-97C Operation Manual, and the symbols and notations used in the manual. Notes on the Manual - This manual is written for readers with a basic knowledge of handling broadcast cameras.
  • Page 14 Structure of Operation Manual HDK-97C High Definition Camera System Operation Manual is intended to both safely and smoothly operate the HDK-97C. The Operation Manual consists of seven chapters. By reading it in sequence, you can smoothly perform a series of steps, from connection to operation.

  • Page 15: Table Of Contents

    CONTENTS HDK-97C ( FA-97 ) 3G High Definition Camera System Operation Manual PRODUCTS CONFORMING TO RoHS DIRECTIVE . . . i 3.3 Power Connection ..... 47 Power Supply from POWER .
  • Page 16 6.5 Reset the Breaker ..... .112 Chapter 7 SPECIFICATIONS 7.1 HDK-97C Specifications ....115 7.2 External Dimensions Diagram ... .117 7.3 External Connections .

  • Page 17: Chapter 1 Outline

    OUTLINE...
  • Page 18 HDK-97C 1303 VER1 (U)

  • Page 19: Features Of This Product

    Super KNEE Includes a super KNEE function which produces the KNEE process with less saturation loss, and without changing the hue of the highlighted parts. Produces a more natural highlight appearance, rather than washing out the color. HDK-97C 1303 VER1 (U)
  • Page 20 Employs a rotating fiber camera cable connector. This enables studio shooting and field shooting at various angles. ■ Return Switch A switch to choose RET-1 or RET-2 is also equipped on the handle grip of the camera to easily switch when low angle shooting. HDK-97C 1303 VER1 (U)
  • Page 21 (page 107) for the ENGINEER camera system is used. This enables to initialize the camera status quickly even though the SET FILE and FACTORY SET FILE. settings are changed due to causes such as wrong operation of the menu. HDK-97C 1303 VER1 (U)

  • Page 22: Operating Systems

    CSU (Camera Select Unit) Used when controlling multiple cameras. With using a MCP, one CSU can control up to 8 cameras, and contains terminals through which video is output on the monitor from the selected camera. HDK-97C 1303 VER1 (U)
  • Page 23 CSU-1 CCU-8 CCU-8 PM, WFM, COMM CCU-9 CCU-9 CSU-2 CCU-16 CCU-16 CCU-17 CCU-17 CSU-3 CCU-24 CCU-24 CCU-25 CCU-25 CSU-4 CCU-32 CCU-32 ■ Example of VTR Location Configuration (Minimum Configuration of Camera, VTR, and PM) Camera Head HDK-97C 1303 VER1 (U)
  • Page 24 CPH-200 BSH-200 CCU-2 connector at the same time in this configuration. CCU-3 CP cable Coaxial cable OCP-200 75Ω termination ARC1 CP cable ARC2 CCU-4 ARC1 Coaxial cable ARC2 CPH-200 ARC3 75Ω termination CCU-5 BSH-200 CCU-6 HDK-97C 1303 VER1 (U)

  • Page 25: Connection Diagram

    OUTLINE...

  • Page 27: Chapter 2 Name And Function

    NAME and FUNCTION...
  • Page 28 HDK-97C 1303 VER1 (U)

  • Page 29: Camera And Viewfinder

    ⑦ POWER switch FILTER HEAD switch ⑭ ⑮ CC FILTER switch SHUTT/SUP-V switch ⑬ ⑯ ND FILTER switch ⑰ FILTER local indicator GAIN SELECT switch    OUTPUT SELECT switch ⑳ ⑱ AWB/ABB switch ⑲ AWB SELECT switch HDK-97C 1303 VER1 (U)
  • Page 30 ⑪ INCOM PHONE control knob Controls the volume of the intercom when the INCOM FRONT VR SELECT switch on the rear of the camera is set to "ENG" or "PROD". ⑫ Switch control panel cover Protects the switch control panel. HDK-97C 1303 VER1 (U)
  • Page 31 ABB : By setting this switch to the ABB position, automatic adjustment of black balance starts. The adjusted value is stored in memory. If the switch is set to ABB continuously even during ABB activation, automatic adjustment of black shading starts. HDK-97C 1303 VER1 (U)
  • Page 32 : Normally selected (0dB value). M : Gain value set by the menu is obtained. The set value is -3dB, +3dB, +6dB, +9dB : Gain value set by the menu is obtained. The set value is +3dB, +6dB, +9dB, +12dB. HDK-97C 1303 VER1 (U)

  • Page 33: Camera Left View

    ② VF connector VF CONNECTOR LOCK button ③ ① Shoulder belt hook ⑩ CAMERA CABLE clamp ④ VF CABLE clamp CAMERA connector ⑨ RET-1 button ⑥ ⑦ Breaker Memory Card Slot ⑪ ⑤ RET-2/MIC button ⑧ MIC CABLE clamp HDK-97C 1303 VER1 (U)
  • Page 34 When storing or retrieving data, the access indicator on the side of the the slot is lit. Do not remove the card if the access indicator is lit. This could not only destroy the data on the card but also destroy camera data. HDK-97C 1303 VER1 (U)

  • Page 35: Camera Front View

    2.1 Camera and Viewfinder Camera Front View Cable clamp ⑨ ② LENS LOCK lever  ① Lens mount ⑦ P.FUNC switch ⑥ VF CHAR button LENS connector ⑧ ⑤ ROTARY PULSE switch ④ SET button MIC button ③ HDK-97C 1303 VER1 (U)
  • Page 36 Connects a 12-pin lens cable. It is compatible with both BTA lens mounting method. "Lens Connector" (page 121) for the pin functions of the lens ⑨ Cable clamp connector. Secures the microphone cable and lens cable (pigtail cable). HDK-97C 1303 VER1 (U)

  • Page 37: Camera Rear View

    MIC-1 POWER switch ⑳ ⑭ REMOTE connector MIC-2 POWER switch ⑲ ⑮ DC IN connector MIC-1 connector ⑱ ⑯ System expansion connector ⑰ MIC-2 connector MON SDI connector HD TRUNK IN connector (Option) Q-TV2 connector (Option) HDK-97C 1303 VER1 (U)
  • Page 38 A multi-connector for input/output signals including GREEN/RED TALLY control output Note: signals, RET-1/RET-2 control input signals, and RS-422 data control signals. RS-422 data trunk line is optional. Reference: Refer to "7. SPECIFICATIONS", "I/O Connector" (page 136) for the pin functions of the I/O connector. HDK-97C 1303 VER1 (U)
  • Page 39 Q-TV/GL, MON OUT SELECT witch Selects the type of signal which is output from the Q-TV/GL, MON OUT connector. ○   INCOM-1 connector Connects the producer's intercom headset. It is compatible with XLR series or 110-type phone jack connectors. HDK-97C 1303 VER1 (U)
  • Page 40 (1.5G x2) transmission from the camera head to the CCU. And the second 1.5G video can be transmitted to the CCU as a video trunk channel. ○ Q-TV2 connector (option)   Outputs the Q-TV signals. The Q-TV signal output function only responds during BS operation. HDK-97C 1303 VER1 (U)

  • Page 41: Viewfinder (Vf421Hd)

    ⑪ MIC HOLDER attaching mount Escutcheon Front View label display ⑨ FRONT TALLY Lamp BATT PEAKING CONTRAST BRIGHT ZEBRA TALLY HIGH  PEAKING knob ④ ⑧ TALLY switch CONTRAST knob ⑤ ⑦ ZEBRA switch BRIGHTNESS knob ⑥ HDK-97C 1303 VER1 (U)
  • Page 42 R TALLY is input to various expansion devices. Since the REAR TALLY lamp serves as the switch, it can be turned ON/OFF by sliding. ⑪ MIC HOLDER attaching mount Attaches an external microphone holder. HDK-97C 1303 VER1 (U)

  • Page 43: Displays In The Viewfinder

    The zebra indicator is turned ON or OFF using the ZEBRA switch on the front of the viewfinder. Reference: Refer to "5. CAMERA SETTINGS and ADJUSTMENT", "Menu Configuration and content" (page 85) for how to set the zebra signal. HDK-97C 1303 VER1 (U)

  • Page 44: Side Mask Function

    1／１００ ⑰ Shutter speed/focus indicator/   Zoom indicator ⑱ Digital Extender ⑯ AWB memory channel ⑩ OPT level ⑫ GAIN UP value ⑮ Operational priority for filter control ⑭ ND, CC filter indication ⑨ SKIN DTL ON/OFF HDK-97C 1303 VER1 (U)
  • Page 45 ⑬ Temperature warning ＴＥＭＰ！！ Auto Setup Display ■ ② Auto setup function ＡＢＢ ⑤ Execution result of auto setup Ｏ Ｋ ＢＬＫＳＥＴ ⑥ Adjustment item of auto setup Return Video Channel Display ■ ⑲ Return video input channel ＲＥＴ−１ HDK-97C 1303 VER1 (U)
  • Page 46 (Selection between A-ch and B-ch is made by the AWB SELECT switch.) The AWB color temperature is also displayed when the FILTER switch is operated. ⑨ SKIN DTL ON/OFF "SK" is displayed when the SKIN DTL function is ON. HDK-97C 1303 VER1 (U)

  • Page 47: Installation And Connection

    INSTALLATION and CONNECTION...
  • Page 48 HDK-97C 1303 VER1 (U)

  • Page 49: Preparation

    Connection Example for Each Operating Sy tem Not only can the HDK-97C be used stand-alone for video location operation, but it can also be used in various operating systems in studio and in field as a system camera in combination with peripheral equipment such as the CCU.
  • Page 50 3.1 Preparation HDK-97C 1303 VER1 (U)
  • Page 51 INSTALLATION and CONNECTION...
  • Page 53 INSTALLATION and CONNECTION...

  • Page 55: Camera And Peripheral Installation And Connection

    Insert the rear wedge of the camera into the Camera right view groove of the tripod mount plate and move it backward slightly. Camera rear wedge Camera front wedge ④ Insert the camera wedges. Mount plate Tripod HDK-97C 1303 VER1 (U)
  • Page 56 Press the red button on the lock lever to unlock the camera. Be sure to hold the handle while pressing the button to prevent the camera from falling. Lift the camera and remove the wedges from the tripod mount plate. HDK-97C 1303 VER1 (U)

  • Page 57: Mounting And Removing The Lens

    Be sure to place the camera on a tripod or on a flat, level, stable surface when you mount the lens. The lens can be mounted to the HDK-97C either by BTA mounting method. Before proceeding any further, remove the lens cap by pushing up the lens lock lever.
  • Page 58 Counter-clockwise to the end Support the lens with your hand to prevent it from stop and remove the lens. falling. Remove the pigtail cable from the cable clamps. Put the lens cap on to protect the lens from scratches. HDK-97C 1303 VER1 (U)

  • Page 59: Mounting And Removing The Viewfinder

    Align the pins on the viewfinder cable with the viewfinder connector and push until the connector lock button clicks. CAUTION: Be careful not to catch your fingers in the lock lever or guide-rail when attaching the viewfinder. Take caution to avoid injury. HDK-97C 1303 VER1 (U)
  • Page 60 Rotate the eyepiece in the direction shown in the figure. Rotate the eyepiece until it clicks. You will hear a click sound when the eyepiece is locked to the viewfinder. mark HDK-97C 1303 VER1 (U)

  • Page 61: Attaching The Microphone

    Refer to "4. OPERATION", "4.2 Switch Position Check" (page 58) for how to select the power supply. For details on the microphone, refer to the instructions accompanying the microphone to be used. HDK-97C 1303 VER1 (U)

  • Page 62: Connecting The Headset

    Connecting the Head et Two intercom lines (1 and 2) can be connected to the HDK-97C. Please select the engineer intercom or producer intercom depending on the use. This section explains how to connect the engineer intercom to the camera.

  • Page 63: Power Connection

    Connect the DC OUT connector on the POWER and the DC IN connector on the camera via the DC POWER cable. Turn the POWER switch on the POWER ON. The POWER indicator on the POWER will light. HDK-97C 1303 VER1 (U)

  • Page 64: Power Supply From Ccu

    This completes the procedure for connecting power from the CCU-970 to the camera. There are two methods of supplying power to the camera in this state: - When operating the camera power source from the CCU. - When operating the camera power source from OCP (remote control). HDK-97C 1303 VER1 (U)
  • Page 65 To turn on the CCU MAIN POWER switch just after the switch is turned off, wait one or more seconds before you turn on the power. Repeating the on/off operation within one second activates the protector. When the protector is activated, turn on the CCU MAIN POWER switch after five or more seconds later. HDK-97C 1303 VER1 (U)
  • Page 66 Power is supplied to the camera. CAM PWR switch Note: When the CAM POWER switch on the OCP is turned "ON/OFF", only power supply to the camera is turned "ON/OFF", and the CCU power is not turned "ON/OFF". HDK-97C 1303 VER1 (U)

  • Page 67: Monitor Connection

    3.4 Monitor Connection 3.4 Monitor Connection This section explains how to connect the HDK-97C to the monitor. Connecting Camera and Monitor There are three connectors on the rear of the camera to output various video signals. The type of video signal output from each connector is different.

  • Page 68: Ccu Connection

    3.5 BS Connection 3.5 CCU Connection This section explains how to connect the HDK-97C to the CCU. CCU-970 is used here as an example. Two types of fiber cables are available in different shapes. - Fiber cable (2-core single mode) : Diameter 9.2mm or 16mm, Maximum length 3000m (when CCU-970 is used)
  • Page 69 Remove the cable from the CCU-970 while pushing the unlocking ring of the CAMERA connector on the rear of CCU-970. If the connector tip is locked, the fiber cable will not be removed. If it is locked, push the fiber cable toward the CAMERA connector, and then remove as described above. HDK-97C 1303 VER1 (U)
  • Page 70 HDK-97C 1303 VER1 (U)

  • Page 71: Chapter 4 Operation

    OPERATION...
  • Page 72 HDK-97C 1303 VER1 (U)

  • Page 73: Operating Procedures

    4.1 Operating Procedures 4.1 Operating Procedure This chapter explains how to operate the HDK-97C camera. ■  Initial Operation Check ―――――――――――――― When you use the camera for the first time after purchase, ensure that it works properly. Switch Position Check ◆...

  • Page 74: Switch Position Check

    Applicable for a dynamic microphone or a microphone with built-in power supply which requires no power supply. +48V Supplies +48V Phantom power Reference: For details on the microphone, refer to the instructions accompanying the microphone to be used. HDK-97C 1303 VER1 (U)
  • Page 75 4.2 Switch Position Check Viewfinder ■ - TALLY switch : LOW - ZEBRA switch : ON TALLY switch ZEBRA switch HDK-97C 1303 VER1 (U)

  • Page 76: Turning On Power

    : Lights when the fiber cable is not connected or there is an "open" in the fiber cable. SHORT (red) : Lights when a short circuit occurs in the fiber cable due to a cause such as water. HDK-97C 1303 VER1 (U)
  • Page 77 It is possible to use the OCP to control the camera power source. When the CAM POWER switch of OCP has been turned ON/OFF, only the camera power supply is turned ON/OFF. The CCU power supply is not turned ON/OFF. HDK-97C 1303 VER1 (U)

  • Page 78: Viewfinder Adjustment

    You can select the display mode for various markers and characters displayed in the viewfinder. Set the display mode suitable for the conditions in which the camera is used. Reference: The display mode is set by the menu. Refer to "5. CAMERA SETTINGS and ADJUSTMENT", "Menu Configuration and content" (page 85). HDK-97C 1303 VER1 (U)

  • Page 79: Output Signal Check

    LCD panel Note: When no color bar signal is not displayed on the SDTV signal while you use MCP-200 and press the "Y" button of the MONITOR SELECT buttons, refer to the operation manual for MCP-200. HDK-97C 1303 VER1 (U)

  • Page 80: Test Pulse (Cal Signal) Check

    RANGE SENS WFM/PM /Mix HEAD CLS OPEN ±1 ±2 CABLE OPEN SHORT ALARM CALL PREVIEW "R", "G", "B", "Y", "SEQ" LCD panel External Chart Check Shoot an external chart and ensure that the image is normal. HDK-97C 1303 VER1 (U)

  • Page 81: Auto Setup

    Auto setup can be activated from the camera, OCP, and MCP. See the table in the next page for which device can activate which auto setup function. Reference: For how to execute auto setup from the OCP/MCP, refer to the relevant operation manual. HDK-97C 1303 VER1 (U)
  • Page 82 - EXT (external reference) of REF is the value set by the reference set function. - The item for G channel with a circle only works when it is set with a diascope (lens option). When you use the external chart, set G channel to 100% level by IRIS. HDK-97C 1303 VER1 (U)

  • Page 83: Full Auto Setup And Level Auto Setup

    - Press the SETUP button in the function switch part. - Press the AUTO SETUP button on the LCD. - Press the Full or Level button on the LCD. - Press the Start button on the LCD. HDK-97C 1303 VER1 (U)

  • Page 84: Full Quick Auto Setup And Quick Auto Setup

    When the priority is given to the camera, an asterisk (*) is displayed in the viewfinder. Shoot a subject which contains something white. Make sure that the white subject fills at least 10% of the screen. HDK-97C 1303 VER1 (U)
  • Page 85 If the control knob is not at the center position, the control range may be biased. Note: To activate the auto white balance from an OCP, press the AWB button in the camera function operation part. To activate it from an MCP, press the AWB button on the LCD. HDK-97C 1303 VER1 (U)

  • Page 86: Auto Black Balance

    Note: To activate the auto black balance from an OCP, press the ABB button in the camera function operation part. To activate it from an MCP, press the ABB button on the LCD. ＡＢＢ Ｏ Ｋ HDK-97C 1303 VER1 (U)

  • Page 87: Auto Black Shading

    - To activate the auto black shading from an OCP, press the ABB button in the camera function operation part. - To activate it from an MCP, press the Quick button on the LCD, then press the ABB button. Ａ.ＢＬＫ ＳＨＡＤＥ ＢＬＡＣＫ ＳＨＡＤＥ Ａ.ＢＬＫ ＳＥＴ Ｏ Ｋ HDK-97C 1303 VER1 (U)

  • Page 88: Preparation For Shooting In Particular Environment

    When shooting where the electromagnetic field is excessively Rainproof cover strong, such as in airports, military bases or transmitting stations, completely shield the camera by thoroughly covering it with aluminum foil. It is necessary to take the same measure for other devices. HDK-97C 1303 VER1 (U)

  • Page 89: Camera Settings And Adjustment

    CAMERA SETTINGS and ADJUSTMENT...
  • Page 90 HDK-97C 1303 VER1 (U)

  • Page 91: Settings Using Switches On The Camera

    Set the INCOM FRONT VR SELECT switch on the rear of the camera to INCOM-1 or INCOM-2. Turn the INCOM PHONE control knob on the right side of the camera to adjust the volume. CAUTION: Be sure to adjust the volume to the appropriate level while listening to sound through the headset. HDK-97C 1303 VER1 (U)

  • Page 92: Selecting Shutter Speed

    SEMI REMOTE MODE is set to "OFF"). For details on how to operate the various remote controllers, refer to the instruction manuals attached to the remote controllers. Camera right view Camera front view (Switch control panel) CHAR P.FUNC PUSH MENU Rotary pulse switch SHUTT/SUP-V switch HDK-97C 1303 VER1 (U)
  • Page 93 - Set the SHUTT/SUP-V switch to OFF. The displayed speed is maintained until the switch is set to ON. The shutter speed is validated when the switch is set to ON. ■ To cancel the Shutter Speed Set the SHUTT/SUP-V switch to OFF. HDK-97C 1303 VER1 (U)

  • Page 94: Enhancing The Vertical Resolution (Super-V Function)

    Each time the SHUTT/SUP-V switch is pressed to the SET position, the mode switches in the order of preset shutter, variable shutter and SUPER-V. Select "SUPER-V." Note: The flashing stops automatically in approximately 3 seconds after the setting operation ends. Press the SET button. To Cancel the Super-V Function ■ Set the SHUTT/SUP-V switch to OFF. HDK-97C 1303 VER1 (U)

  • Page 95: Switching The Gain

    For details on how to operate the various remote controllers, refer to the instruction manuals attached to the remote controllers. Use the GAIN (dB) on the remote controller to switch the setting according to the conditions. HDK-97C 1303 VER1 (U)

  • Page 96: Allocating Functions To The P.func Switch

    Turns ON/OFF scene file 7 SCENE-8 Turns ON/OFF scene file 8 Set the P.FUNC switch to ON. The allocated function is now activated. Note: Setting the P.FUNC switch to OFF will turn the allocated function OFF. HDK-97C 1303 VER1 (U)

  • Page 97: Screen Detail Enhancement (Dtl)

    Functions to the P.FUNC Switch" (page 80) for how to allocate the function. Activating from the Remote Controller ■ Reference: For details on how to operate the various remote controllers, refer to the instruction manuals attached to the remote controllers. HDK-97C 1303 VER1 (U)

  • Page 98: Settings From The Menu

    This section explains how to display the simple menu in the viewfinder and monitor. Press the SET button while holding down the VF ＊＊＊ ＭＥＮＵ ＊＊＊ CHAR button on the front of the camera. ＶＦ DＩＳＰＬＡＹ The main menu appears in the viewfinder and monitor. ＶＦ DＴL ＲＥＴＵＲＮ ＳＥＬＥＣＴ ＭＯＤＥ ＦＩＬＴＥＲ ＳＥＲＶＯ ＭＯＤＥ ＣＯＬＯＲ ＶＦ ＭＯＤＥ ＩＮＦＯＲＭＡＴＩＯＮ  HDK-97C 1303 VER1 (U)
  • Page 99 If the SET button is not pressed after selecting a value in the mode selection column, the change may be canceled. Note: - To return to the main menu, select " " and press the SET button. - The scroll guide is displayed on the submenu containing multiple items. HDK-97C 1303 VER1 (U)
  • Page 100 This section explains how to exit the main menu/submenu in the viewfinder or monitor. Press the VF CHAR button on the front of the camera. The main menu/submenu disappears. Note: The menu in SE operation terminates when the MENU switch is turned OFF. HDK-97C 1303 VER1 (U)

  • Page 101: Menu Configuration And Content

    *1 : It is possible to determine when loading MENU DATA from the SD CARD whether to read the entire MENU or to read only items related to VF. The setting of an item having a checkmark is read. HDK-97C 1303 VER1 (U)
  • Page 102 Differs from WORKING TIME because it can be reset by the SUB TIME display) user. ROM NO. displays the ROM version (STR-4895V**) of the STR-****-V**.**.** ROM NO. MPU-A module. CHECK SUM displays the ROM data check sum. CHECK SUM HDK-97C 1303 VER1 (U)
  • Page 103 +100. Can only be set during self-operation. TIME SETTING HH : MM : SS TIME Sets the time and date when saving the file to the memory card. YY / MM / DD DATE (YY/MM/DD) HDK-97C 1303 VER1 (U)
  • Page 104 GAIN changing switch, AWB OFF, ON SEMI REMOTE MODE changing switch, output changing switch and SHUTT/SUP-V switch on the right side of the camera. In this case, control on the remote controller side is not possible. HDK-97C 1303 VER1 (U)
  • Page 105 ABB to create reference fi le. FULL ： Sets the reference values for all auto setup items, except REFERENCE SET AWB convergence value. AWB ： Sets the user setting as AWB convergence value. ABB ： Sets a reference value of pedestal. HDK-97C 1303 VER1 (U)
  • Page 106 TYPE3 : The compression rate of brightness is high. If the V filter of the DTL is ON, the resolution feeling in ON, OFF direction V diminishes, making it possible to obtain an image DTL V FILTER with less noise. HDK-97C 1303 VER1 (U)
  • Page 107 FACTORY : Initializes the state back to the initial factory FILE SELECT setting. READY READY, START, CANCEL Executes initialization. LOAD START *4 : CUSTOM GAMMA MODE - Loads the custom gamma data from SD card through the LOAD menu. HDK-97C 1303 VER1 (U)
  • Page 108 - Use an illumination meter to adjust the light so that light is evenly distributed over the whole chart. Dip switch S11-4 On allows creation of a lens file, Off prohibits creation of new lens files. HDK-97C 1303 VER1 (U)
  • Page 109 Lens files memorize a difference in level between lenses. If the lighting or chart is changed, it cannot tell whether it is the lighting error, chart error, or lens error. HDK-97C 1303 VER1 (U)
  • Page 110 （ＢＢ４０Ｘ１０ ＢＣＤＥ           ） on "MANUAL" to "OFF", and press the SET button ＥＸＴＥＮＤＥＲ          ＯＦＦ to complete the lens file creation. Then, go to ＡＵＴＯ ＳＥＬ          ＯＦＦ M④ ＦＩＬＥ ＳＥＴ          ＯＦＦ Step 8. ＬＥＮＳ ＴＹＰＥ         ＊＊＊ Switch the cursor on "MANUAL" to "OFF"        ＬＥＮＳ ＮＯ．１ and confirm. HDK-97C 1303 VER1 (U)
  • Page 111 Select the target lens The NO.5 lens set in "AUTO SEL" is selected here as （ＡＢ４０Ｘ１０ ＡＢＣＤ           ） number and confirm. ＥＸＴＥＮＤＥＲ  ＯＦＦ an example and the AUTO SEL NAME display part ＡＵＴＯ ＳＥＬ  ＯＦＦ displays "AB40X10 ABCD". ＦＩＬＥ ＳＥＴ  ＯＦＦ HDK-97C 1303 VER1 (U)
  • Page 112 SET button. E⑧ （ＡＢ４０Ｘ１０ ＡＢＣＤ           ） Position the cursor on The item changes to the edit mode and ( ) at both ends the part for displaying flash. the lens name to be edited and confirm. ＮＯＷ ＣＯＮＮＥＣＴＥＤ ＬＥＮＳ （ＡＢ４０Ｘ１０ ＡＢＣＤ           ） HDK-97C 1303 VER1 (U)
  • Page 113 3. "AUTO SEL NAME EDIT" is a function to edit the model name read through "AUTO READ". 4. This function is not available if the model name of the target serial lens has not been obtained through "AUTO READ". HDK-97C 1303 VER1 (U)

  • Page 114: Using The Memory Card

    VF menu screen. When removing the memory card from the card slot, gently press the memory card until there is a clicking sound and then carefully remove the card. HDK-97C 1303 VER1 (U)
  • Page 115 Never remove the memory card from the slot during display of [SAVING FILE] or while the access indicator is lighted, as data is being written to the memory card. Removing it at this time could damage the memory card data or the memory card itself. HDK-97C 1303 VER1 (U)
  • Page 116 ＯＶＥＲＷＲＩＴＥ   ＮＯ Note: The images of the storage range for files are shown in the figure below. ALL FILE SNAPSHOT FILE Parameters for adjusting functions and ON/OFF state. SCENE FILE REFERENCE FILE (ABB/AWB) LENS FILE MENU FILE HDK-97C 1303 VER1 (U)
  • Page 117 If changes as those listed below have been made in the file name stored to a PC, etc., it is not possible to display the file name normally. -If a file name with more than 8 characters has been set. -Using file names (kanji, kana, etc.) composed of characters other than half-size letters of the alphabet. HDK-97C 1303 VER1 (U)
  • Page 118 NOT CAMERA DATA FILE. Not a camera data file. FILE OF DIFFERENT CAMERA. Different type of file. RELEVANT DATA IS NOT FOUND. Relevant data cannot be found. WIRTE ERROR Write error. READ ERROR Read error. ERROR Other error. HDK-97C 1303 VER1 (U)

  • Page 119: Trouble Shooting And Maintenance

    TROUBLE SHOOTING and MAINTENANCE...
  • Page 120 HDK-97C 1303 VER1 (U)

  • Page 121: Alarm Lamp On The Ocp Or Mcp Flashes On And Off

    HEAD CLS OPEN ±1 ±2 CABLE OPEN SHORT ALARM CALL PREVIEW ALARM indicator For the list of self diagnostic information of CCU, refer to the relevant operation manual. Perform the appropriate action referring to the list. HDK-97C 1303 VER1 (U)

  • Page 122: Temp!!" Or "Fan!!" Appears On The Vf Screen

    To prevent temperature increase inside the camera, cooling fans are provided at the top of the camera and fiber adaptor. For how to check which fan stops, refer to "5. CAMERA SETTINGS and ADJUSTMENT", "Menu Configuration and content" (page 85). HDK-97C 1303 VER1 (U)

  • Page 123: Initializing The Settings Of This Product

    Press the SET button when the cursor ＰＲＥＳＥＴ ＦＩＬＥ ＬＯＡＤ automatically moves to "LOAD START". ＦＩＬＥ ＳＥＬＥＣＴ    ＥＮＧＩＮＥＥＲ The cursor moves to the mode selection column and ④ ＬＯＡＤ ＳＴＡＲＴ     ＲＥＡＤＹ its display changes from "READY" to "START". Position the cursor on "LOAD START" and confirm. HDK-97C 1303 VER1 (U)
  • Page 124 file "COMPLETED" is selected in "FILE SELECT". displayed at the bottom of the screen. ＰＲＥＳＥＴ ＦＩＬＥ ＬＯＡＤ ＦＩＬＥ ＳＥＬＥＣＴ    ＥＮＧＩＮＥＥＲ ＬＯＡＤ ＳＴＡＲＴ     ＳＴＡＲＴ ⑥     ＣＡＭＥＲＡ ＲＥＳＴＡＲＴ "CAMERA RESTART" is displayed at the bottom of the screen. HDK-97C 1303 VER1 (U)

  • Page 125: Cleaning Camera Connectors

    Plug (male) Alignment sleeve Receptacle (female) Receptacle (female) Ferrule Ferrule Ferrule Receptacle (male) Receptacle (male) Ferrule Male and Female Camera Connectors ● Receptacle (male) CCU-970 rear Plug (female) BREAKER RET-1 RET-2 /MIC HDK-97A Receptacle (female) Plug (male) HDK-97C 1303 VER1 (U)
  • Page 126 Tighten the screw with a flat-blade screwdriver or a coin. Camera male connectors have no "top" regardless of whether they are receptacles or plugs. For male connectors, therefore, steps 1, 2, and 6 above are not required. HDK-97C 1303 VER1 (U)
  • Page 127 The extractor is removed from the alignment sleeve. Camera male connectors have neither "top" nor "alignment sleeve" regardless of whether they are receptacles or plugs. For male connectors, therefore, steps 1 to 3 and 8 above are not required. HDK-97C 1303 VER1 (U)

  • Page 128: Reset The Breaker

    In this case, reset the breaker as follows: Check that the camera's POWER switch is OFF. Push in the breaker on the left side of the camera. Breaker HDK-97C 1303 VER1 (U)

  • Page 129: Chapter 7 Specifications

    SPECIFICATIONS...
  • Page 130 HDK-97C 1303 VER1 (U)

  • Page 131: Hdk-97C Specifications

    : -30 ℃ to +60 ℃ 30 ％ to 90 ％ No condensation. Ambient humidity FCC Class A Approx. W138.5×H270×D337 Not including projections. External dimensions HDK-97C+FA-97 ： 4.6 kg 2 Inch VF : 770 g Weight 9 Inch VF ： 2.1 kg Uses attachment. Performance ■...
  • Page 132 37.5Ω/Km per cable Power cables 113Ω/Km per cable Control cables ■ Applicable standards Safety Standards : CE / FCC Use conditions ■ Electrical environment : Usually a short life (Except electric field strength, magnetic field strength, etc.) HDK-97C 1303 VER1 (U)

  • Page 133: External Dimensions Diagram

    7.2 External Dimensions Diagram 7.2 External Dimen ion Diagram ■  Right View ±5 ±1 HDK-97C 1303 VER1 (U)
  • Page 134 7.2 External Dimensions Diagram ■  Left View ±3 ±1 ±5 HDK-97C 1303 VER1 (U)
  • Page 135 7.2 External Dimensions Diagram ■  Front View ±3 138.5 HDK-97C 1303 VER1 (U)
  • Page 136 7.2 External Dimensions Diagram ■  Rear View ±3 138.5 HDK-97C 1303 VER1 (U)

  • Page 137: External Connections

    (6.2 V± 0.1 V) F 16 : 3.4 V± 0.05 V ⑦ IRIS FOLLOW (3.4 V± 0.1 V) CLOSE : 2.5 V± 0.2 V (2.1 V to 2.9 V) Zin = 100 kΩ± 2% (100 kΩ or more) HDK-97C 1303 VER1 (U)
  • Page 138 + 0.5 V CMOS level ⑫ CAMERA → LENS (VCC 5V ±0.25V) Numbers within parentheses are standard values in the conventional SDTV system of 2/3-inch camera lens. : camera <- lens OUT : camera -> lens HDK-97C 1303 VER1 (U)
  • Page 139 Ground for B VF VIDEO output signal ⑰ B VF VIDEO RET R VF VIDEO output signal ⑱ R VF VIDEO Ground for R VF VIDEO output signal ⑲ R VF VIDEO RET Ground for DC+12V power supply ⑳ +12V RET HDK-97C 1303 VER1 (U)
  • Page 140 OPT B - H Control signal (H) BS -> Camera ③ CONTROL (H) Control signal (C) Camera -> BS ④ CONTROL (C) Power (H) supplied from BS ⑤ POWER (H) Power (C) supplied from BS ⑥ POWER (C) HDK-97C 1303 VER1 (U)
  • Page 141 Shield for intercom microphone input (H) ③ TALK (C) Intercom microphone input (H) ④ TALK (H) COMM GND terminal ⑤ COMM Intercom receiver R output (H) ⑥ LISTEN R (H) Shield for Intercom receiver R output (H) ⑦ LISTEN R (C) HDK-97C 1303 VER1 (U)
  • Page 142 Pin No. Name Function External Interface Shield for intercom microphone input (H) ① TALK (C) Intercom microphone input ② TALK (H) Shield for LISTEN output (H) ③ LISTEN (C) LISTEN L output (H) ④ LISTEN (H) HDK-97C 1303 VER1 (U)
  • Page 143 Connect to R (ring) of plug Termination for when the plug was removed ③ LISTEN L (C) Termination for when the plug was removed ④ TALK (C) Intercom microphone input (H) ⑤ TALK (H) Connect to T (tip) of plug HDK-97C 1303 VER1 (U)
  • Page 144 : XLR-4-11C (4-pin female plug) or equivalent Insertion Side Pin No. Name Function External Interface +12V input RET ① +12 V RET ――――――――――――――――――――― ― ② ――――――――――――――――――――― ― ③ +12V input (11V to 16V) ④ +12 V IN HDK-97C 1303 VER1 (U)
  • Page 145 DC +12V power supply to remote controller ○ + 12 V (REM) Ground for DC +12V power supply ○ + 12 V RET (REM) Intercom output from remote controller ○ REM LISTEN Intercom input to remote controller ○ REM TALK HDK-97C 1303 VER1 (U)
  • Page 146 0.7 V 0.35 V Zout = 75 (Unusable) ― N . C ○ (Unusable) ― N . C ○ (Unusable) ― N . C ○ (Unusable) ― ○ N . C (Unusable) ― ○ N . C HDK-97C 1303 VER1 (U)
  • Page 147 : 3.4 V± 0.05 V ○ IRIS CONT (3.4 V± 0.1 V) CLOSE : 2.5 V± 0.2 V (2.1 V to 2.9 V) Zout = 1 kΩ± 10% (fixed) LENS ground in SE operation ○ LENS COMM HDK-97C 1303 VER1 (U)
  • Page 148 (Unusable) ― ○ N . C (Unusable) ― ○ N . C (Unusable) ― ○ N . C (Unusable) ― ○ N . C (Unusable) ― ○ N . C (Unusable) ― ○ N . C HDK-97C 1303 VER1 (U)
  • Page 149 : PRC05-P3M Insertion Side Pin No. Name Function External Interface DC + 12V power supply ○ + 12 V Ground for DC + 12V power supply ○ + 12 V RET ――――――――――――――――――――― ― ○ N . C HDK-97C 1303 VER1 (U)

  • Page 150: Scene File

    7.4 Scene File 7.4 Scene File ■ Save condition of a HDK-97C scene file BSF-55 Item Save Data SELF DTL CONT HEAD GAIN -6dB to +18dB CAMERA CAMERA GAMMA OFF/0.35/0.40/0.45 CAMERA CAMERA GAMMA TYPE NORMAL, CINE1 to 2, CUSTOM1 to 5...

  • Page 151: Changing Information

    CHANGING INFORMATION This chapter contains the revision information of user-specific specification or design change requested by users or any changes done by Ikegami. Read by comparing this information with the main part of the operation manual. HDK-97C 1303 VER1 (U)
  • Page 152 HDK-97C 1303 VER1 (U)
  • Page 153 Ikegami Tsushinki Co., Ltd. - All rights reserved. Reproduction or duplication, without permission of Ikegami Tsushinki Co., Ltd. of editorial or pictorial content in whole or in part, in any manner, is prohibited. - Specifications and design are subject to change without prior notice.
  • Page 156 Ikegami T u hinki Co., Ltd. 5-6-16, Ikegami, Ohta-ku, Tokyo, 146-8567, Japan Phone : +81-(0)3-5700-4114 Fax : +81-(0)3-5748-2200 E-Mail : info_e@ikegami.co.jp URL : http://www.ikegami.co.jp/en/ Ikegami Electronic (U.S.A.),Inc. 37 Brook Avenue, Maywood, New Jer ey 07607, U.S.A. Phone : +1-201-368-9171 Fax : +1-201-569-1626 E-Mail : engineering@ikegami.com, ervice@ikegami.com...

This manual is also suitable for:

Fa-97

Table of Contents
