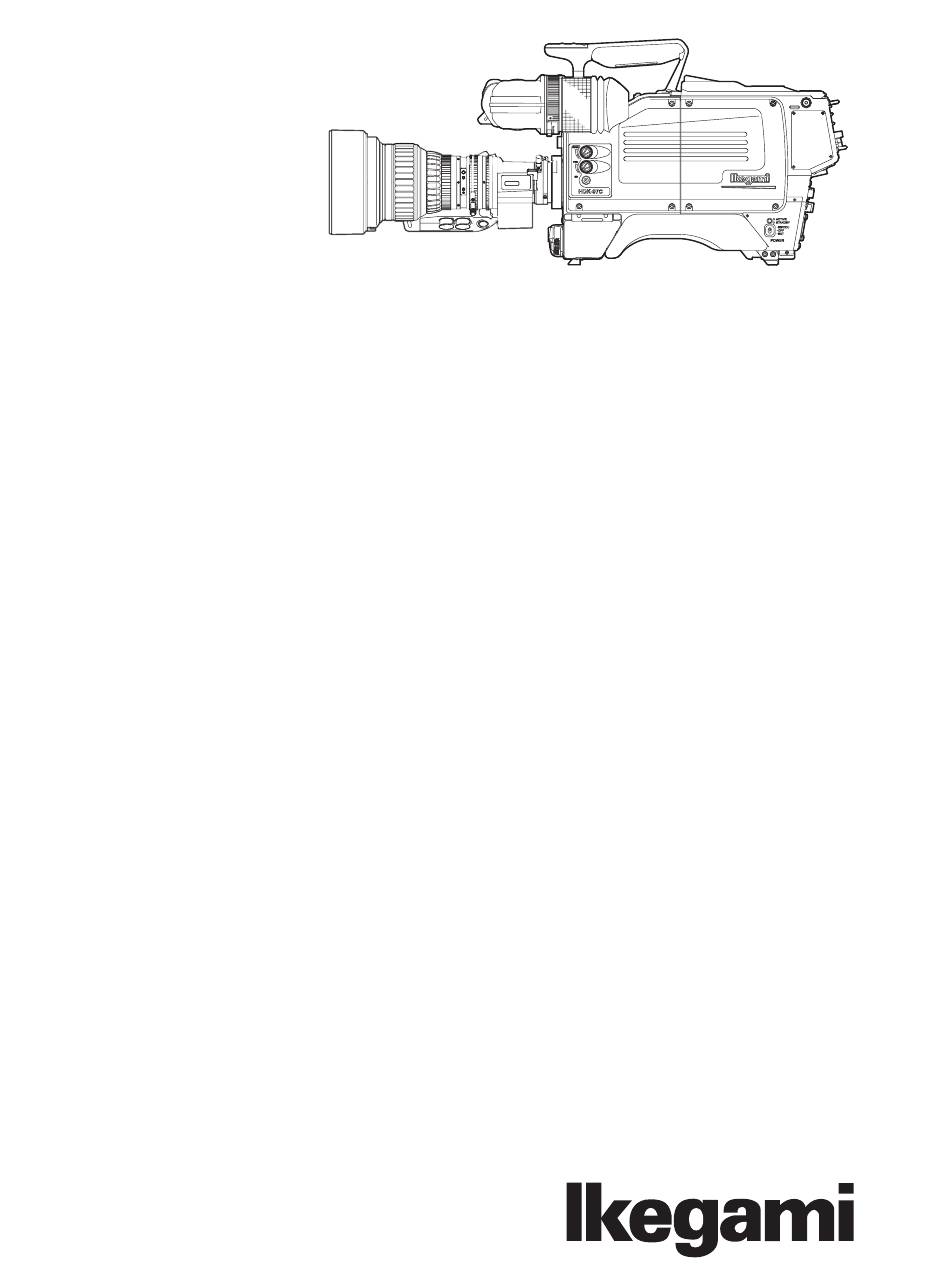

- Page 1 HDK-97C ( FA-97 ) 3G HIGH DEFINITION CAMERA SYSTEM Head Menu and Lens File OPERATION MANUAL...
-
Page 2: Settings From The Menu
This section explains how to display the simple menu in the viewfinder and monitor. Press the SET button while holding down the VF ＊＊＊ ＭＥＮＵ ＊＊＊ CHAR button on the front of the camera. ＶＦ DＩＳＰＬＡＹ The main menu appears in the viewfinder and monitor. ＶＦ DＴL ＲＥＴＵＲＮ ＳＥＬＥＣＴ ＭＯＤＥ ＦＩＬＴＥＲ ＳＥＲＶＯ ＭＯＤＥ ＣＯＬＯＲ ＶＦ ＭＯＤＥ ＩＮＦＯＲＭＡＴＩＯＮ HDK-97C 1303 VER1 (U) - Page 3 If the SET button is not pressed after selecting a value in the mode selection column, the change may be canceled. Note: - To return to the main menu, select " " and press the SET button. - The scroll guide is displayed on the submenu containing multiple items. HDK-97C 1303 VER1 (U)
- Page 4 This section explains how to exit the main menu/submenu in the viewfinder or monitor. Press the VF CHAR button on the front of the camera. The main menu/submenu disappears. Note: The menu in SE operation terminates when the MENU switch is turned OFF. HDK-97C 1303 VER1 (U)
- Page 5 *1 : It is possible to determine when loading MENU DATA from the SD CARD whether to read the entire MENU or to read only items related to VF. The setting of an item having a checkmark is read. HDK-97C 1303 VER1 (U)
- Page 6 Differs from WORKING TIME because it can be reset by the display) user. ROM NO. displays the ROM version (STR-4895V**) of the ROM NO. STR-****-V**.**.** MPU-A module. CHECK SUM CHECK SUM displays the ROM data check sum. HDK-97C 1303 VER1 (U)
- Page 7 +100. Can only be set during self-operation. TIME SETTING TIME HH : MM : SS Sets the time and date when saving the file to the memory card. DATE (YY/MM/DD) YY / MM / DD HDK-97C 1303 VER1 (U)
- Page 8 GAIN changing switch, AWB SEMI REMOTE MODE OFF, ON changing switch, output changing switch and SHUTT/SUP-V switch on the right side of the camera. In this case, control on the remote controller side is not possible. HDK-97C 1303 VER1 (U)
- Page 9 ABB to create reference fi le. FULL ： Sets the reference values for all auto setup items, except REFERENCE SET AWB convergence value. AWB ： Sets the user setting as AWB convergence value. ABB ： Sets a reference value of pedestal. HDK-97C 1303 VER1 (U)
- Page 10 TYPE3 : The compression rate of brightness is high. If the V filter of the DTL is ON, the resolution feeling in DTL V FILTER ON, OFF direction V diminishes, making it possible to obtain an image with less noise. HDK-97C 1303 VER1 (U)
- Page 11 FACTORY : Initializes the state back to the initial factory FILE SELECT setting. READY READY, START, CANCEL Executes initialization. LOAD START *4 : CUSTOM GAMMA MODE - Loads the custom gamma data from SD card through the LOAD menu. HDK-97C 1303 VER1 (U)
- Page 12 - Use an illumination meter to adjust the light so that light is evenly distributed over the whole chart. Dip switch S11-4 On allows creation of a lens file, Off prohibits creation of new lens files. Dip switch S11-4 On allows creation of a lens file, HDK-97C 1303 VER1 (U)
- Page 13 Lens files memorize a difference in level between lenses. If the lighting or chart is changed, it cannot tell whether it is the lighting error, chart error, or lens error. HDK-97C 1303 VER1 (U)
- Page 14 （ＢＢ４０Ｘ１０ ＢＣＤＥ ） on "MANUAL" to "OFF", and press the SET button ＥＸＴＥＮＤＥＲ ＯＦＦ to complete the lens file creation. Then, go to ＡＵＴＯ ＳＥＬ ＯＦＦ M④ ＦＩＬＥ ＳＥＴ ＯＦＦ Step 8. ＬＥＮＳ ＴＹＰＥ ＊＊＊ Switch the cursor on "MANUAL" to "OFF" ＬＥＮＳ ＮＯ．１ and confirm. HDK-97C 1303 VER1 (U)
- Page 15 Select the target lens （ＡＢ４０Ｘ１０ ＡＢＣＤ ） The NO.5 lens set in "AUTO SEL" is selected here as number and confirm. ＥＸＴＥＮＤＥＲ ＯＦＦ an example and the AUTO SEL NAME display part ＡＵＴＯ ＳＥＬ ＯＦＦ displays "AB40X10 ABCD". ＦＩＬＥ ＳＥＴ ＯＦＦ HDK-97C 1303 VER1 (U)
- Page 16 SET button. E⑧ （ＡＢ４０Ｘ１０ ＡＢＣＤ ） Position the cursor on The item changes to the edit mode and ( ) at both ends the part for displaying flash. the lens name to be edited and confirm. ＮＯＷ ＣＯＮＮＥＣＴＥＤ ＬＥＮＳ （ＡＢ４０Ｘ１０ ＡＢＣＤ ） HDK-97C 1303 VER1 (U)
- Page 17 3. "AUTO SEL NAME EDIT" is a function to edit the model name read through "AUTO READ". 4. This function is not available if the model name of the target serial lens has not been obtained through "AUTO READ". HDK-97C 1303 VER1 (U)
-
Page 18: Using The Memory Card
VF menu screen. When removing the memory card from the card slot, gently press the memory card until there is a clicking sound and then carefully remove the card. HDK-97C 1303 VER1 (U) - Page 19 Never remove the memory card from the slot during display of [SAVING FILE] or while the access indicator is lighted, as data is being written to the memory card. Removing it at this time could damage the memory card data or the memory card itself. HDK-97C 1303 VER1 (U)
-
Page 20: Scene File
ＯＶＥＲＷＲＩＴＥ ＮＯ Note: The images of the storage range for files are shown in the figure below. ALL FILE SNAPSHOT FILE Parameters for adjusting functions and ON/OFF state. SCENE FILE REFERENCE FILE (ABB/AWB) LENS FILE MENU FILE HDK-97C 1303 VER1 (U) - Page 21 If changes as those listed below have been made in the file name stored to a PC, etc., it is not possible to display the file name normally. -If a file name with more than 8 characters has been set. -Using file names (kanji, kana, etc.) composed of characters other than half-size letters of the alphabet. HDK-97C 1303 VER1 (U)
-
Page 22: Error Message
NOT CAMERA DATA FILE. Not a camera data file. FILE OF DIFFERENT CAMERA. Different type of file. RELEVANT DATA IS NOT FOUND. Relevant data cannot be found. WIRTE ERROR Write error. READ ERROR Read error. ERROR Other error. HDK-97C 1303 VER1 (U)
