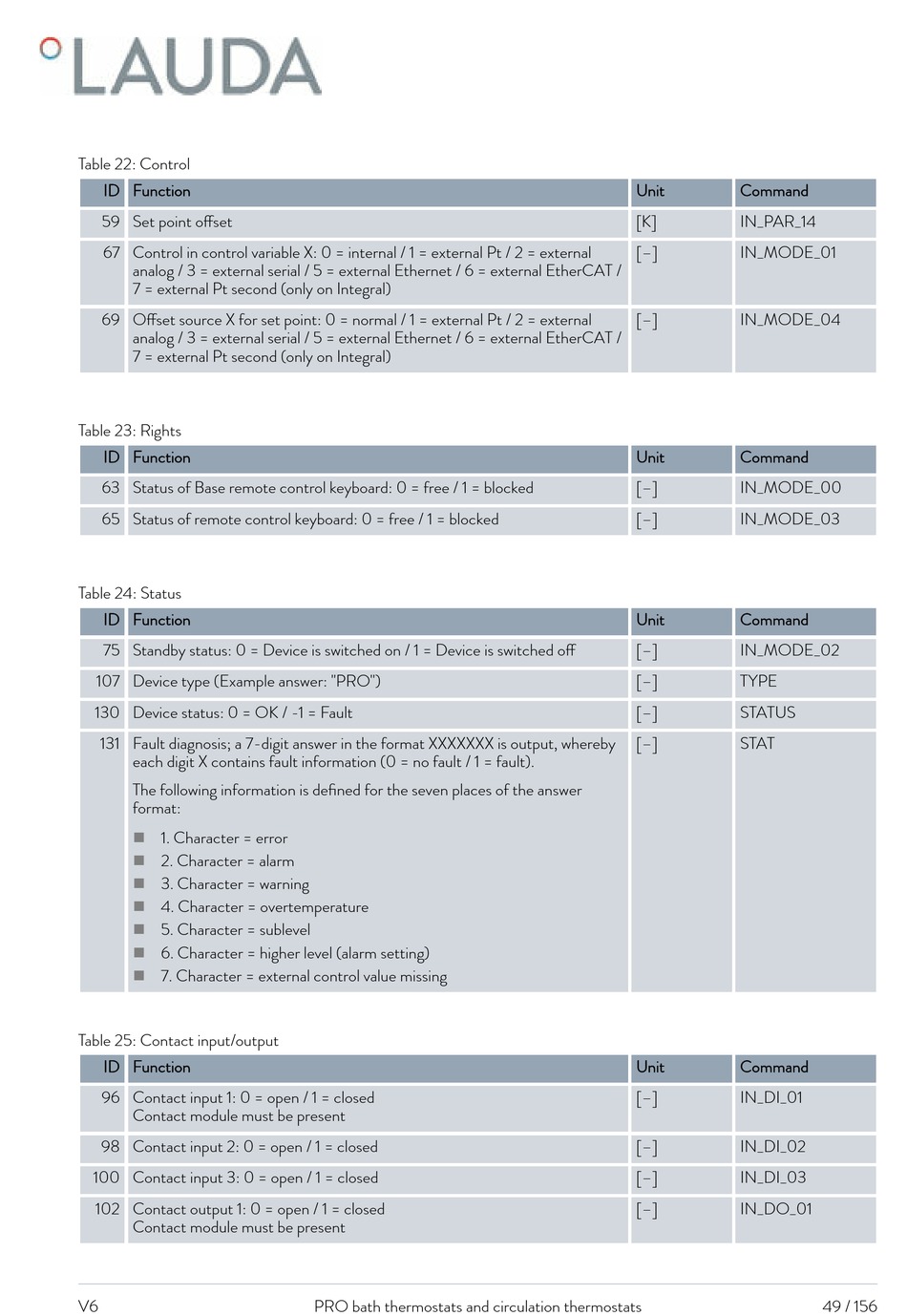

Table 22: Control
ID Function
59 Set point offset
67 Control in control variable X: 0 = internal / 1 = external Pt / 2 = external
analog / 3 = external serial / 5 = external Ethernet / 6 = external EtherCAT /
7 = external Pt second (only on Integral)
69 Offset source X for set point: 0 = normal / 1 = external Pt / 2 = external
analog / 3 = external serial / 5 = external Ethernet / 6 = external EtherCAT /
7 = external Pt second (only on Integral)
Table 23: Rights
ID Function
63 Status of Base remote control keyboard: 0 = free / 1 = blocked
65 Status of remote control keyboard: 0 = free / 1 = blocked
Table 24: Status
ID Function
75 Standby status: 0 = Device is switched on / 1 = Device is switched off
107 Device type (Example answer: "PRO")
130 Device status: 0 = OK / -1 = Fault
131 Fault diagnosis; a 7-digit answer in the format XXXXXXX is output, whereby
each digit X contains fault information (0 = no fault / 1 = fault).
The following information is defined for the seven places of the answer
format:
1. Character = error

2. Character = alarm

3. Character = warning

4. Character = overtemperature

5. Character = sublevel

6. Character = higher level (alarm setting)

7. Character = external control value missing

Table 25: Contact input/output
ID Function
96 Contact input 1: 0 = open / 1 = closed
Contact module must be present
98 Contact input 2: 0 = open / 1 = closed
100 Contact input 3: 0 = open / 1 = closed
102 Contact output 1: 0 = open / 1 = closed
Contact module must be present
V6 PRO bath thermostats and circulation thermostats
Unit Command
[K] IN_PAR_14
[–] IN_MODE_01
[–] IN_MODE_04
Unit Command
[–] IN_MODE_00
[–] IN_MODE_03
Unit Command
[–] IN_MODE_02
[–] TYPE
[–] STATUS
[–] STAT
Unit Command
[–] IN_DI_01
[–] IN_DI_02
[–] IN_DI_03
[–] IN_DO_01
