Installation type
Portable wet well
Dry well installation
Horizontal installation
Key:
– = Not permitted, • = Permitted
5.2
Installation
•
Wear protective equipment!
•
Do not install a damaged or defective pump.
•
Frost-free location.
•
Lay the connection cable properly. During operation there must
be no danger (stumbling, damage, etc.).
•
Float switch must be able to move freely!
5.2.1
Stationary wet well installation
For stationary wet well installation, the pump is installed directly
onto the pressure pipe. Observe and adhere to the following
points:
•
The connected pressure pipe must be self-supporting. The
pressure pipe must not be supported by the pump.
•
The pump may oscillate slightly during operation. These oscilla-
tions must be dissipated via the pressure pipe.
•
Ensure that the connection to the pressure pipe is stress-free –
do not screw it in too tightly.
•
Seal pipe connections with Teflon tape.
•
Install all specified valves in accordance with local requirements
(gate valve, non-return valve).
•
Install the pressure pipe so that it is protected from frost.
•
Install the pressure pipe as a "pipe loop" to avoid backflow from
the main public sewer.
At its highest point, the bottom edge of the pipe loop must be
above the locally determined backflow level!
8
Wilo-Drain ...
TS ...
TSW ...
•
•
–
–
–
–
Installation and operating instructions • Wilo-Drain TS/TSW 32 • Ed.01/2022-07
ON
OFF!
min. 400x400 mm
min. 16x16 in

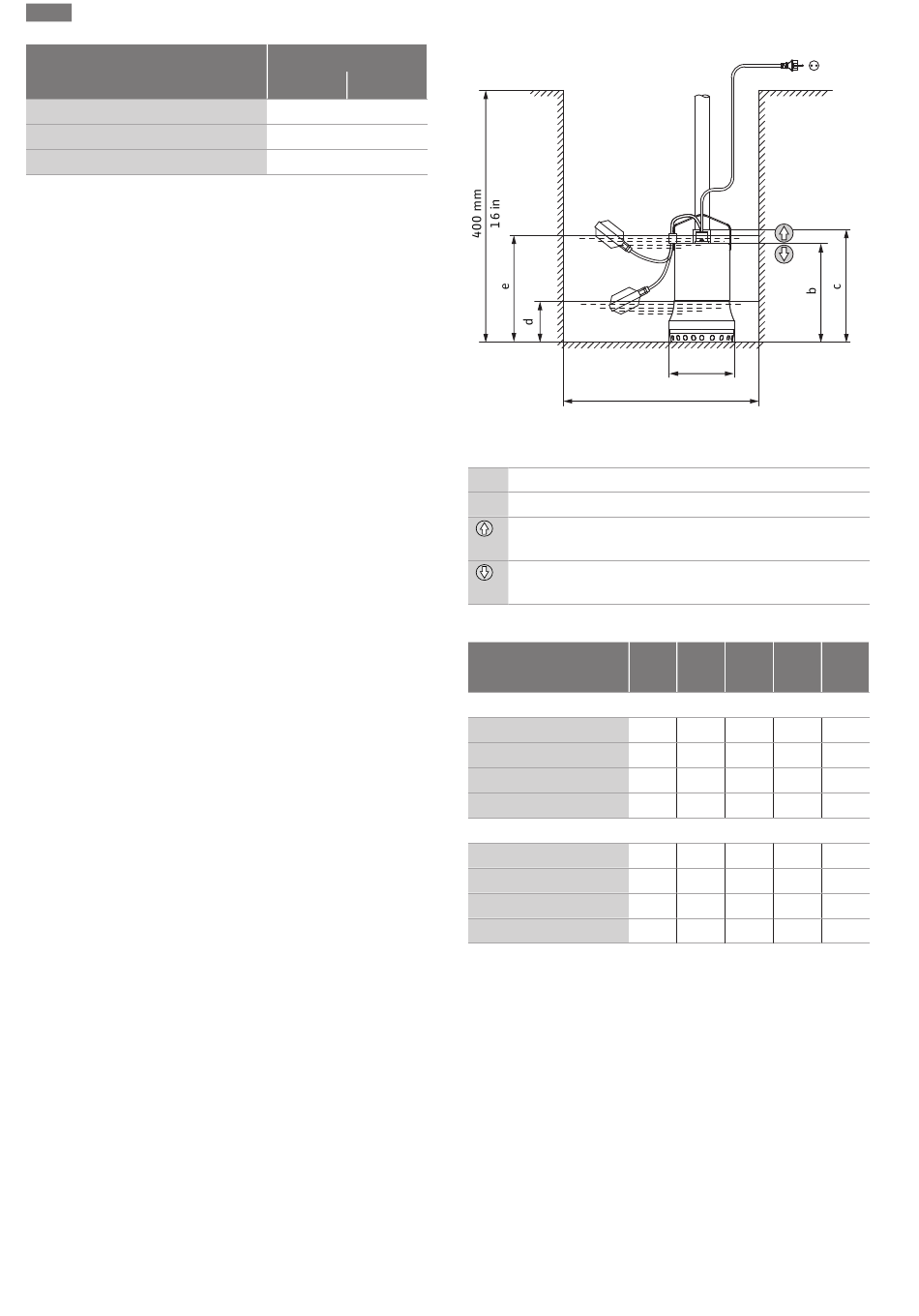

Fig. 2: Installation dimensions and switching points
ON
Switch-on level (dimension: h)
OFF
Switch-off level (dimension: g)
Fill level above: Continuous duty (operating mode im-
mersed)
Fill level below: Intermittent periodic duty (operating mode
non-immersed)
Installation dimensions
Pump type
a
Wilo-Drain ...
Dimensions in mm
TS 32/9-A ...
161
TS 32/12-A ...
161
TSW 32/8-A ...
171
TSW 32/11-A ...
171
Dimensions in inches
TS 32/9-A ...
6
TS 32/12-A ...
6
TSW 32/8-A ...
7
TSW 32/11-A ...
7
✓
Site is prepared.
✓
Pressure pipe properly installed
1.
Screw the discharge pipe fully into the pump's discharge con-
nection.
2.
Position the pump at the installation site.
CAUTION! Use a hard surface or underlay at the installation
site to prevent sinking on soft substrate.
3.
Connect the discharge pipe to the pressure pipe (e.g. using a
flexible hose section).
4.
Secure the connection cable to the pressure pipe and route it
to the socket.
▶
Pump is installed.
S1
S3
a
b
c
d
e
246
280
130
330
266
300
140
340
270
300
130
350
290
320
140
360
9.5
11
5
13
10.5
12
5.5
13.4
10.5
12
5
13.7
11.5
12.5
5.5
14
