Wilo -DrainLift Con Installation And Operating Instructions Manual
Hide thumbs
Also See for Wilo-DrainLift Con:
- Installation and operating instructions manual (110 pages)
Table of Contents
Advertisement
Pioneering for You
Wilo-DrainLift Con
de Einbau- und Betriebsanleitung
en Installation and operating instructions
fr
Notice de montage et de mise en service
nl
Inbouw- en bedieningsvoorschriften
it
Istruzioni di montaggio, uso e manutenzione
2 528 581-Ed.04 / 2015-06-Wilo
da Monterings- og driftsvejledning
cs Návod k montáži a obsluze
ru Инструкция по монтажу и эксплуатации
pl Instrukcja montażu i obsługi
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wilo Wilo-DrainLift Con
Summary of Contents for Wilo Wilo-DrainLift Con
- Page 1 Monterings- og driftsvejledning en Installation and operating instructions cs Návod k montáži a obsluze Notice de montage et de mise en service ru Инструкция по монтажу и эксплуатации pl Instrukcja montażu i obsługi Inbouw- en bedieningsvoorschriften Istruzioni di montaggio, uso e manutenzione 2 528 581-Ed.04 / 2015-06-Wilo...
- Page 3 Fig. 1: Fig. 2:...
- Page 4 Fig. 3: Fig. 4: = 55 mm min. Fig. 5a: Fig. 5b:...
-
Page 5: About This Document
2.1 Indication of instructions in the operating instructions Symbols: General danger symbol Danger due to electrical voltage NOTE WILO SE 06/2015... -
Page 6: Signal Words
Work on the product/unit should only be carried out when it has been brought to a standstill. It is mandatory that the procedure described in the installation and operating instructions for shutting down the product/unit be complied with. Installation and operating instructions Wilo-DrainLift Con... -
Page 7: Improper Use
The condensate lifting unit is not designed to be used by persons (including children) with impaired physical, sensory or mental capabilities or who have insufficient experience or knowledge to operate the unit. Any such use is considered outside the intended use. WILO SE 06/2015... -
Page 8: Product Information
• Alarm cable with stripped cable ends (1 m) • Hose for pressure side (5 m) • Wall mounting material (drill template, screws, dowels) • Installation and operating instructions • Inlet adapter DN 40/30 Installation and operating instructions Wilo-DrainLift Con... -

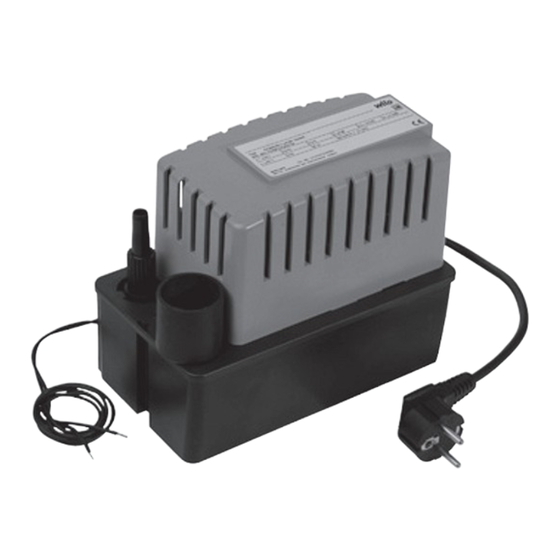

Page 9: Description And Function
English 5.4 Accessories Accessories must be ordered separately. • Wilo-DrainAlarm 2 (switchgear for acoustic alarm function) 6 Description and function 6.1 Description The condensate lifting unit serves as a component in installations for pumping accumulated condensate. The condensate lifting unit is used when the conden- sate cannot be disposed of via a natural fall or when the installation site of the system lies below the backflow level. -
Page 10: Installation And Electrical Connection
The alarm switch is built into the unit, and serves as an overflow protection measure. It is connected to the unit in which the condensate collects or to the Wilo-DrainAlarm 2 by the 1 m long alarm cable. The unit is fitted with a monoblock centrifugal pump. The unit motor has a ther- mal winding contact (WSK) which switches off at a temperature of 130 °C and... - Page 11 [e.g. VDE regulations]. • The mains current, the current type and the voltage of the mains connection must match the details on the name plate. • Provide a separate alarm switchgear (Wilo-DrainAlarm 2) in accordance with the nameplate data. WILO SE 06/2015...
-
Page 12: Mains Power Supply
(condensing boiler or cooling device) switches off in case of an overflow. Failure to ensure that the alarm contact is connected could result in you being held liable for the results of such a situation. Installation and operating instructions Wilo-DrainLift Con... -
Page 13: Functional Check
Damage to the connection cables should always be rectified by a qualified electrician only. NOTE! For safety reasons, it is not possible to disassemble the motor unit of the condensate lifting unit. WILO SE 06/2015... - Page 14 CAUTION! Risk of damage! Never use aggressive cleaning agents or sharp-edged tools, as these could damage the seal. Use only clean water to clean the seal of the non-return valve. • Perform a functional check (section 8.1). Installation and operating instructions Wilo-DrainLift Con...
-
Page 15: Faults, Causes And Remedies
Wilo after-sales service point or representative. 11 Spare parts Spare parts may be ordered via a local specialist and/or Wilo after-sales service. To avoid queries and incorrect orders, all data on the name plate should be sub- mitted with each order. - Page 16 If the above mentioned series are technically modified without our approval, this declaration shall no longer be applicable. Si les gammes mentionnées ci-dessus sont modifiées sans notre approbation, cette déclaration perdra sa validité. Dortmund, 19.12.2008 Erwin Prieß WILO SE Quality Manager Nortkirchenstraße 100 44263 Dortmund Germany Document: 2044125.2...
- Page 17 EN 55014-2, Elektromanyetik Uyumluluk 2004/108/EG EN 60335-1, 2004/108/EG Alçak gerilim direktifi 2006/95/EG EN 60335-2-41, EG–2006/95/EG EN 61000-3-2, K°smen kullan°lan standartlar: p ½ ½ ½ , EN 61000-3-3. Erwin Prieß WILO SE Quality Manager Nortkirchenstraße 100 44263 Dortmund Germany...
- Page 18 WILO Norge AS Australia 2ILFLQD &RPHUFLDO :,/2 ,EžULFD 6$ Jakarta Timur, 13950 0975 Oslo WILO Australia Pty Limited (GLILFLR 6LPRQD $SWR $OFDO– GH +HQDUHV T +62 21 7247676 T +47 22 804570 Murrarrie, Queensland, 6LERQH\ /D +DEDQD &XED...
- Page 19 WILO SE Nortkirchenstraße 100 D-44263 Dortmund Germany T +49(0)231 4102-0 F +49(0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
