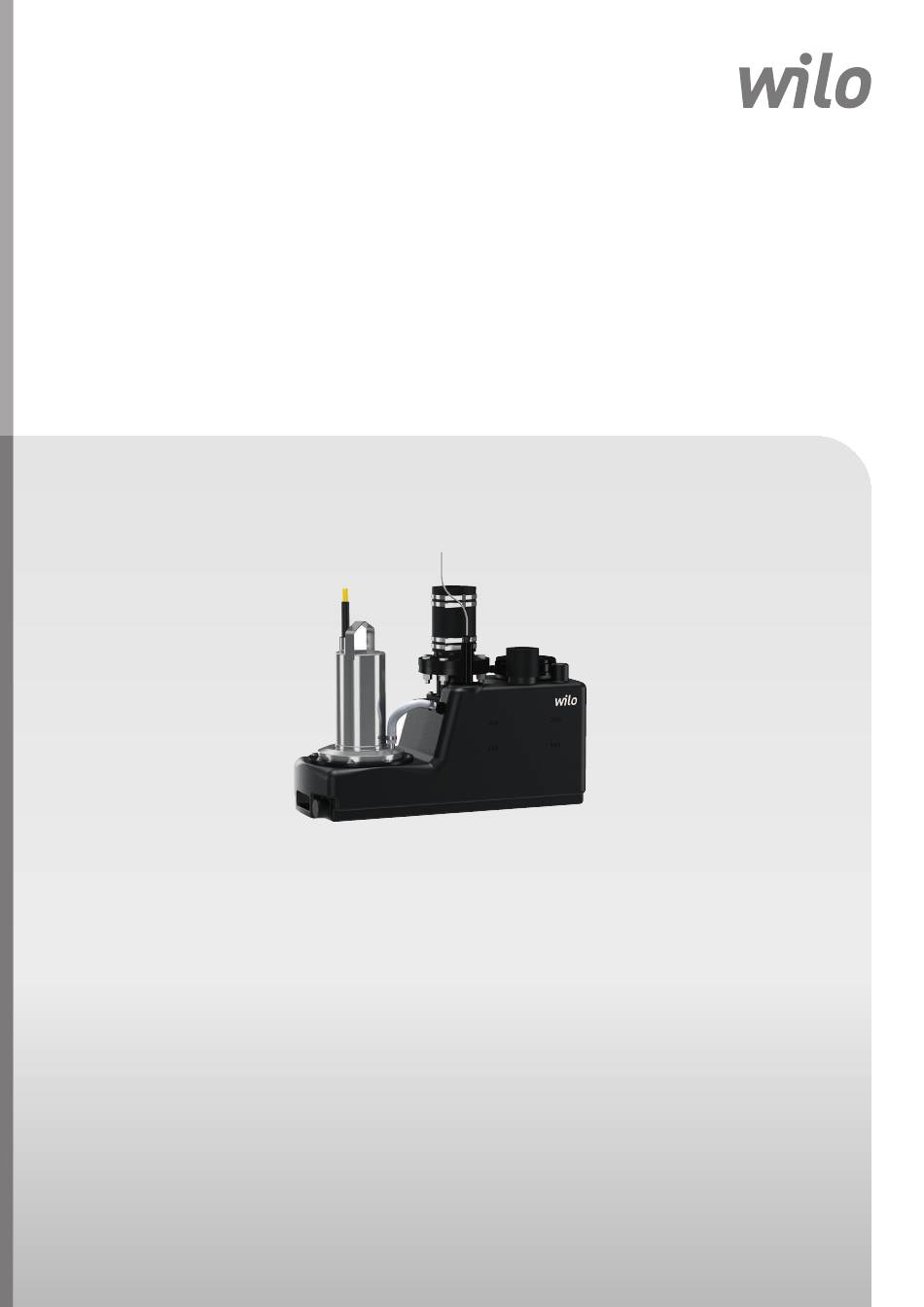

- Page 1 Pioneering for You DrainLift S en Installation and operating instructions · 2544878 • Ed.02/2017-06...
-
Page 3: Table Of Contents
Table of contents 1 General information ................................. 5 About these instructions .................................... 5 Copyright .......................................... 5 Subject to change ...................................... 5 Warranty.......................................... 5 2 Safety ...................................... 5 Identification of safety instructions................................ 5 Personnel qualifications.................................... 7 Electrical work ........................................ 7 Monitoring devices ...................................... 7 Pumping fluids that are hazardous to health.............................. 7 Explosive atmosphere in the collection reservoir ............................ 7 Transport.......................................... 8 Installing/dismantling...................................... 8... - Page 4 10 Maintenance and repair................................ 24 10.1 Personnel qualifications.................................... 25 11 Spare parts.................................... 25 12 Disposal.................................... 25 12.1 Protective clothing ...................................... 25 12.2 Information on the collection of used electrical and electronic products.................... 25 13 Appendix.................................... 25 13.1 Electrical connection diagram.................................. 25 WILO SE 2017-06...
-
Page 5: General Information
Warranty The specifications in the current “General Terms and Conditions” apply to the warranty and the warranty period. These can be found at www.wilo.com/legal Any deviations must be contractually agreed and shall then be given priority. Claim to warranty... - Page 6 Danger of explosion Warning of hot surfaces Personal protective equipment: Wear a safety helmet Personal protective equipment: Wear foot protection Personal protective equipment: Wear hand protection Personal protective equipment: Wear mouth protection Personal protective equipment: Wear safety goggles WILO SE 2017-06...
-
Page 7: Personnel Qualifications
Safety Autonomous work prohibited! A second person must be present. Transport by two persons Useful information Personnel qualifications Personnel must: ▪ Be instructed in the locally applicable accident prevention regulations. ▪ Have read and understood the installation and operating instructions. Personnel must have the following qualifications: ▪... -
Page 8: Transport
▪ Eliminate risk from electrical current. Children and persons below 16 years or with reduced physical, sensory or mental capa- cities or limited experience are prohibited from handling the device! A technician must supervise persons below 18 years! Application/use WILO SE 2017-06... -
Page 9: Intended Use
Product description ▪ For the backflow resistant drainage of discharge points for buildings below the back- Intended use flow level ▪ Installation inside buildings (according to EN 12056 und DIN 1986‑100) ▪ Pumping sewage with and without faeces (according to EN 12050-1) out of the do- mestic area in accordance with EN 12056-1 A grease trap must be installed for pumping greasy sewage! Application limits... -
Page 10: Monitoring Devices
When the water level reaches the switch-on level, the pump is switched on by the integrated level control and the collected sewage is pumped into the connected pressure pipe. When the switch-off level is reached, the pump is deac- tivated after the set follow-up time. WILO SE 2017-06... -
Page 11: Operating Modes
EN 60034-1! Operation with frequency con- Operation on the frequency converter is not permitted. verter Type key Example: Wilo-DrainLift S 1/6M RV Sewage lifting unit DrainLift Size Single-pump system Maximum delivery head in m at Q = 0 Mains connection version: M = 1~230 V, 50 Hz... -
Page 12: Scope Of Delivery
▪ Horn 230 V, 50 Hz ▪ Flash light 230 V, 50 Hz ▪ Signal lamp 230 V, 50 Hz ▪ SmartHome radio transmitter for networking with the Wilo wibutler Transportation and storage Delivery After receiving the shipment, this must be checked immediately for defects (damage, completeness). -
Page 13: Storage
Installation and electrical connection Storage DANGER Danger due to fluids hazardous to health! Disinfect the lifting unit! If the lifting unit is used to pump fluids that are hazardous to health, decontaminate the lifting unit after dismantling and before carrying out any other work! There is a risk of fatal injury! Observe the specifications in the work regulations! The operator must make sure that the personnel have received and read the work regulations! CAUTION... -
Page 14: Installation
Danger of (serious) injuries during work. If lifting equipment is used, wear a safety helmet! Additionally comply with the following points if the lifting unit is installed in a pump chamber: ▪ Take immediate countermeasures if there is a build-up of toxic or suffocating gases! WILO SE 2017-06... - Page 15 Installation and electrical connection ▪ Note the diagonal dimension of the lifting unit. ▪ It must be possible to attach lifting equipment safely. The storage place and the oper- ating space/installation site must be accessible with the lifting equipment without any difficulty.
- Page 16 - If the distance is too small, the discharge pipe or the flange connector must be shortened. - If the distance is too large, the hose section supplied cannot be used. A suit- able connecting sleeve must be provided by the customer! 5. Push the pipe clamps over the flange connector. WILO SE 2017-06...
- Page 17 Installation and electrical connection 6. Align the flexible connecting hose centrally between the flange connector and the discharge pipe. 7. Attach the connecting hose on each flange connector and the pressure pipe with the two pipe clamps. Max. tightening torque: 5 Nm! ▶...
- Page 18 ▪ Avoid an inlet surge and air intake in the collection reservoir. Route the inlet properly. CAUTION! Inlet surges or air intake in the collection reservoir can cause malfunc- Fig. 6: Inlet connection with seal tions of the lifting unit! ▪ Ensure all connections are completely tight! ▪ Install gate valve in the inlet! WILO SE 2017-06...
-
Page 19: Optional: Installation Of A Diaphragm Hand Pump
Installation and electrical connection Inlet connecting piece Hole saw Inlet pipe Hose section Pipe clamp ‡ Inlet pipe installed properly to collection reservoir and according to consulting doc- uments. ‡ Installation materials available: 1x hole saw (size suitable for connection port) 1x hose section 2x pipe clamps 1. -
Page 20: Commissioning
When the plug is inserted, the switchgear starts in the last operating mode that was set. In order to be familiar with the operation of the switchgear, the installation and operating instructions of the switchgear must be read before inserting the plug. WILO SE 2017-06... -
Page 21: Application Limits
Operation The lifting unit is operated via the fitted switchgear. The switchgear is preset for oper- ating the lifting unit. For information on operating the switchgear and the individual displays, the installation and operating instructions for the switchgear must be ob- served. -
Page 22: Manual Operation
1. Close the gate valve in the inlet. 2. Close the gate valve in the pressure pipe. 3. Install the diaphragm hand pump on the lifting unit and the pressure pipe. NOTICE! For connecting the diaphragm hand pump, the manufacturer’s instruc- tions must be observed! WILO SE 2017-06... -
Page 23: Decommissioning/Dismantling
Decommissioning/dismantling 4. Pump sewage into the pressure pipe using the diaphragm hand pump. Decommissioning/dismantling Personnel qualifications ▪ Operation/control: Operating personnel must be instructed in the functioning of the complete system. ▪ Installation-/dismantling: The technician must be trained in the use of the necessary tools and fixation materials for the relevant construction site. -
Page 24: Clean And Disinfect
1. Spray the lifting unit with clean water from top to bottom. 2. Open the collection reservoir and spray the collection reservoir and all connection ports on the inside. 3. Flush all dirt residue onto the floor of the channel. 4. Allow the lifting unit to dry out. WILO SE 2017-06... -
Page 25: Maintenance And Repair
▪ Observe the locally applicable regulations! Please consult your local municipality, the nearest waste disposal site, or the dealer who sold the product to you for information on proper disposal. For further information on recycling, go to www.wilo-recycling.com. Appendix 13.1... - Page 26 1 2 3 4 5 6 7 Seconds 7 8 9 1 2 3 4 5 6 3 4 5 3~400V 50/60Hz L1 L2 L3 PE ON / OFF 1~230V/50Hz SR 801 1~230V 50/60Hz 1~230V/50Hz DrainAlarm Fig. 9: Connection diagram WILO SE 2017-06...
- Page 28 WILO SE Nortkirchenstr. 100 44263 Dortmund Germany T +49 (0)231 4102-0 T +49 (0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
