Dansensor MAP Mix Provectus
®

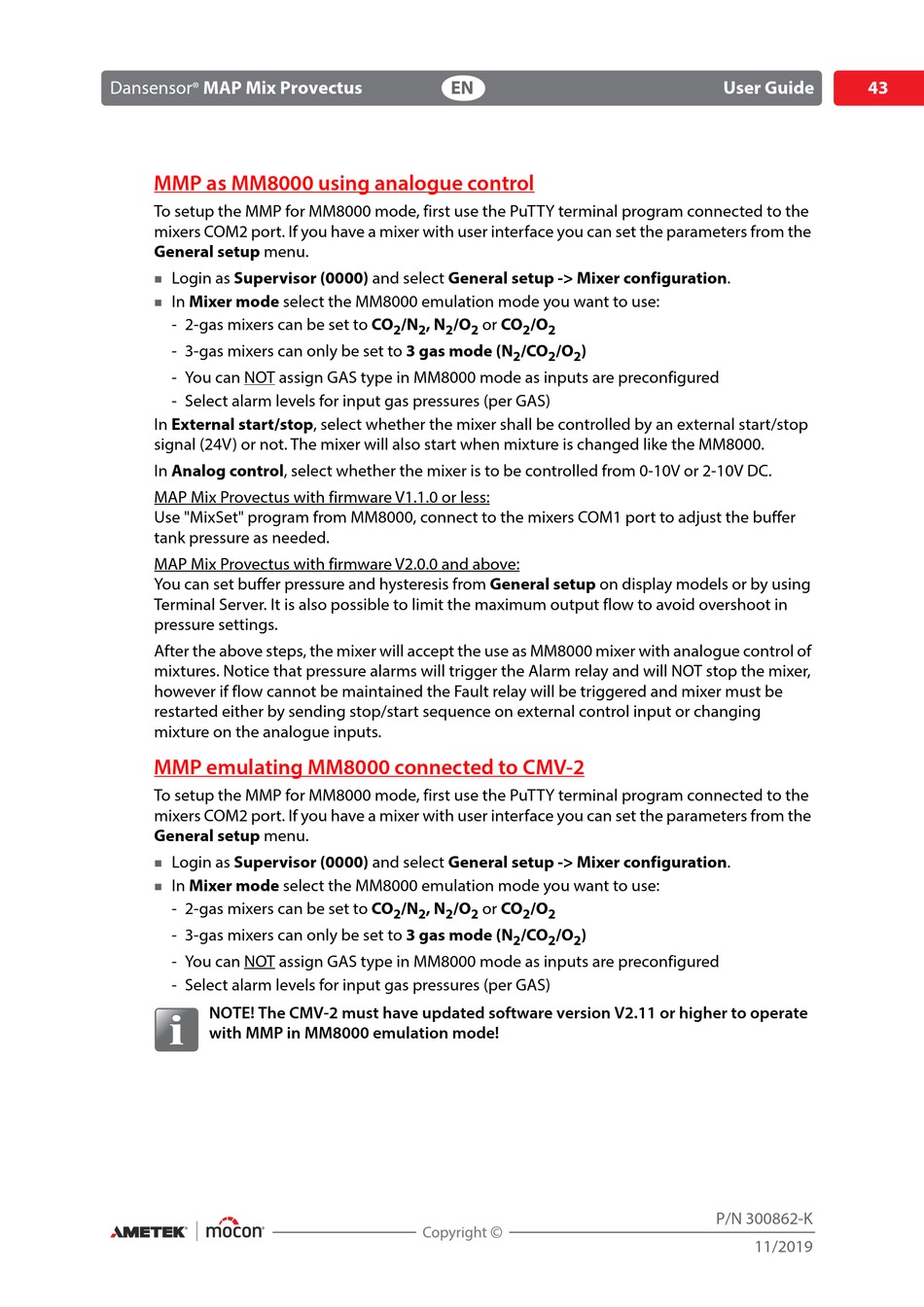

MMP as MM8000 using analogue control

To setup the MMP for MM8000 mode, first use the PuTTY terminal program connected to the
mixers COM2 port. If you have a mixer with user interface you can set the parameters from the
General setup menu.
Login as Supervisor (0000) and select General setup -> Mixer configuration.

In Mixer mode select the MM8000 emulation mode you want to use:

- 2-gas mixers can be set to CO
- 3-gas mixers can only be set to 3 gas mode (N
- You can NOT assign GAS type in MM8000 mode as inputs are preconfigured
- Select alarm levels for input gas pressures (per GAS)
In External start/stop, select whether the mixer shall be controlled by an external start/stop
signal (24V) or not. The mixer will also start when mixture is changed like the MM8000.
In Analog control, select whether the mixer is to be controlled from 0-10V or 2-10V DC.
MAP Mix Provectus with firmware V1.1.0 or less:
Use "MixSet" program from MM8000, connect to the mixers COM1 port to adjust the buffer
tank pressure as needed.
MAP Mix Provectus with firmware V2.0.0 and above:
You can set buffer pressure and hysteresis from General setup on display models or by using
Terminal Server. It is also possible to limit the maximum output flow to avoid overshoot in
pressure settings.
After the above steps, the mixer will accept the use as MM8000 mixer with analogue control of
mixtures. Notice that pressure alarms will trigger the Alarm relay and will NOT stop the mixer,
however if flow cannot be maintained the Fault relay will be triggered and mixer must be
restarted either by sending stop/start sequence on external control input or changing
mixture on the analogue inputs.

MMP emulating MM8000 connected to CMV-2

To setup the MMP for MM8000 mode, first use the PuTTY terminal program connected to the
mixers COM2 port. If you have a mixer with user interface you can set the parameters from the
General setup menu.
Login as Supervisor (0000) and select General setup -> Mixer configuration.

In Mixer mode select the MM8000 emulation mode you want to use:

- 2-gas mixers can be set to CO
- 3-gas mixers can only be set to 3 gas mode (N
- You can NOT assign GAS type in MM8000 mode as inputs are preconfigured
- Select alarm levels for input gas pressures (per GAS)
NOTE! The CMV-2 must have updated software version V2.11 or higher to operate
with MMP in MM8000 emulation mode!
EN
/N , N /O or CO /O
2 2 2 2 2 2
/CO /O
2 2
/N , N /O or CO /O
2 2 2 2 2 2
/CO /O
2 2
User Guide
)
2
)
2
P/N 300862-K
43
11/2019
