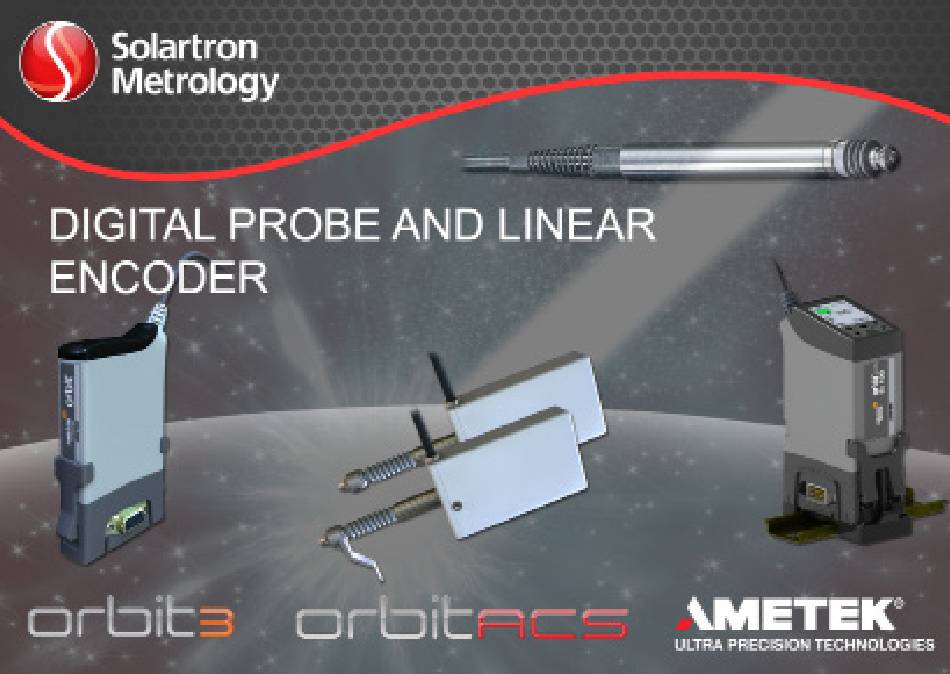

Digital probe and linear encoder

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solartron Metrology ORBIT3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ametek Solartron Metrology ORBIT3

  • Page 2: Table Of Contents

    Connector Operation Notes ... . . 11 Environmental Consideration ....12 Return Of Goods Solartron Sales Offices For drawings please contact sales.solartronmetrology@ametek.com 1.0: Index Part No. 503094 Issue 7...
  • Page 3: Safety Summary

    2.0: Safety Summary Terms in this Handbook WARNINGS: WARNING statements identify conditions or Do not operate in an explosive atmosphere practices that could result in personal injury To avoid explosion, do not operate this or loss of life. equipment in an explosive atmosphere. CAUTION statements identify conditions or Air Supply practices that could result in damage to the...
  • Page 4: Orbit® Acs

    3.0: Introduction Digital Probe, Linear Encoder and Orbit® ACS The Digital Probe is available as two product types: Orbit®3 Module and the Orbit® ACS Module. The Linear Encoder is available only as an Orbit®3 Module. The probe and encoder are factory calibrated using a laser interferometer, the calibration data is then stored in the Orbit Module.
  • Page 5: Probe Mounting Information

    4.0: Probe Mounting Information Diagrams showing probe clamping method in order of preference. In all cases when clamping over the bearing area it is practical to tighten clamp screws gradually whilst actuating probe tip to the point where the smooth motion degrades then back off screw until motion returns to smooth - ensure probe is secure Collet 206333 Set screw...
  • Page 6: Pneumatic Probe

    4.0: Probe Mounting Information 4.2 Tip Note: 1) Care should be taken when a part is entered sideways under a probe, especially when using a spring push. The maximum contact angle should be limited to 45º to avoid applying excessive sideloads. 2) When removing or replacing tips on digital probes, displace shaft to the fully in position before applying torque.
  • Page 7 4.0: Probe Mounting Information Pneumatic Probes Type DJ/x/P are designed to leak a small amount of air via a vent hole this must be kept clear of obstruction. The gaiter provides protection against ingress of dirt only. The probe will remain operational with a damaged gaiter, but the integrity of the probe will be compromised.
  • Page 8: Handling & Maintenance

    5.0: Handling & Maintenance Replacing the probe tip - LE 1. Slide back gaiter (fitted to IP65 and pneumatic versions only) to reveal the hole in the shaft. 2. Insert locking tool (supplied) in the hole. 3. Unscrew tip while holding locking tool to prevent any damage to the read head.
  • Page 9: W-Series Application Notes

    6.0: W-Series Application Notes When applying these probes the following pertinent points need to be observed in order to main- tain the specification and to maintain continued reliable operation: 1) Air supply must be clean and dry, ie. Max 60% RH and filtered to particle size of 0.1 mm. 2) The operating environment must be clean and dry.
  • Page 10: Linear Encoder Operation

    7.0: Linear Encoder Operation Pneumatic Operation Finger Lift Snaps over probe tip A Pneumatic nozzle enabling tip to be lifted is fitted as standard consistently and without to LE/12/P & LE/25/P. transferring heat to the By applying air shaft. between 0.5 & 0.8 bar, the measuring tip will extend to meet Pneumatic Supply...
  • Page 11 8.0: Orbit3 and Orbit ACS Digital Probe with Connector Operation Notes Connect the probe connector to the module until it clicks into place. When fitting a probe to a module with power already on, cycling the module’s power is required for it to read the new probe’s calibration data.
  • Page 12: Connector Operation Notes

    8.0: Orbit3 and Orbit ACS Digital Probe with Connector Operation Notes If an incompatible probe (for example a DP2 probe is connected to a DP10 module) is detected: • Orbit3 DPs – the red LED will be lit to indicate a hardware fault. An error code is set in the module.
  • Page 13: Environmental Consideration

    9.0: Environmental Consideration Probes are best used with gaiters for protection, this prevents most ingress of fluids and con- tamination. For probes without gaiters then the working environment must be clean and dry. It is the user’s responsibility to ensure that the application is suitable for the probe type selected. It is not advisable to use the probe close to processes that generate swarf and contamination without considering additional protection, where possible, of the gaiter and cable.
