54 User Guide

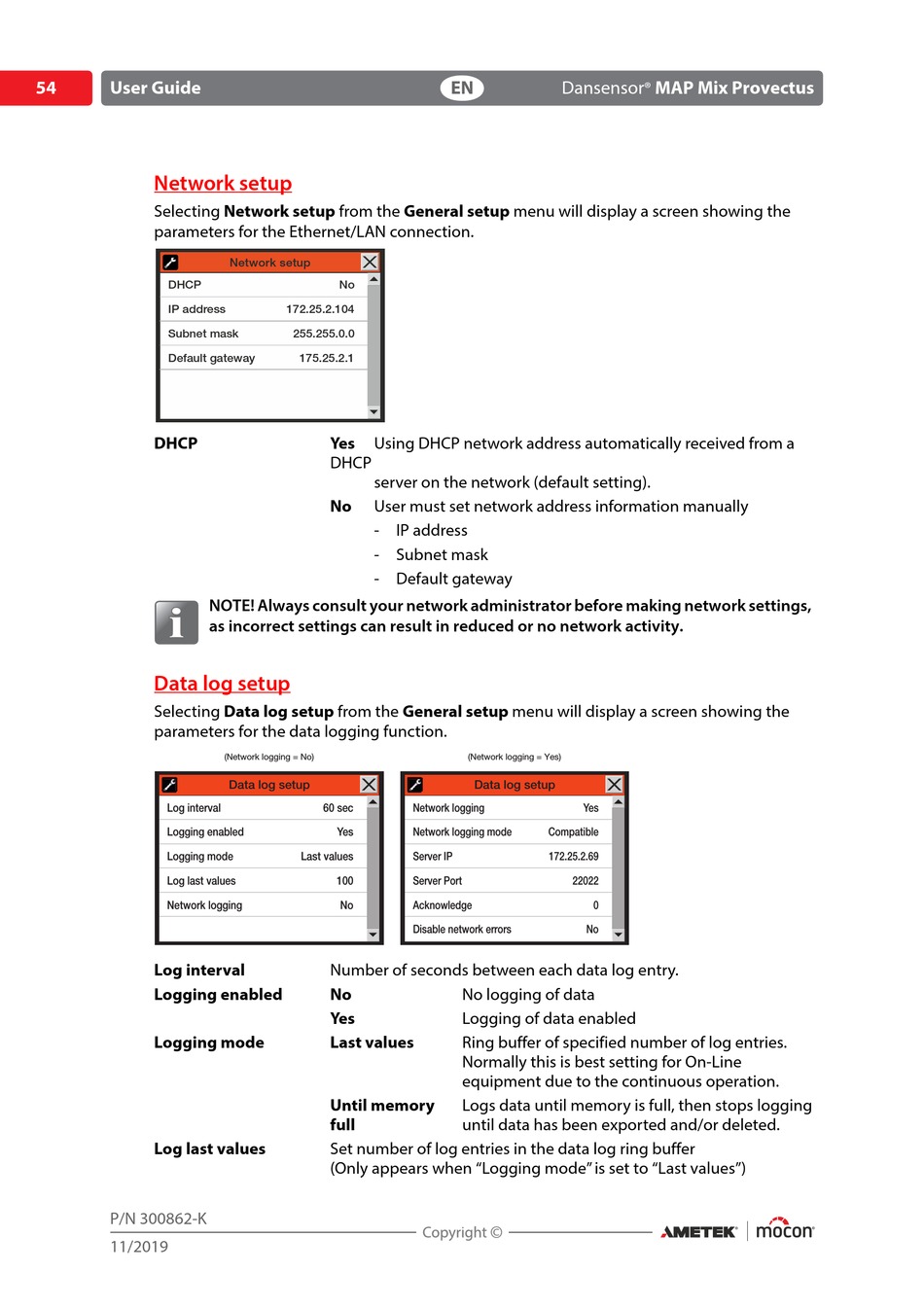

Network setup

Selecting Network setup from the General setup menu will display a screen showing the
parameters for the Ethernet/LAN connection.
DHCP
IP address
Subnet mask
Default gateway
DHCP
NOTE! Always consult your network administrator before making network settings,
as incorrect settings can result in reduced or no network activity.

Data log setup

Selecting Data log setup from the General setup menu will display a screen showing the
parameters for the data logging function.
Log interval
Logging enabled
Logging mode
Log last values
P/N 300862-K
11/2019
Network setup
No
172.25.2.104
255.255.0.0
175.25.2.1
Yes Using DHCP network address automatically received from a
DHCP
server on the network (default setting).
No User must set network address information manually
- IP address
- Subnet mask
- Default gateway
Number of seconds between each data log entry.
No
Yes
Last values
Until memory
full
Set number of log entries in the data log ring buffer
(Only appears when "Logging mode" is set to "Last values")
EN Dansensor
No logging of data
Logging of data enabled
Ring buffer of specified number of log entries.
Normally this is best setting for On-Line
equipment due to the continuous operation.
Logs data until memory is full, then stops logging
until data has been exported and/or deleted.
MAP Mix Provectus
®
