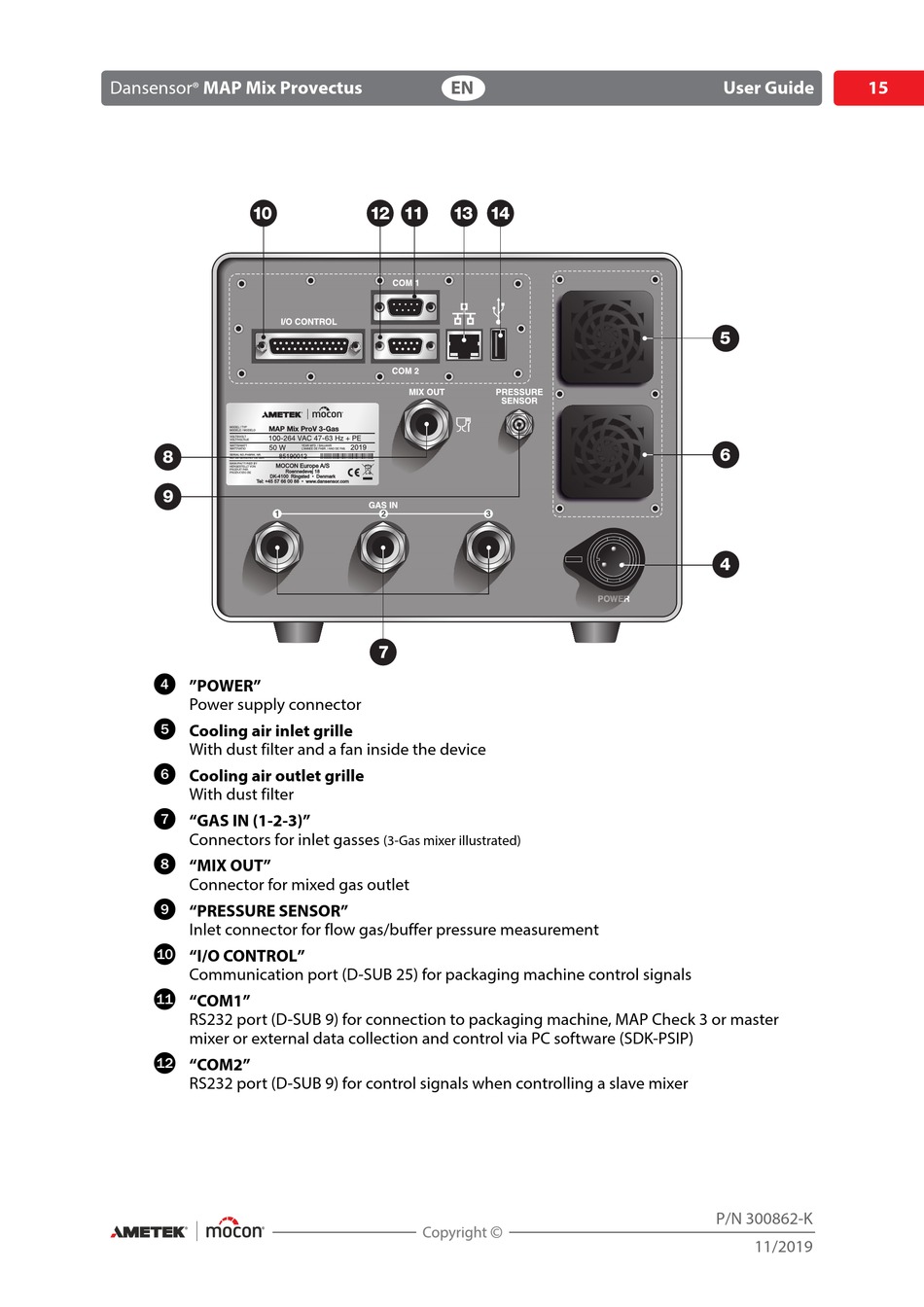

Dansensor MAP Mix Provectus
®

"POWER"
Power supply connector

Cooling air inlet grille
With dust filter and a fan inside the device

Cooling air outlet grille
With dust filter

"GAS IN (1-2-3)"
Connectors for inlet gasses

"MIX OUT"
Connector for mixed gas outlet

"PRESSURE SENSOR"
Inlet connector for flow gas/buffer pressure measurement

"I/O CONTROL"
Communication port (D-SUB 25) for packaging machine control signals

"COM1"
RS232 port (D-SUB 9) for connection to packaging machine, MAP Check 3 or master
mixer or external data collection and control via PC software (SDK-PSIP)

"COM2"
RS232 port (D-SUB 9) for control signals when controlling a slave mixer
EN
(3-Gas mixer illustrated)
