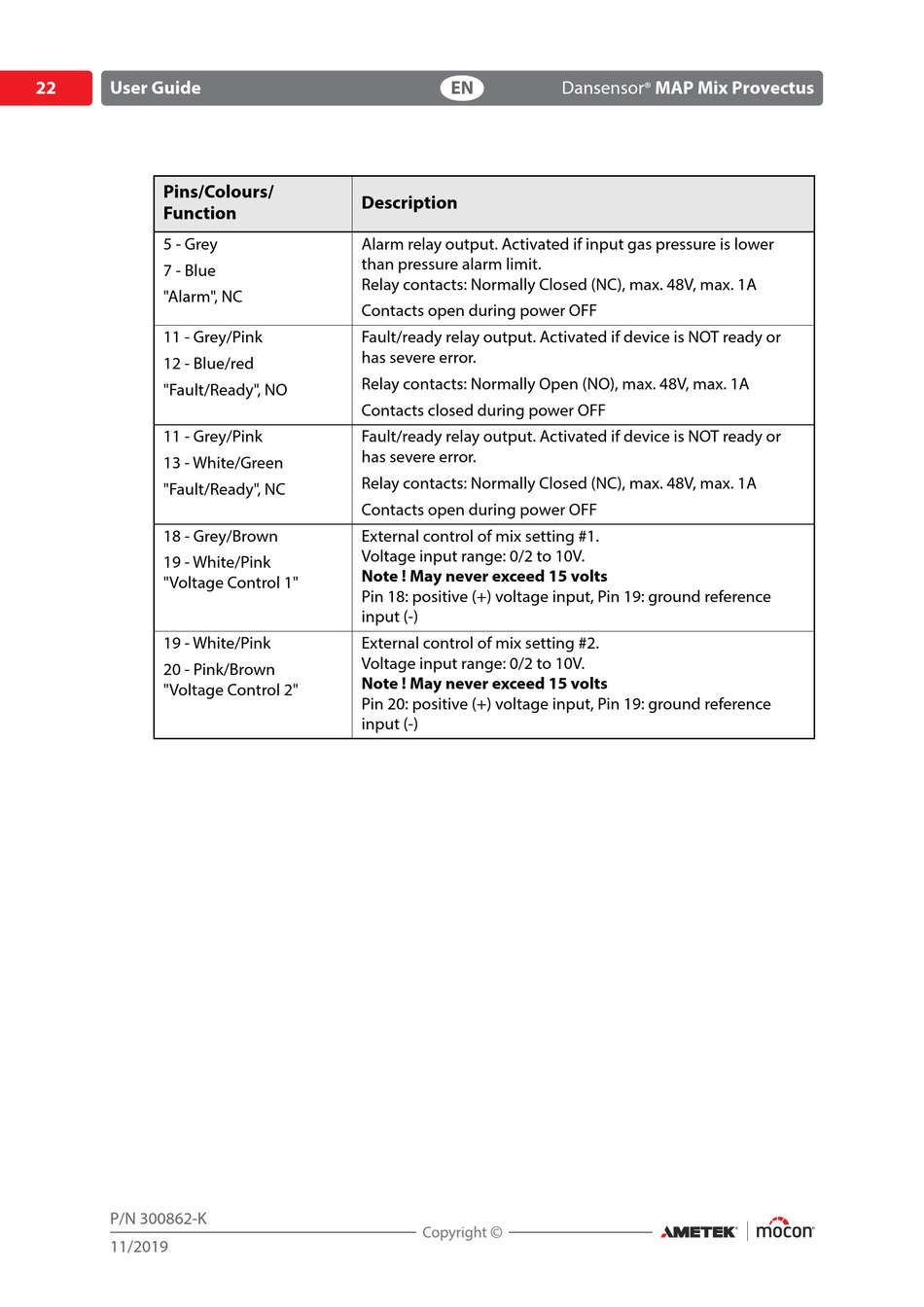

Pins/Colours/
Function
5 - Grey
7 - Blue
"Alarm", NC
11 - Grey/Pink
12 - Blue/red
"Fault/Ready", NO
11 - Grey/Pink
13 - White/Green
"Fault/Ready", NC
18 - Grey/Brown
19 - White/Pink
"Voltage Control 1"
19 - White/Pink
20 - Pink/Brown
"Voltage Control 2"
P/N 300862-K
11/2019
EN
Description
Alarm relay output. Activated if input gas pressure is lower
than pressure alarm limit.
Relay contacts: Normally Closed (NC), max. 48V, max. 1A
Contacts open during power OFF
Fault/ready relay output. Activated if device is NOT ready or
has severe error.
Relay contacts: Normally Open (NO), max. 48V, max. 1A
Contacts closed during power OFF
Fault/ready relay output. Activated if device is NOT ready or
has severe error.
Relay contacts: Normally Closed (NC), max. 48V, max. 1A
Contacts open during power OFF
External control of mix setting #1.
Voltage input range: 0/2 to 10V.
Note ! May never exceed 15 volts
Pin 18: positive (+) voltage input, Pin 19: ground reference
input (-)
External control of mix setting #2.
Voltage input range: 0/2 to 10V.
Note ! May never exceed 15 volts
Pin 20: positive (+) voltage input, Pin 19: ground reference
input (-)
