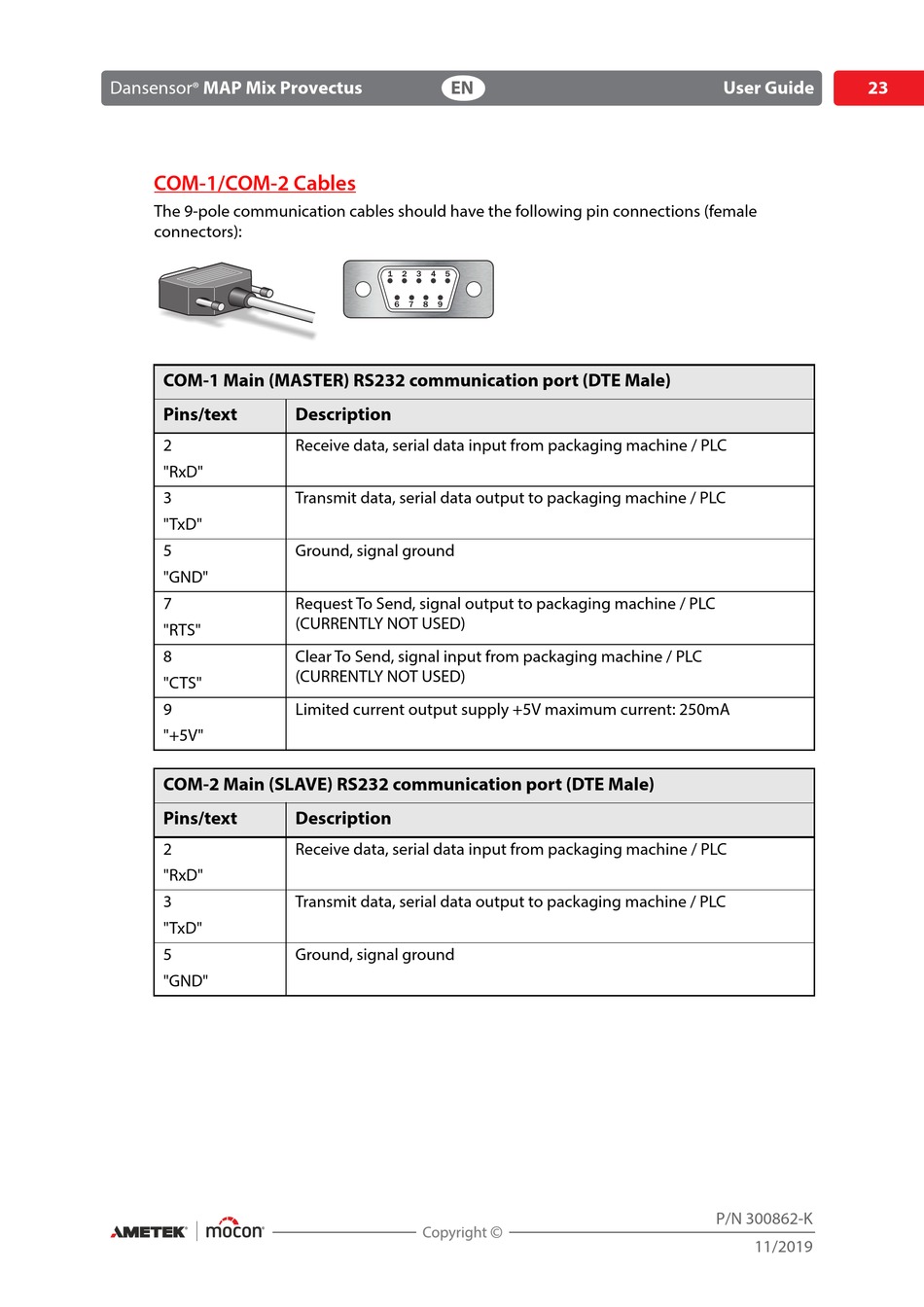

COM-1/COM-2 Cables
The 9-pole communication cables should have the following pin connections (female
connectors):
COM-1 Main (MASTER) RS232 communication port (DTE Male)
Pins/text
2
"RxD"
3
"TxD"
5
"GND"
7
"RTS"
8
"CTS"
9
"+5V"
COM-2 Main (SLAVE) RS232 communication port (DTE Male)
Pins/text
2
"RxD"
3
"TxD"
5
"GND"
EN
1
2
4
5
6
7
8
9
Description
Receive data, serial data input from packaging machine / PLC
Transmit data, serial data output to packaging machine / PLC
Ground, signal ground
Request To Send, signal output to packaging machine / PLC
(CURRENTLY NOT USED)
Clear To Send, signal input from packaging machine / PLC
(CURRENTLY NOT USED)
Limited current output supply +5V maximum current: 250mA
Description
Receive data, serial data input from packaging machine / PLC
Transmit data, serial data output to packaging machine / PLC
Ground, signal ground
User Guide
23
P/N 300862-K
11/2019
