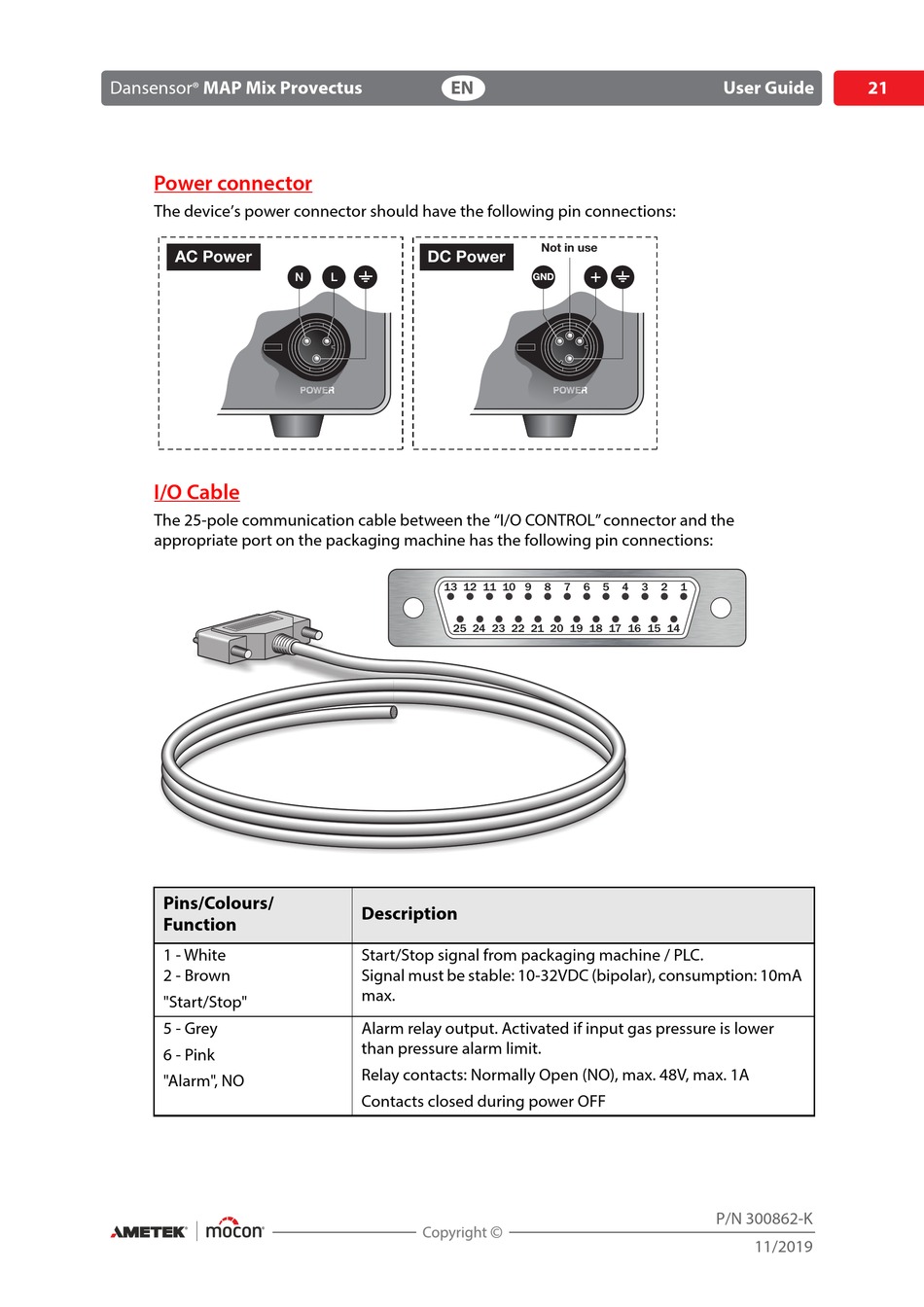

Power connector

The device's power connector should have the following pin connections:
AC Power

I/O Cable

The 25-pole communication cable between the "I/O CONTROL" connector and the
appropriate port on the packaging machine has the following pin connections:
Pins/Colours/
Function
1 - White
2 - Brown
"Start/Stop"
5 - Grey
6 - Pink
"Alarm", NO
EN
DC Power
N L
1 12
25
Description
Start/Stop signal from packaging machine / PLC.
Signal must be stable: 10-32VDC (bipolar), consumption: 10mA
max.
Alarm relay output. Activated if input gas pressure is lower
than pressure alarm limit.
Relay contacts: Normally Open (NO), max. 48V, max. 1A
Contacts closed during power OFF
Not in use
GND
11 10 9 8 7 6 5 4
24 2 22 21 20 19 18 17 16 15
