28 User Guide

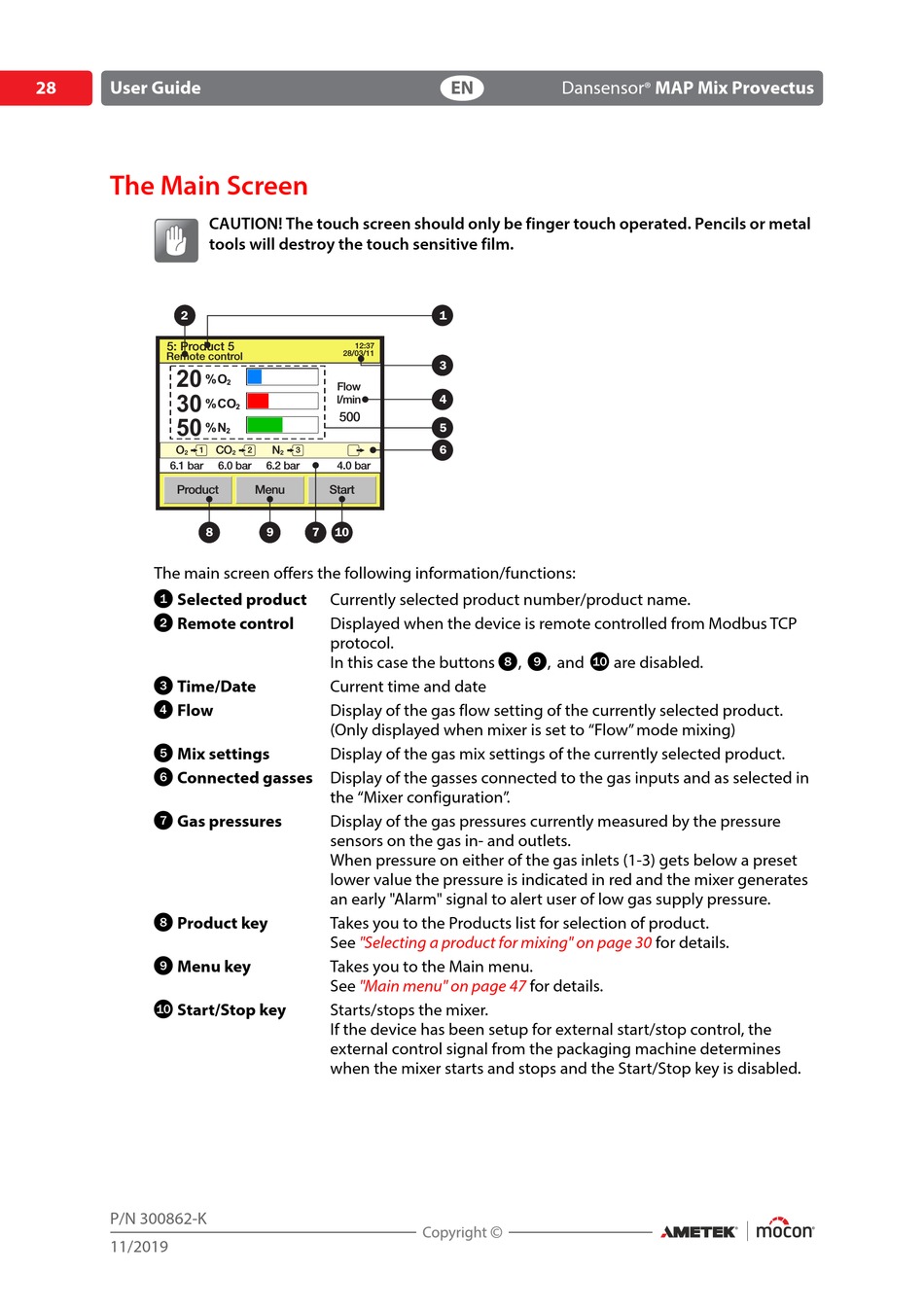

The Main Screen

CAUTION! The touch screen should only be finger touch operated. Pencils or metal
tools will destroy the touch sensitive film.
The main screen offers the following information/functions:

Selected product

Remote control

Time/Date

Flow

Mix settings

Connected gasses Display of the gasses connected to the gas inputs and as selected in

Gas pressures

Product key

Menu key

Start/Stop key
P/N 300862-K
11/2019
EN
Currently selected product number/product name.
Displayed when the device is remote controlled from Modbus TCP
protocol.

In this case the buttons
Current time and date
Display of the gas flow setting of the currently selected product.
(Only displayed when mixer is set to "Flow" mode mixing)
Display of the gas mix settings of the currently selected product.
the "Mixer configuration".
Display of the gas pressures currently measured by the pressure
sensors on the gas in- and outlets.
When pressure on either of the gas inlets (1-3) gets below a preset
lower value the pressure is indicated in red and the mixer generates
an early "Alarm" signal to alert user of low gas supply pressure.
Takes you to the Products list for selection of product.
See "Selecting a product for mixing" on page 30
Takes you to the Main menu.
See "Main menu" on page 47
Starts/stops the mixer.
If the device has been setup for external start/stop control, the
external control signal from the packaging machine determines
when the mixer starts and stops and the Start/Stop key is disabled.
Dansensor MAP Mix Provectus
®
  
, , and are disabled.
for details.
for details.
