NOTE: It is important that the two cir-
cuits are activated in the correct order!
The correct sequence of events is as
follows:
WING UP
1. Using the hydraulic control for the main
wing and tail, the tail section goes up
completely and comes to a stop.
2. Using the same hydraulic control, the
right and left wing raise together and
come to rest on the transport locks.
3. Using the hydraulic control for the flip-
over wings, the end sections flip over.

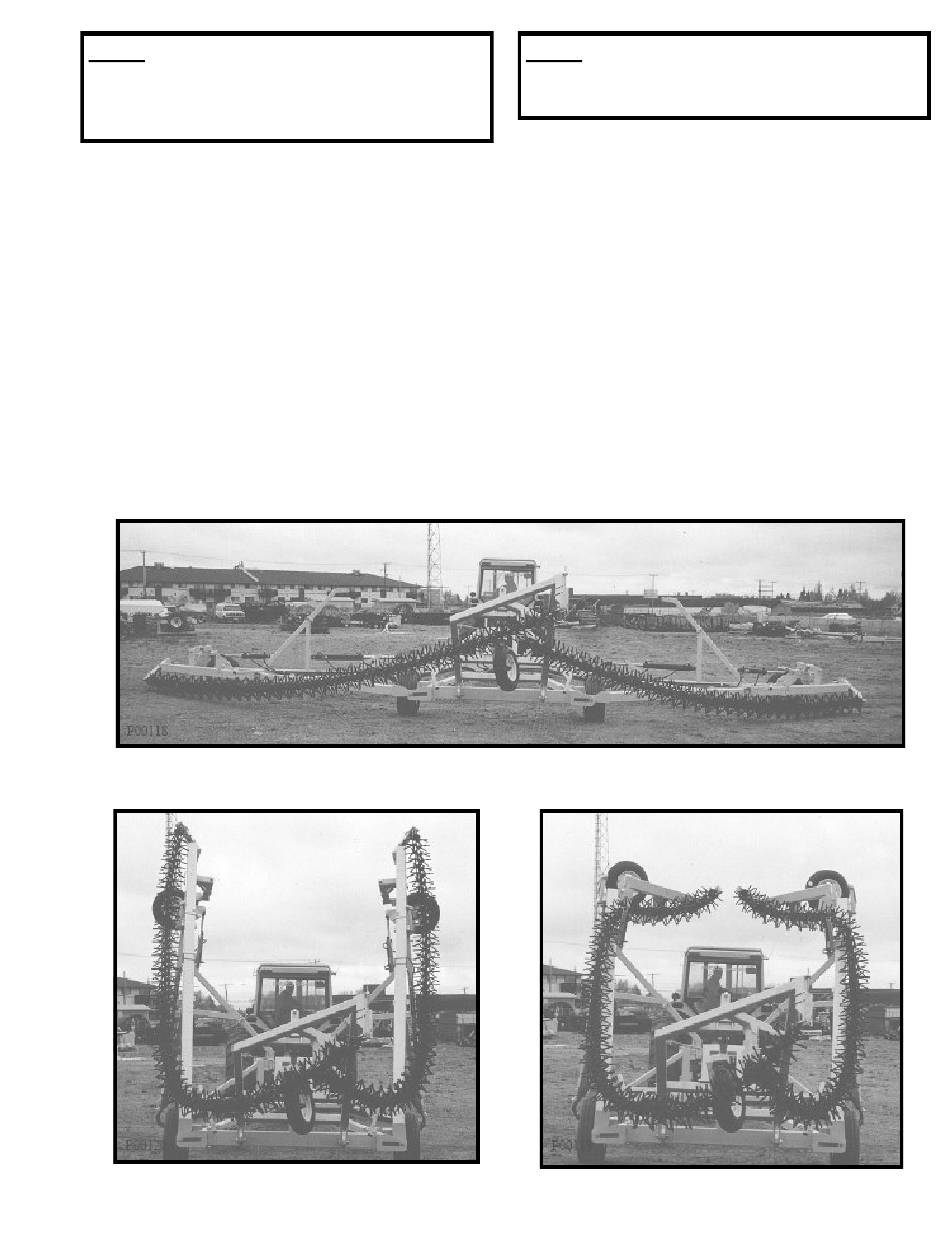

The photos below illustrate the folding/unfolding of the harrow wings. They are placed in
order, for folding up. Reverse the order for folding down.
Main Wings Go Up Together (Slowly)
45' Rotary Harrow
NOTE: The tooling chain should be
lying completely to the outside of the
machine.
WING DOWN
1. Using the hydraulic control for the flip-
over wings, the end section flip up.
2. Using the main wing/tail hydraulic control,
the right and left wings go down together.
3. Using the same hydraulic control, the tail
section goes down last. The sequencing
valve will allow the wings to go down first.
Tail Goes Up
Flip-Overs Fold in Together (Slowly)
