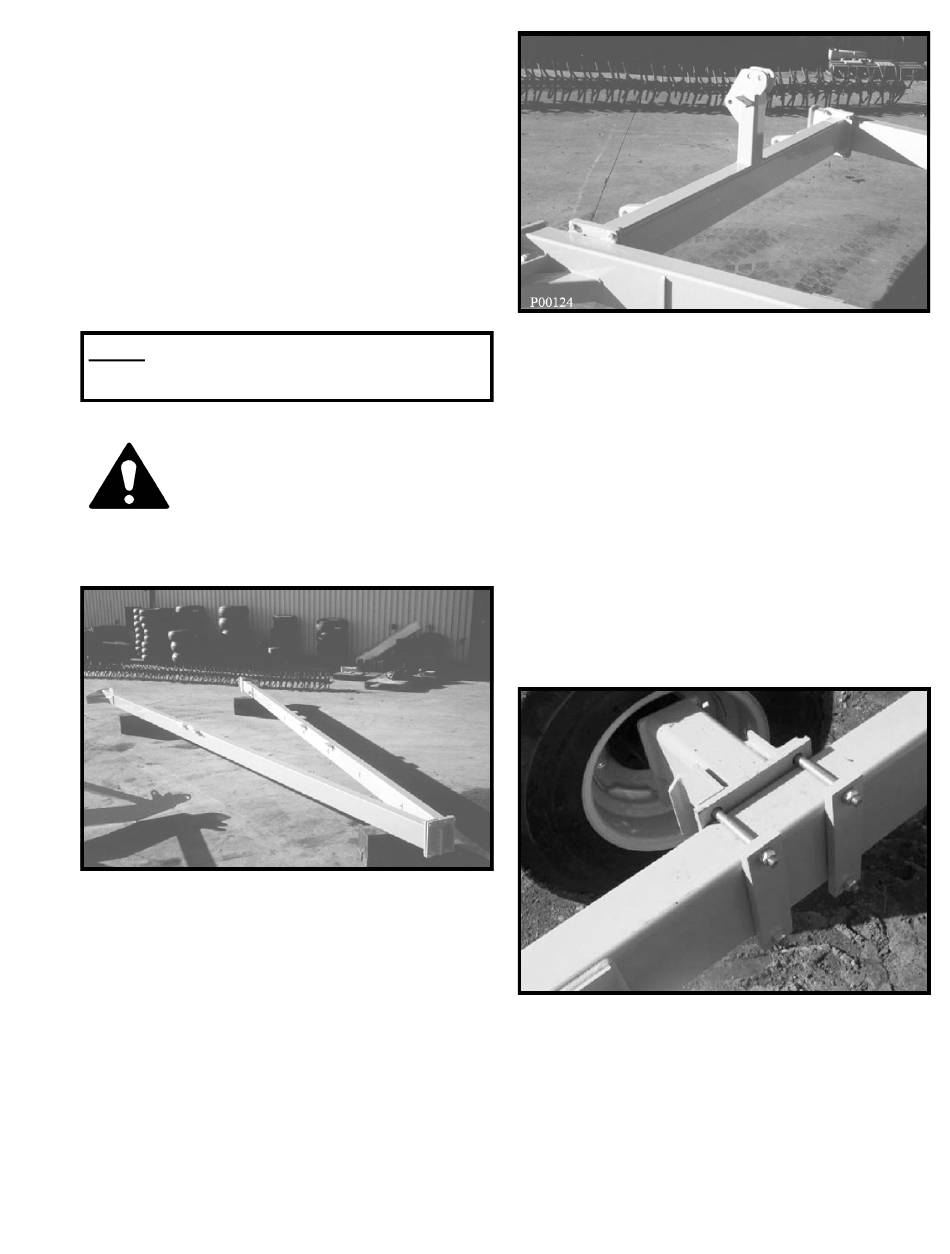

STEP 2
Place the right and left main frame (#1 & #2)
Onto wooden blocks supporting each end.
Place the blocks so that the front ends of the
main frames will be close together and the
rears will be separated by 7' - 3". Using 8
(eight) 5/8" x 2 1/4" bolts, and unitorque
nuts, attach the front hitch plate (#3) to the
main beams, connecting them together.
Leave nuts loose.
NOTE: Looking from the rear Item #2 is
on the LHS and Item #1 is on the RHS.
WARNING:
caution when assembling the
harrow. The harrow is made of
large heavy sections that could
injure or kill if dropped!
Installing the Left and Right
Main Frame Beams
STEP 3
Place the rear beam (#16) at the rear of the
harrow. Connect the right and left ends to
(#1 & #2) using 4 (four) 5/8" x 2" UNC bolts
and unitorque nuts per side.
12 (twelve) nuts from steps 2 and 3 to 100
ft lbs.
45' Rotary Harrow
Practice extreme
Torque the
11
Attaching the Rear Beam
STEP 4
Connect the right wheel mount (#23) to the
right main frame (#1) and the left wheel
mount (#24) to the left main frame (#2) using
4 (four) 3/4" x 7" G8 bolts and 4 (four) G8
unitorque nuts per side. Two main wheel-
backing plated per side are used to straddle
and clamp the wheel mounts to the main
frames. Use the locator tab welded to the
main frames to butt the backside of the
wheel mount to. Torque to 155 ft lbs.
Attaching the Right Wheel Mount
