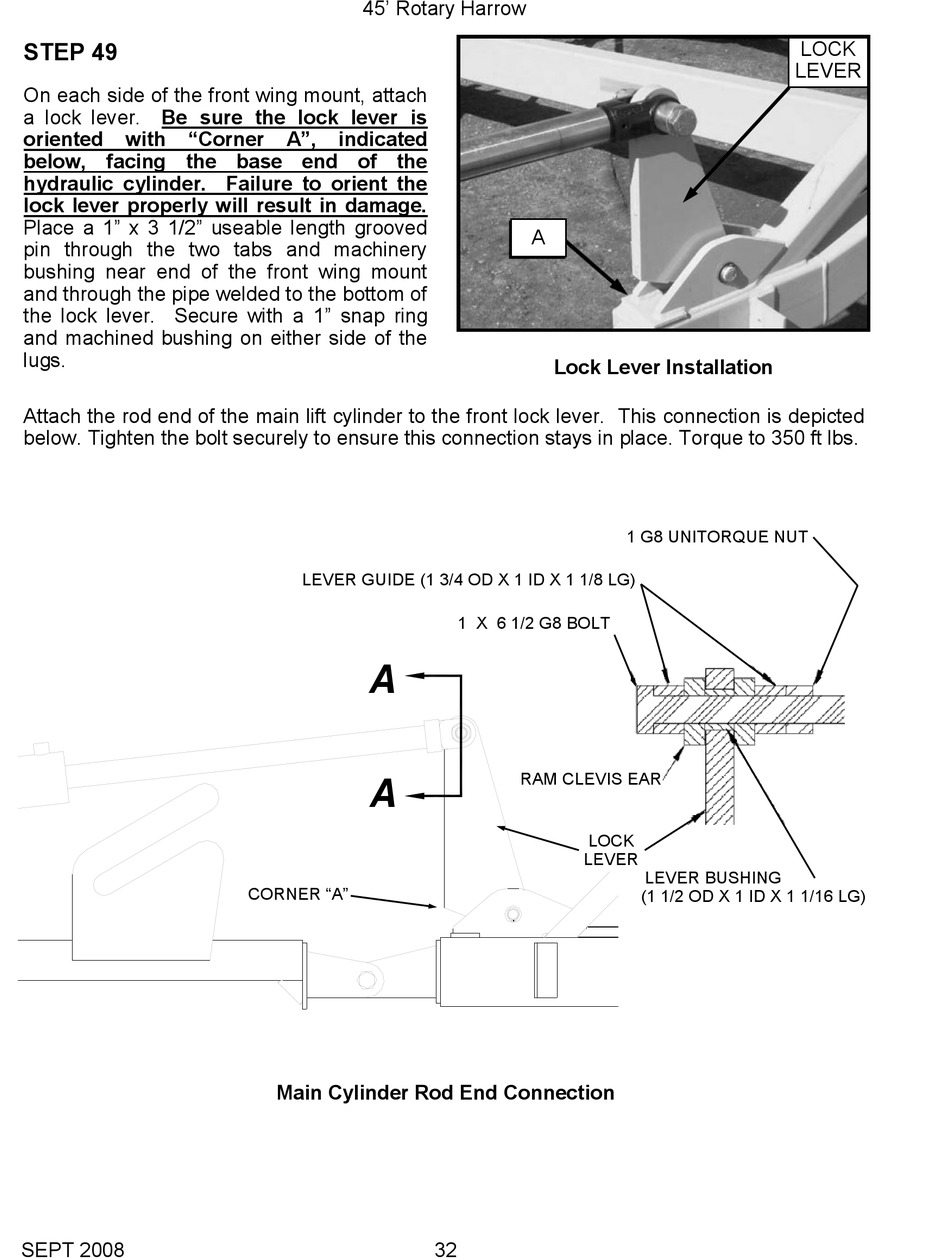

STEP 49
On each side of the front wing mount, attach
a lock lever. Be sure the lock lever is
oriented with "Corner
below, facing the base end of the
hydraulic cylinder. Failure to orient the
lock lever properly will result in damage.
Place a 1" x 3 1/2" useable length grooved
pin through the two tabs and machinery
bushing near end of the front wing mount
and through the pipe welded to the bottom of
the lock lever. Secure with a 1" snap ring
and machined bushing on either side of the
lugs.
Attach the rod end of the main lift cylinder to the front lock lever. This connection is depicted
below. Tighten the bolt securely to ensure this connection stays in place. Torque to 350 ft lbs.
SEPT 2008
45' Rotary Harrow
A", indicated
LEVER GUIDE (1 3/4 OD X 1 ID X 1 1/8 LG)


CORNER "A"
Main Cylinder Rod End Connection
A
Lock Lever Installation
1 X 6 1/2 G8 BOLT
RAM CLEVIS EAR
LOCK
LEVER
32
LOCK
LEVER
1 G8 UNITORQUE NUT
LEVER BUSHING
(1 1/2 OD X 1 ID X 1 1/16 LG)
