2.5 TOOLING INSTALLATION

The tooling assemblies can now be connected to the tail section and the tool tension lever.
The tooling is pre-assembled to the bearing housings. The tooling should be aligned between
the tail and the tool tension lever. The correct tooling assembly must be used on the correct
side and these must be facing the correct direction. Keep these three things in mind;
1. The tooling section, which goes to the left side, is slightly longer than the
right side section.
2. The tooling end at the tail is connected to the bearing housing using two U-
bolts, which have a kinks near the squared end.
3. The tines themselves should point slightly toward the rear.

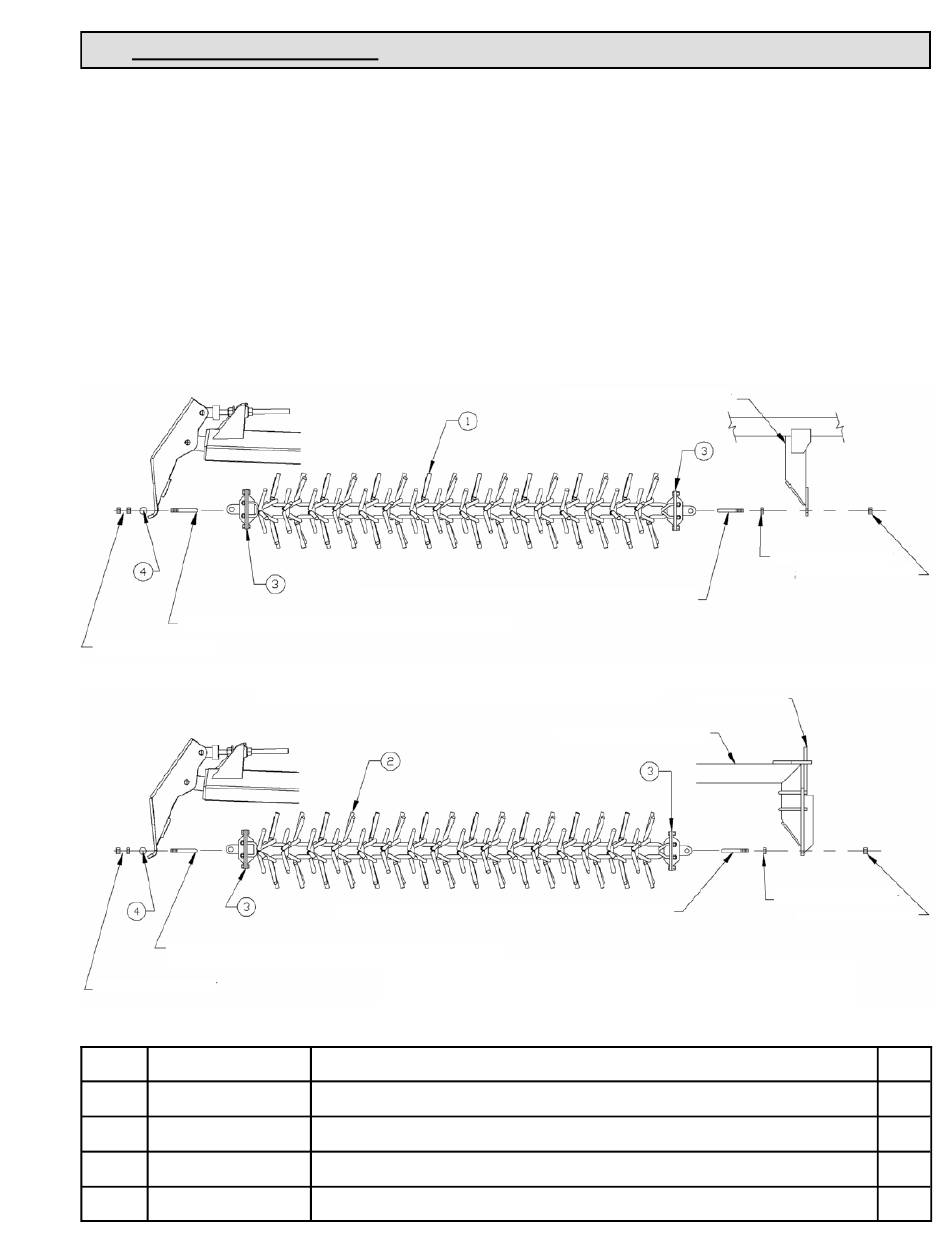

1 @ 3/4" X 4 7/8" X 2 3/4" WD ROUND U-BOLT
4 @ 3/4" G8 NUT
1 @ 3/4" X 4 7/8" X 2 3/4" WD ROUND U-BOLT
4 @ 3/4" G8 NUT
ITEM PART NUMBER
1 N/A
2 N/A
3 N/A
4 71-41500-00
45' Rotary Harrow
1 @ 3/4" X 4 7/8" X 2 3/4" WD ROUND U-BOLT
NOTE: USE LOCK-TITE ON ALL NUTS
1 @ 3/4" X 4 7/8" X 2 3/4" WD ROUND U-BOLT
TOOLING ASSEMLBY, RIGHT SIDE (SHORT)
TOOLING ASSEMLBY, LEFT SIDE (LONG)
BEARING ASSEMBLY
BEARING HOUSING MOUNT SHAFT
TAIL FRONT DOWN-POST
TAIL REAR DOWN-POST
DESCRIPTION
23
2 @ 3/4" G8 NUT
2 @ 3/4" G8 NUT
REAR ADJUST
2 @ 3/4" G8 NUT
2 @ 3/4" G8 NUT
SEPT 2008
QTY
1
1
4
2
